Druck

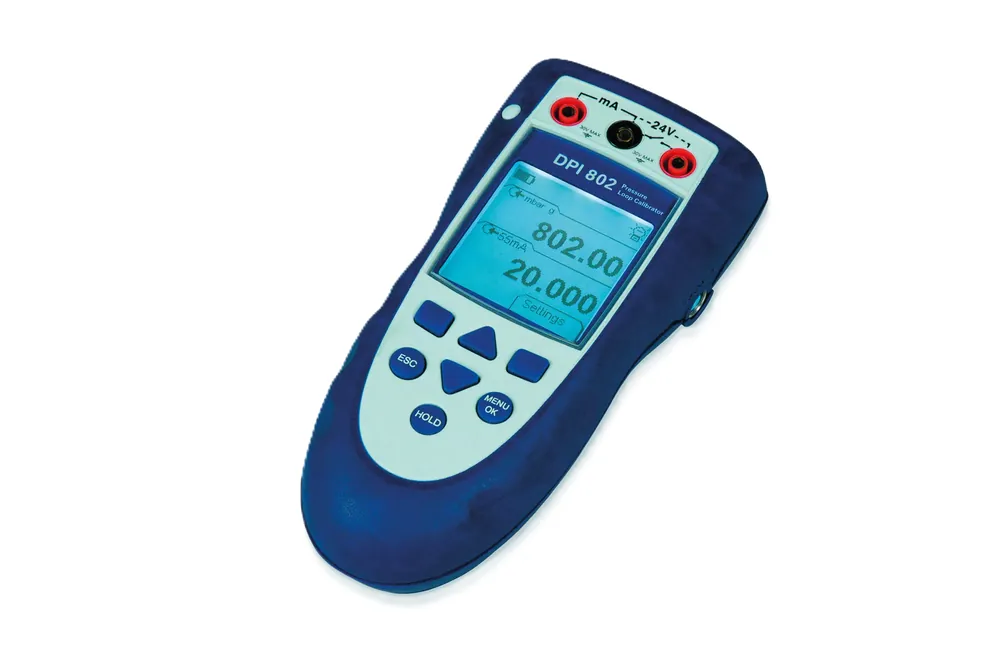

Druck DPI 802 Pressure Indicator and Loop Calibrator
Quote on request
No online payment · add lines to RFQ BOM
DPI 802 loop calibrator; pressure + mA; IDOS modules. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Pressure 25 mbar to 700 bar (10 inH2O to 10,000 psi); single/dual range; IDOS UPM modules
Accuracy
0.05% FS total (standard) or 0.01% FS precision (premium modules); mA measure per datasheet
Output
mA measure/source; 24 V loop power; switch test; selectable 250 Ω HART resistor (DPI 802 loop calibrator functions)
Supply
Internal batteries; 24 V loop power sourced for transmitters
Process connection
Pressure port / IDOS universal pressure modules
Wetted parts
Per pressure module sensor construction
Fits combined pressure and loop work where you need a Druck DPI 802 handheld calibrator with mA measure/source, 24 V loop power, HART resistor, and IDOS pressure modules.
Key advantages
- Pressure — 25 mbar to 700 bar class; single/dual range; IDOS UPM modules
- Accuracy — 0.05% FS total standard or 0.01% FS precision modules
- Loop — mA measure/source; 24 V loop power; switch test; selectable 250 Ω HART resistor
- Display — Large backlit menu-driven display
- Construction — Rugged elastomer-protected handheld
Typical applications
- Pressure transmitter calibration with simultaneous mA.
- HART loop resistor support during field work.
- Switch test and leak-test routines.
Selection guide
- Module ranges — Fixed vs IDOS; accuracy class
- Loop functions — Measure/source/24 V/HART resistor
- Dual range — Yes/no
- Accessories — Pumps, hoses, IDOS modules
Common mistakes
- Assuming a hand pump is included.
- Skipping module accuracy class on the RFQ.
- Ordering DPI 800 when DPI 802 loop features are required.
When to RFQ / what to tell us
- Pressure module ranges and accuracy class.
- Loop/HART needs; accessories.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 18308 |
| Brand | Druck |
| Model | DPI 802 Pressure Indicator and Loop Calibrator |
| Product type | Pressure / Loop Calibrator |
| Measuring range | Pressure 25 mbar to 700 bar (10 inH2O to 10,000 psi); single/dual range; IDOS UPM modules |
| Accuracy | 0.05% FS total (standard) or 0.01% FS precision (premium modules); mA measure per datasheet |
| Output / loop | mA measure/source; 24 V loop power; switch test; selectable 250 Ω HART resistor (DPI 802 loop calibrator functions) |
| Supply | Internal batteries; 24 V loop power sourced for transmitters |
| Process connection | Pressure port / IDOS universal pressure modules |
| Communication | HART® loop resistor support; IDOS plug-and-play modules |
| Display | Large backlit menu-driven display |
| Housing | Rugged handheld elastomer-protected enclosure |
Documents
FAQ
Q: Does DPI 802 power transmitters? A: Yes — 24 V loop power for transmitters (see datasheet limits).
Q: HART resistor? A: Selectable 250 Ω HART loop resistor supported.
Q: What should I send for a quote? A: Ranges/accuracy, loop needs, accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Pressure 25 mbar to 700 bar (10 inH2O to 10,000 psi); single/dual range; IDOS UPM modules |
| Accuracy | 0.05% FS total (standard) or 0.01% FS precision (premium modules); mA measure per datasheet |
| Output | mA measure/source; 24 V loop power; switch test; selectable 250 Ω HART resistor (DPI 802 loop calibrator functions) |
| Supply | Internal batteries; 24 V loop power sourced for transmitters |
| Process connection | Pressure port / IDOS universal pressure modules |
| Wetted parts | Per pressure module sensor construction |
| Housing | Rugged handheld elastomer-protected enclosure |
| Protection | Robust/weatherproof handheld (see datasheet environmental) |
| Media temperature | Pressure media limits per module |
| Ambient temperature | Operating per Druck DPI 800/802 datasheet |
| Display | Large backlit menu-driven display |
| Communication | HART® loop resistor support; IDOS plug-and-play modules |
| Approvals | CE and regional markings per datasheet |
| Notes | Specs from Druck DPI 800/802 Datasheet English (druck.com 2026) + K0335 instruction manual. SKU focuses on DPI 802 loop calibrator variant. |
