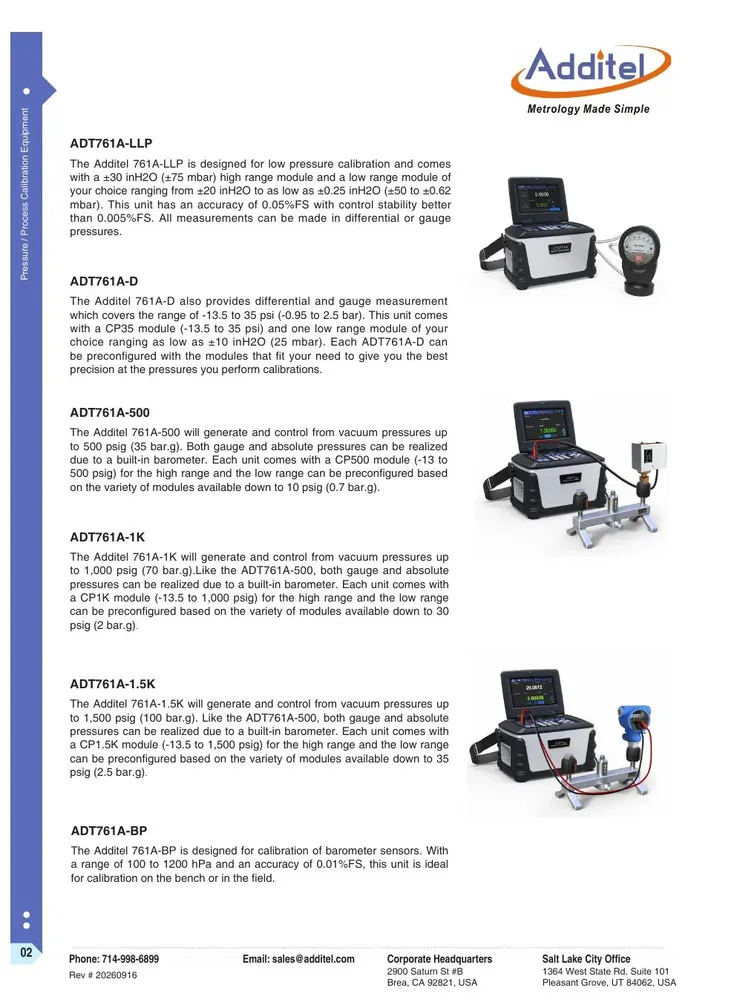

Additel ADT 761A Automated Pressure Calibrator
Quote on request
No online payment · add lines to RFQ BOM
Additel ADT 761A: automated pressure calibrator; to 1500 psig; 0.01% FS class; HART. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Up to 1,500 psig (100 bar) depending on model (LLP/D/500/1K/1.5K/BP variants)
Accuracy
0.01% FS class models available (module/model dependent)
Output
Automated pressure control; HART/Profibus communications; document/data logging
Supply
Internal rechargeable battery / AC charger per datasheet
Process connection
Built-in pump/manifold ports; two external pressure-module inputs
Wetted parts
Per internal/external pressure module construction
Fits automated pressure calibration where you need an Additel ADT 761A. Automated calibrator family to about 1,500 psig (100 bar) depending on model, with 0.01% FS class options, built-in pump/manifold ports, two external pressure-module inputs, HART/Profibus communications and document/data logging on internal battery/AC charger.
Key advantages
- Range — Up to ~1,500 psig (model dependent)
- Accuracy — 0.01% FS class models available
- Control — Automated pressure control
- Comms — HART / Profibus; documenting
- Ports — Built-in pump/manifold; 2 external modules
Typical applications
- Field pressure calibration.
- Transmitter documenting.
- Lab automated pressure.
Selection guide
- LLP/D/500/1K/1.5K/BP model
- Modules
- HART need
Common mistakes
- Wrong range model.
- Ignoring module accuracy.
- Contaminated manifold.
When to RFQ / what to tell us
- Model/modules.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47147 |
| Brand | Additel |
| Model | ADT 761A |
| Product type | Pressure Calibrator |
| Measuring range | Up to 1,500 psig (100 bar) depending on model (LLP/D/500/1K/1.5K/BP variants) |
| Accuracy | 0.01% FS class models available (module/model dependent) |
| Output signal | Automated pressure control; HART/Profibus communications; document/data logging |
| Supply voltage | Internal rechargeable battery / AC charger per datasheet |
| Process connection | Built-in pump/manifold ports; two external pressure-module inputs |
| Wetted materials | Per internal/external pressure module construction |
Documents
FAQ
Q: Max class? A: About 1,500 psig depending on model.
Q: Accuracy class? A: 0.01% FS models available.
Q: What should I send for a quote? A: Model/modules, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Up to 1,500 psig (100 bar) depending on model (LLP/D/500/1K/1.5K/BP variants) |
| Accuracy | 0.01% FS class models available (module/model dependent) |
| Output | Automated pressure control; HART/Profibus communications; document/data logging |
| Supply | Internal rechargeable battery / AC charger per datasheet |
| Process connection | Built-in pump/manifold ports; two external pressure-module inputs |
| Wetted parts | Per internal/external pressure module construction |
| Housing | Portable calibrator enclosure |
| Protection | Portable field calibrator (see datasheet environmental) |
| Ambient temperature | Per ADT761A datasheet operating table |
| Display | Color touchscreen user interface |
| Communication | HART, Profibus; Wi-Fi / LAN / Bluetooth / USB / Ethernet |
| Approvals | CE and regional markings per datasheet/order |
| Notes | Specs from Additel ADT761A Automated Pressure Calibrators datasheet (additel.com). Portable self-contained automated pneumatic calibrator with removable modules. |
| Control Stability | 0.003% FS typical control stability (OEM datasheet) |
