Fluke

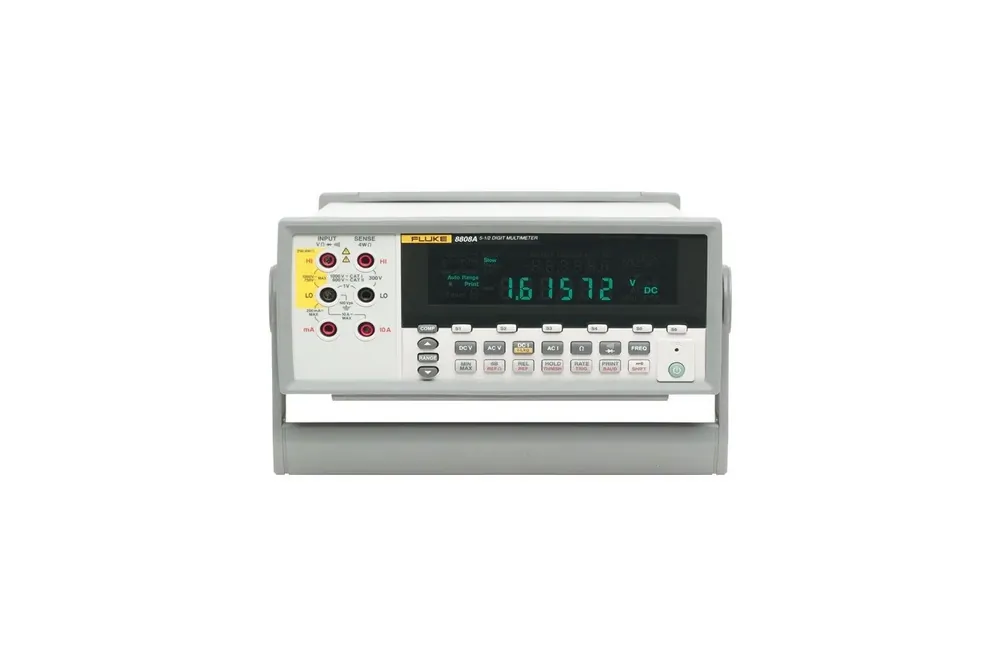

Fluke 8808A Digital Multimeter
Quote on request
No online payment · add lines to RFQ BOM
5.5-digit bench DMM; 0.015% DC V; RS-232/USB. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
VFD dual-reading multi-segment display
Resolution
5.5 digit
Basic Vdc Accuracy
0.01% (extended specs) / 0.015% (product page class)
Vdc Range
200 mV to 1000 V; max resolution 1 µV
Vac Range
200 mV to 750 V; 20 Hz to 100 kHz
Resistance
200 Ω to 100 MΩ; 2×4-wire ohms; 1 mΩ max resolution
Fits bench precision metering where you need a Fluke 8808A 5.5-digit DMM covering 200 mV–1000 V DC with ±(0.015% reading + 0.003% range) accuracy and RS-232/USB connectivity.
Key advantages
- Digits — 5.5-digit bench multimeter
- DC V — 200 mV to 1000 V
- Accuracy — ±(0.015% of reading + 0.003% of range)
- I/O — RS-232; USB via adapter
- Functions — V, I, Ω, continuity, diode; dual display
Typical applications
- Production bench functional test.
- Calibration-support DMM.
- Automated RS-232/USB measurements.
Selection guide
- Digits/accuracy — 5.5-digit class enough?
- Interface — RS-232 vs USB adapter
- Current shunts/ranges — DUT needs
- Bench footprint — Lab layout
Common mistakes
- Expecting 6.5-digit metrology class.
- Missing USB adapter when PC logging.
- Wrong input terminals for current.
When to RFQ / what to tell us
- Interface adapters; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 30282 |
| Brand | Fluke |
| Model | 8808A |
| Product type | Bench Multimeter |
| Type | 5.5-digit bench digital multimeter |
| DC voltage | 200 mV to 1000 V DC |
| Accuracy DC V | ±(0.015% of reading + 0.003% of range) |
| Interfaces | RS-232; USB via adapter |
| Functions | V, I, Ω, continuity, diode; dual display |
| Form factor | Bench instrument |
Documents
FAQ
Q: Accuracy? A: ±(0.015% of reading + 0.003% of range) on DC V.
Q: Interface? A: RS-232; USB via adapter.
Q: What should I send for a quote? A: Accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | VFD dual-reading multi-segment display |
| Resolution | 5.5 digit |
| Basic Vdc Accuracy | 0.01% (extended specs) / 0.015% (product page class) |
| Vdc Range | 200 mV to 1000 V; max resolution 1 µV |
| Vac Range | 200 mV to 750 V; 20 Hz to 100 kHz |
| Resistance | 200 Ω to 100 MΩ; 2×4-wire ohms; 1 mΩ max resolution |
| Adc Range | 200 µA to 10 A |
| Aac Range | 20 mA to 10 A |
| Frequency | 20 Hz to 1 MHz |
| Functions | Six setup preset buttons; Hi/Lo limit compare Pass/Fail; dB/dBm; Fluke 45 remote emulation |
| Interfaces | RS-232; USB with optional adapter |
| Size Weight | 88 × 217 × 297 mm; 2.1 kg (4.6 lb) |
| Safety | EN 61010-1 / UL 61010-1 / CSA designed compliance |
| Warranty | Three years |
