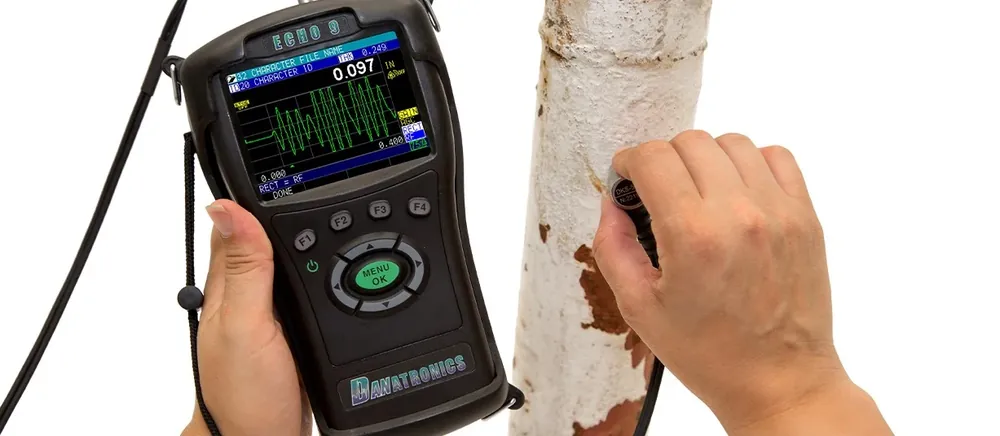

Danatronics ECHO Series Thickness Gage & Flaw Detector
Quote on request
No online payment · add lines to RFQ BOM
ECHO 7/8/9/FD: corrosion/precision/flaw; IP67; color TFT. RFQ model.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
3.5 in TFT 320×240 sunlight-readable color; 60 Hz update
Type
Hand-held ultrasonic corrosion/precision thickness gage and flaw detector platform (ECHO Series)
Models
ECHO 9 (corrosion), ECHO 7 (precision), ECHO 8 (both), ECHO FD (flaw detector)
Package
Designed for IP67; custom splash-proof high-impact housing
Thickness Range
Corrosion ~0.020–23 in steel; precision as thin as ~0.006 in steel
Flaw Bandwidth
0.5–30 MHz (−3 dB); tunable square-wave / spike pulser 1–25 MHz
Fits portable UT thickness and flaw work where you need a Danatronics ECHO Series platform—ECHO 9 corrosion, ECHO 7 precision, ECHO 8 both, or ECHO FD flaw detector—with a sunlight-readable 3.5 in color display and IP67-oriented package.
Key advantages
- Models — ECHO 9 corrosion; ECHO 7 precision; ECHO 8 both; ECHO FD flaw
- Display — 3.5 in TFT 320×240; 60 Hz
- Package — Designed for IP67; high-impact housing
- Thickness — Corrosion ~0.020–23 in steel; precision as thin as ~0.006 in
- Flaw — 0.5–30 MHz (−3 dB); square-wave / spike pulser class
Typical applications
- Corrosion thickness surveys.
- Precision thin-wall gauging.
- Field flaw detection (ECHO FD).
Selection guide
- ECHO 7 vs 8 vs 9 vs FD
- Transducer kit
- A-scan / datalogging options
Common mistakes
- Buying corrosion-only when precision thin-wall is required.
- Wrong probe for coated surfaces.
- Ignoring battery/charging plan for long surveys.
When to RFQ / what to tell us
- Model, transducers.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 35788 |
| Brand | Danatronics |
| Model | ECHO Series Ultrasonic Thickness Gage and Flaw Detector |
| Product type | Ultrasonic Thickness Flaw Detector |
| Type | Hand-held ultrasonic corrosion/precision thickness gage and flaw detector platform (ECHO Series) |
| Models | ECHO 9 (corrosion), ECHO 7 (precision), ECHO 8 (both), ECHO FD (flaw detector) |
| Display | 3.5 in TFT 320×240 sunlight-readable color; 60 Hz update |
| Package | Designed for IP67; custom splash-proof high-impact housing |
| Thickness range | Corrosion ~0.020–23 in steel; precision as thin as ~0.006 in steel |
| Flaw bandwidth | 0.5–30 MHz (−3 dB); tunable square-wave / spike pulser 1–25 MHz |
Documents
FAQ
Q: ECHO 9 vs 7? A: ECHO 9 targets corrosion; ECHO 7 precision; ECHO 8 combines both.
Q: IP rating intent? A: Package designed for IP67.
Q: What should I send for a quote? A: Model/probes, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | 3.5 in TFT 320×240 sunlight-readable color; 60 Hz update |
| Type | Hand-held ultrasonic corrosion/precision thickness gage and flaw detector platform (ECHO Series) |
| Models | ECHO 9 (corrosion), ECHO 7 (precision), ECHO 8 (both), ECHO FD (flaw detector) |
| Package | Designed for IP67; custom splash-proof high-impact housing |
| Thickness Range | Corrosion ~0.020–23 in steel; precision as thin as ~0.006 in steel |
| Flaw Bandwidth | 0.5–30 MHz (−3 dB); tunable square-wave / spike pulser 1–25 MHz |
| Gates | 2 independent gates; DAC / AWS / API 5UE / B-scan (ECHO FD) |
| Battery Life | Up to ~13 hours (ECHO FD internal Li-ion) |
| Memory | 2 GB std microSD expandable to 32 GB + internal memory |
| Weight | Approx. 1.15 lb with internal rechargeable batteries (ECHO FD) |
| Origin | Designed and made in the USA |
