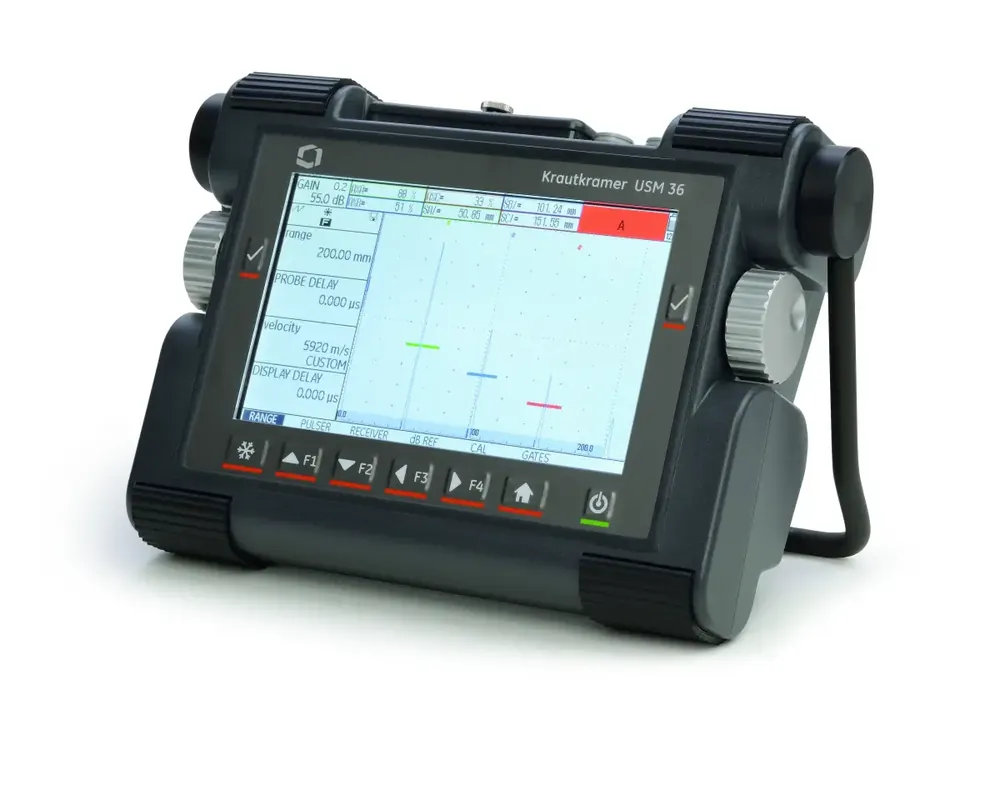

Waygate Technologies USM 36 Ultrasonic Flaw Detector
Quote on request
No online payment · add lines to RFQ BOM
USM 36: 7 in 800×480; 0.5–20 MHz; PRF to 2 kHz; ~13 h; IP66. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Protection
IP66 (brochure/tech family)
Display
7 in diagonal; 800 × 480; active 152.4 × 91.44 mm
Bandwidth
0.5 … 20 MHz class (see tech spec)
Prf
Auto-optimized 15 … 2,000 Hz
Battery
Li-Ion; ~13 hours full charge
Weight
2.2 kg incl. battery
Fits portable ultrasonic flaw detection where you need a Waygate Technologies Krautkramer USM 36—7-inch 800×480 display, about 0.5–20 MHz bandwidth, auto-optimized PRF 15–2,000 Hz, and roughly 13-hour Li-Ion runtime in an IP66-class package.
Key advantages
- Display — 7 in; 800×480
- Range — About 4–14,108 mm longitudinal-wave class
- Bandwidth — 0.5–20 MHz class
- PRF — Auto-optimized 15–2,000 Hz
- Package — ~2.2 kg with battery; IP66 class; ~13 h
Typical applications
- Weld inspection.
- Forging / casting UT.
- Field service flaw detection.
Selection guide
- Probe / wedge
- DAC/TCG options
- Case / battery spare
Common mistakes
- Undersized probe frequency for material thickness.
- Ignoring IP/environment rating.
- No spare battery for long shifts.
When to RFQ / what to tell us
- Probes, options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 36264 |
| Brand | Waygate Technologies |
| Model | USM 36 Ultrasonic Flaw Detector |
| Product type | Ultrasonic Flaw Detector |
| Display | 7 in diagonal; 800 × 480; active 152.4 × 91.44 mm |
| Range | 4 … 14,108 mm (555 in) longitudinal wave |
| Bandwidth | 0.5 … 20 MHz class (see tech spec) |
| PRF | Auto-optimized 15 … 2,000 Hz |
| Battery | Li-Ion; ~13 hours full charge |
| Weight | 2.2 kg incl. battery |
| IP rating | IP66 (brochure/tech family) |
Documents
FAQ
Q: Display size? A: 7-inch, 800×480.
Q: Battery life? A: About 13 hours on a full charge class.
Q: What should I send for a quote? A: Probe/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Protection | IP66 (brochure/tech family) |
| Display | 7 in diagonal; 800 × 480; active 152.4 × 91.44 mm |
| Bandwidth | 0.5 … 20 MHz class (see tech spec) |
| Prf | Auto-optimized 15 … 2,000 Hz |
| Battery | Li-Ion; ~13 hours full charge |
| Weight | 2.2 kg incl. battery |
| Size | 255 × 177 × 100 mm |
| Power Adapter | 100 … 240 VAC, 50/60 Hz |
| Options | DAC, AWS, DGS, square-wave pulser, Phantom-PRF |
