Waygate Technologies

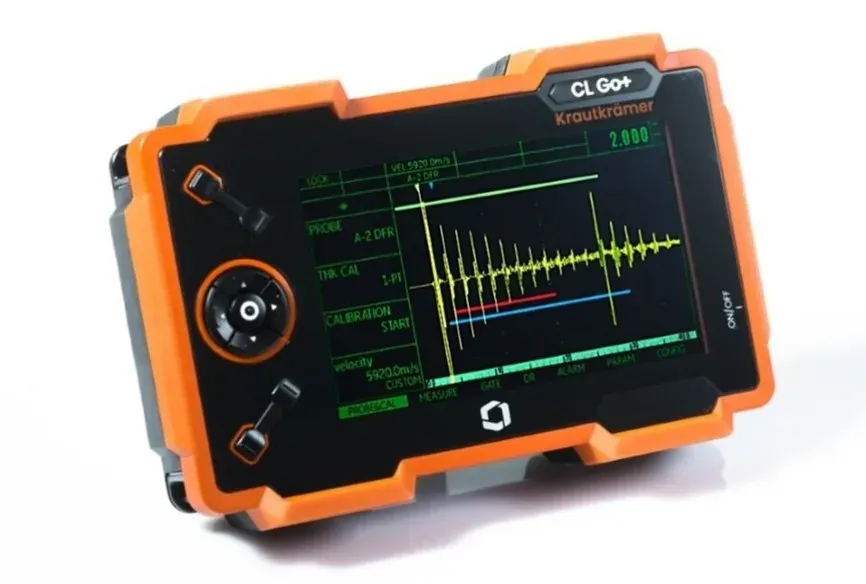

Waygate CL Go+ Ultrasonic Thickness Gauge
Quote on request
No online payment · add lines to RFQ BOM
CL Go+: 5 in; 0.001 mm res; A/B-scan; 850 g; thickness modes. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
5 inch, 800×480 pixels, 108×64.8 mm, ≥200 cd/m²
Resolution Of Readings
0.001 / 0.01 / 0.1 mm selectable (0.0001 / 0.001 / 0.01 in)
Display Modes
Thickness, Velocity, Quality, A-scan, B-scan, MIN/MAX, Difference, Data Recorder
Dimensions
175 × 111 × 50 mm (W × H × D)
Weight
850 g including battery
Protection Class
IP67 (IEC 529); MIL-STD environmental tests
Fits portable ultrasonic thickness and corrosion work where you need a Waygate CL Go+—5-inch 800×480 display, selectable resolution down to 0.001 mm, A-scan/B-scan and data-recorder modes, in an ~850 g handheld package.
Key advantages
- Display — 5 in; 800×480; ≥200 cd/m²
- Resolution — 0.001 / 0.01 / 0.1 mm selectable
- Modes — Thickness, Velocity, A-scan, B-scan, MIN/MAX, Difference, Data Recorder
- Form — 175×111×50 mm; ~850 g with battery
- Platform — CL Go+ handheld UT thickness
Typical applications
- Corrosion thickness surveys.
- Coated/uncoated wall checks.
- Logged thickness grids.
Selection guide
- Transducer
- Data recorder need
- Velocity tables
Common mistakes
- Wrong material velocity.
- Worn dual-element shoes.
- Resolution setting mismatch to procedure.
When to RFQ / what to tell us
- Transducer kit.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 38959 |
| Brand | Waygate Technologies |
| Model | CL Go+ Ultrasonic Thickness Gauge |
| Product type | Ultrasonic Thickness Gauge |
| Display | 5 inch, 800×480 pixels, 108×64.8 mm, ≥200 cd/m² |
| Resolution of readings | 0.001 / 0.01 / 0.1 mm selectable (0.0001 / 0.001 / 0.01 in) |
| Display modes | Thickness, Velocity, Quality, A-scan, B-scan, MIN/MAX, Difference, Data Recorder |
| Dimensions | 175 × 111 × 50 mm (W × H × D) |
| Weight | 850 g including battery |
Documents
FAQ
Q: Finest resolution? A: 0.001 mm selectable.
Q: B-scan? A: Yes — B-scan among display modes.
Q: What should I send for a quote? A: Transducer/quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | 5 inch, 800×480 pixels, 108×64.8 mm, ≥200 cd/m² |
| Resolution Of Readings | 0.001 / 0.01 / 0.1 mm selectable (0.0001 / 0.001 / 0.01 in) |
| Display Modes | Thickness, Velocity, Quality, A-scan, B-scan, MIN/MAX, Difference, Data Recorder |
| Dimensions | 175 × 111 × 50 mm (W × H × D) |
| Weight | 850 g including battery |
| Protection Class | IP67 (IEC 529); MIL-STD environmental tests |
| Operating Temperature | 0…55 °C |
| Battery | Li-Ion; ~6 h operating time; 100–240 VAC charger |
| Probe Connectors | 2 × LEMO-00 with reverse-polarity protection |
| Pulser | Square-wave; 120 V or 250 V auto-matched to probe |
| Receiver Gain | 110 dB dynamic range with AGC |
| Data Capacity | Up to 100,000 measurements per SD-card file (up to 32 GB) |
