GF Signet

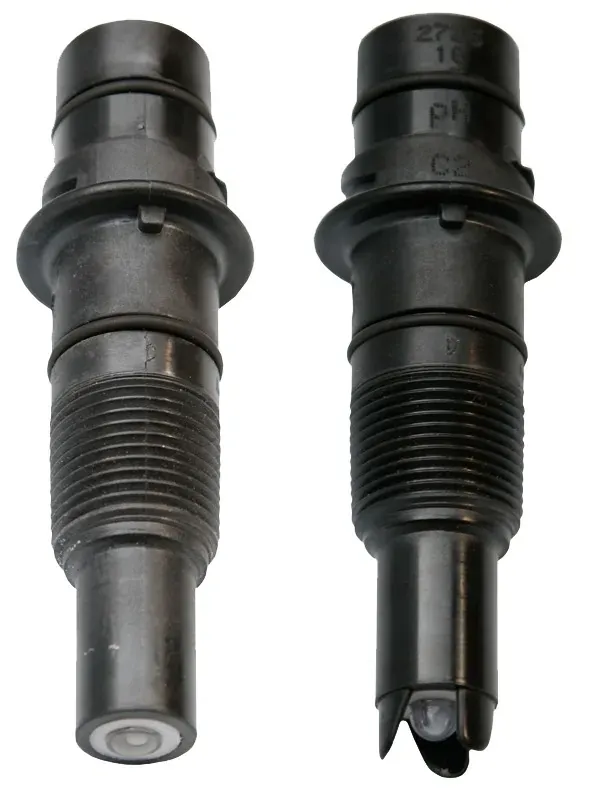

GF Signet 2734-2736 pH/ORP Electrodes
Quote on request
No online payment · add lines to RFQ BOM
Signet 2734/2736 pH; 2735 ORP; DryLoc; 0–14 pH; ±2000 mV. RFQ model.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Process connection
¾ in. NPT or ISO 7/1-R ¾; GF fittings DN15–DN100 (½–4 in.)
Wetted parts
PPS body, glass, PTFE junction, FKM; ORP adds platinum
Type
Industrial DryLoc pH/ORP electrodes (Signet 2734 flat pH / 2736 bulb pH / 2735 flat ORP)
Ph Range
0 to 14 pH
Orp Range
±2000 mV
Efficiency
>95% @ 25 °C (new electrode slope vs theoretical)
Fits industrial pH and ORP sensing where you need GF Signet DryLoc electrodes—2734 flat pH, 2736 bulb pH (0–14 pH), or 2735 flat ORP (±2000 mV) with >95% efficiency at 25 °C for new electrode slope versus theoretical.
Key advantages
- Models — 2734 flat pH / 2736 bulb pH / 2735 flat ORP
- pH — 0 to 14 pH
- ORP — ±2000 mV
- Efficiency — >95% @ 25 °C (new electrode)
- Connection — DryLoc industrial electrodes
Typical applications
- Process pH control.
- ORP disinfection loops.
- Water treatment analyzers.
Selection guide
- Flat vs bulb
- pH vs ORP
- Transmitter / DryLoc cable
Common mistakes
- Dry storage of pH glass.
- Wrong temp compensation.
- ORP vs pH mix-up.
When to RFQ / what to tell us
- Model, cable, transmitter.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 41865 |
| Brand | GF Signet |
| Model | Signet 2734-2736 pH/ORP Electrodes |
| Product type | pH/ORP Electrode |
| Type | Industrial DryLoc pH/ORP electrodes (Signet 2734 flat pH / 2736 bulb pH / 2735 flat ORP) |
| pH range | 0 to 14 pH |
| ORP range | ±2000 mV |
| Efficiency | >95% @ 25 °C (new electrode slope vs theoretical) |
Documents
FAQ
Q: pH range? A: 0 to 14 pH.
Q: ORP range? A: ±2000 mV.
Q: What should I send for a quote? A: Model/cable, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Process connection | ¾ in. NPT or ISO 7/1-R ¾; GF fittings DN15–DN100 (½–4 in.) |
| Wetted parts | PPS body, glass, PTFE junction, FKM; ORP adds platinum |
| Type | Industrial DryLoc pH/ORP electrodes (Signet 2734 flat pH / 2736 bulb pH / 2735 flat ORP) |
| Ph Range | 0 to 14 pH |
| Orp Range | ±2000 mV |
| Efficiency | >95% @ 25 °C (new electrode slope vs theoretical) |
| Temperature Sensor | Pt1000 for 2751 Smart Sensor Electronics / 9900 / 9950 |
| Hf Option | 3-2734-HF / 3-2736-HF for trace HF ≤2% at pH ≤6 |
| Connector | Patented DryLoc gold-plated contacts to 2751 electronics |
| Document | Type 2734-2736 datasheet Rev I + DryLoc pH/ORP electrodes manual |
| Application | Water/wastewater, neutralization, plating, scrubbers, cooling towers, process control |
| Model Codes | 3-2734-00/-01; 3-2736-00/-01; HF variants; 3-2735-60/-61 ORP |
