AEMC

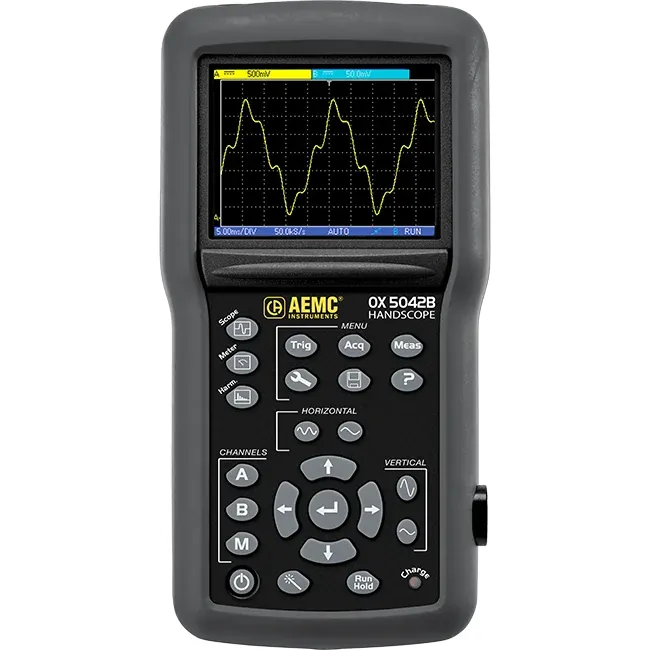

AEMC OX5042 Oscilloscope
Quote on request
No online payment · add lines to RFQ BOM
Handscope 40 MHz isolated 2-ch. DMM + harmonics; 600 V CAT III. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
3.5 in color TFT LCD 320x240 with LED backlight; IP54
Type
Handheld 3-in-1 oscilloscope / multimeter / harmonic analyzer (OX 5042B Handscope)
Bandwidth
40 MHz; 2 fully isolated channels rated 600 V CAT III
Vertical
5 mV to 200 V/div; input impedance about 1 MOhm
Sampling
2 GS/s ETS class; memory depth 2500 pts/channel
Multimeter
Two 8000-count TRMS channels; power measurements
Fits field electrical troubleshooting where you need an AEMC OX5042B Handscope with two fully isolated 40 MHz channels, TRMS multimeter, and harmonics analysis.
Key advantages
- 3-in-1 Handscope — Handheld oscilloscope / multimeter / harmonic analyzer (OX 5042B)
- Isolated channels — 40 MHz; 2 fully isolated channels rated 600 V CAT III
- Sampling / memory — 2 GS/s ETS class; memory depth 2500 pts/channel
- Multimeter + harmonics — Two 8000-count TRMS channels; individual harmonics to 31st
- Rugged / power — 3.5 in color TFT IP54; six AA NiMH; typical battery life up to about 8.5 h
Typical applications
- Isolated-channel waveform checks on industrial electrical systems.
- Combined scope + TRMS meter + harmonics service work.
- Portable kits needing 600 V CAT III Handscope class.
Selection guide
- Model — OX 5042B Handscope
- Vertical — 5 mV to 200 V/div; about 1 MOhm input
- Recording — 2 MB; graphic recordings of 2700 measurements (5 min to 1 month)
- Kit / probes — confirm on RFQ
Common mistakes
- Ignoring isolation/CAT rating vs the circuit under test.
- Expecting deep lab-scope memory — 2500 pts/channel class.
- Assuming line-powered continuous use — battery/NiMH runtime is the field model.
When to RFQ / what to tell us
- Kit/probe needs.
- Quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 12350 |
| Brand | AEMC |
| Model | OX5042 Oscilloscope |
| Product type | Portable Oscilloscope |
| Type | Handheld 3-in-1 oscilloscope / multimeter / harmonic analyzer (OX 5042B Handscope) |
| Bandwidth | 40 MHz; 2 fully isolated channels rated 600 V CAT III |
| Vertical | 5 mV to 200 V/div; input impedance about 1 MOhm |
| Sampling | 2 GS/s ETS class; memory depth 2500 pts/channel |
| Display | 3.5 in color TFT LCD 320x240 with LED backlight; IP54 |
| Multimeter | Two 8000-count TRMS channels; power measurements |
| Harmonics | Individual harmonics to 31st; fundamental 40-450 Hz |
| Storage | 2 MB recording; graphic recordings of 2700 measurements (5 min to 1 month) |
| Power | Six AA NiMH rechargeable; typical battery life up to about 8.5 h |
Documents
FAQ
Q: Bandwidth and isolation? A: 40 MHz; 2 fully isolated channels rated 600 V CAT III.
Q: Harmonics? A: Individual harmonics to 31st; fundamental 40–450 Hz.
Q: What should I send for a quote? A: Kit needs, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | 3.5 in color TFT LCD 320x240 with LED backlight; IP54 |
| Type | Handheld 3-in-1 oscilloscope / multimeter / harmonic analyzer (OX 5042B Handscope) |
| Bandwidth | 40 MHz; 2 fully isolated channels rated 600 V CAT III |
| Vertical | 5 mV to 200 V/div; input impedance about 1 MOhm |
| Sampling | 2 GS/s ETS class; memory depth 2500 pts/channel |
| Multimeter | Two 8000-count TRMS channels; power measurements |
| Harmonics | Individual harmonics to 31st; fundamental 40-450 Hz |
| Storage | 2 MB recording; graphic recordings of 2700 measurements (5 min to 1 month) |
| Power | Six AA NiMH rechargeable; typical battery life up to about 8.5 h |
| Document | AEMC Handscope OX 5042B datasheet 2150-21 |
