Michell Instruments

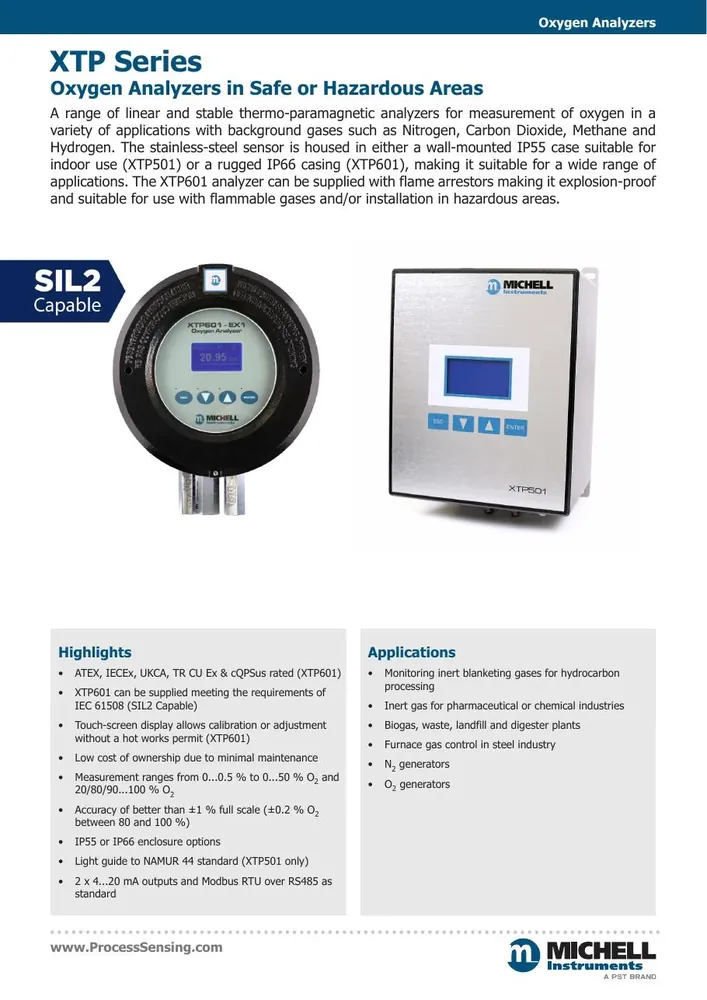

Michell XTP601 Oxygen Analyzer
Quote on request
No online payment · add lines to RFQ BOM
Michell XTP601: O₂ analyzer; 0–0.5% to 0–50%; suppressed spans. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
< ±1 % of range or ±0.02 % O₂ (whichever greater); suppressed-zero class ±0.2 % O₂ or ±1 % of range
Wetted parts
316L stainless steel, borosilicate glass, platinum, O-rings (Viton/Silicone/Ekraz options)
Hazardous area
ATEX/IECEx etc. Ex variants; SIL2 capable (OEM literature)
Technology
Thermo-paramagnetic oxygen measurement
Measurement Ranges
From 0…0.5 % to 0…50 % O₂ and suppressed-zero 20/80/90…100 % O₂ (factory calibrated to ordered range)
Repeatability
±0.2 % of range or ±0.02 % O₂
Fits continuous oxygen measurement in process gases where you need a Michell Instruments XTP601—oxygen analyzer with selectable spans from 0–0.5% to 0–50% O₂ plus suppressed ranges such as 20–100%, 80–100% and 90–100%.
Key advantages
- Measurand — Oxygen concentration
- Spans — 0–0.5% to 0–50% O₂ selectable
- Suppressed — 20–100 / 80–100 / 90–100% class
- Form — Process oxygen analyzer
- Platform — Michell XTP601
Typical applications
- Process O₂ monitoring.
- Inerting / blanketing.
- Combustion-related O₂.
Selection guide
- Span choice
- Gas compatibility
- Sample conditioning
Common mistakes
- Wrong suppressed span.
- Moisture without prep.
- Ignoring sample flow.
When to RFQ / what to tell us
- Span/gas matrix.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 42633 |
| Brand | Michell Instruments |
| Model | XTP601 |
| Product type | Oxygen Analyzer |
| Type | Paramagnetic / oxygen analyzer (XTP601) |
| Range | Selectable 0–0.5% to 0–50% O₂; suppressed 20–100/80–100/90–100% |
| Measurement type | gas |
| Platform | Michell XTP601 |
Documents
FAQ
Q: Spans? A: 0–0.5% to 0–50% O₂; suppressed high ranges available.
Q: Platform? A: Michell XTP601.
Q: What should I send for a quote? A: Span/gas, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | < ±1 % of range or ±0.02 % O₂ (whichever greater); suppressed-zero class ±0.2 % O₂ or ±1 % of range |
| Wetted parts | 316L stainless steel, borosilicate glass, platinum, O-rings (Viton/Silicone/Ekraz options) |
| Hazardous area | ATEX/IECEx etc. Ex variants; SIL2 capable (OEM literature) |
| Technology | Thermo-paramagnetic oxygen measurement |
| Measurement Ranges | From 0…0.5 % to 0…50 % O₂ and suppressed-zero 20/80/90…100 % O₂ (factory calibrated to ordered range) |
| Repeatability | ±0.2 % of range or ±0.02 % O₂ |
| Sample Flow Gp | 100…500 ml/min (0.25…1.0 scfh) general purpose |
| Sample Flow Ex | 270…330 ml/min (0.57…0.7 scfh) Ex version |
| Sample Pressure | 0.75…2 BarA (calibrate at operating pressure) |
| Sample Gas | Non-condensing sample with particles <3 μm |
| Outputs | Dual 4–20 mA; Modbus RTU (RS485); concentration alarms |
| Ingress Protection | IP66 / NEMA 4X (XTP601); IP55 (XTP501 indoor) |
| Dimensions Xtp601 | 234 × 234 × 172 mm |
| Sample System Option | Configurable Michell PS601 sample conditioning systems available for process integration |
