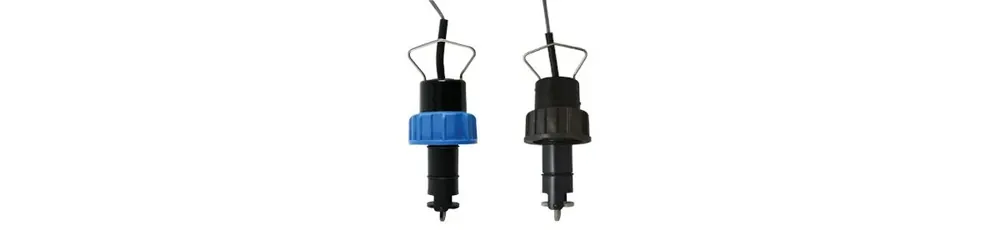

GF Signet 2536 Rotor-X Paddlewheel Flow Sensor
Product
Image unavailable
Image unavailable
Georg Fischer / GF Signet

GF Signet 2536 Rotor-X Paddlewheel Flow Sensor

SKU · 18715 · 2536 Rotor-X · Brand: Georg Fischer / GF Signet
Available
Quote on request
No online payment · add lines to RFQ BOM

Open-collector paddlewheel; 0.1–6 m/s; 5–24 VDC. RFQ + selection help.

Download datasheet PDF

RFQ cart holds BOM lines only. Submit for engineering quote.

Key parameters

Measuring range
0.1 to 6 m/s (0.3 to 20 ft/s)
Output
Open collector, sinking 10 mA max.
Supply
5 to 24 VDC ±10%, regulated
Wetted parts
PP, PVDF or PVC body; FKM O-rings (EPDM/FFKM opt.); PVDF rotor
Pipe Size Range
DN15 to DN900 (½ to 36 in.); PVC body DN15–DN100
Linearity
±1% of max. range @ 25°C
Download datasheet PDF

Fits full-pipe liquid flow sensing where you need a GF Signet 2536 Rotor-X open-collector paddlewheel sensor for 0.1–6 m/s with 5–24 VDC supply and Signet fittings.

Key advantages

  • Range — 0.1 to 6 m/s (0.3 to 20 ft/s); DN15–DN900 (PVC body DN15–DN100)
  • Output — Open collector, sinking 10 mA max; ~49 Hz per m/s
  • Supply — 5 to 24 VDC ±10%, regulated
  • Performance — Linearity ±1% / repeatability ±0.5% of max range @ 25 °C; 66:1 turndown
  • Materials — PP, PVDF or PVC body; PVDF rotor; FKM O-rings (EPDM/FFKM opt.)

Typical applications

  • PLC/discrete frequency inputs needing open-collector paddlewheel signals.
  • Lower-velocity flows than 515’s 0.3 m/s minimum.
  • Signet fitting installs across DN15–DN900.

Selection guide

  • Body — PP vs PVDF vs PVC (PVC temp 0–50 °C)
  • DN / fitting — Match immersion length
  • Supply / input type — 5–24 VDC open-collector sinking
  • Cable — 7.6 m standard; extendable to 305 m

Common mistakes

  • Confusing 2536 (powered open-collector) with 515 (self-powered sine).
  • Using PVC body above 50 °C.
  • Partially filled pipe installs.

When to RFQ / what to tell us

  1. Fluid, DN, velocity, T/P.
  2. Body material; fitting; cable length.
  3. Quantity and ship-to.

Request a Quote · Get selection help

Specs

SpecValue
SKU18715
BrandGeorg Fischer / GF Signet
ModelGF Signet 2536 Rotor-X Paddle Wheel Flow Sensor
Product typePaddlewheel Flow Sensor
Measuring range0.1 to 6 m/s (0.3 to 20 ft/s)
Pipe size rangeDN15 to DN900 (½ to 36 in.); PVC body DN15–DN100
Linearity±1% of max. range @ 25°C
Repeatability±0.5% of max. range @ 25°C
Output signalOpen collector, sinking 10 mA max.
Supply5 to 24 VDC ±10%, regulated
Frequency49 Hz per m/s nominal (15 Hz per ft/s)
Wetted materialsPP, PVDF or PVC body; FKM O-rings (EPDM/FFKM opt.); PVDF rotor
Operating temperaturePP/PVDF −18 to 85°C; PVC 0 to 50°C
Max pressurePP 12.5 bar @ 20°C; PVDF 14 bar @ 20°C; PVC 12.5 bar @ 20°C
Cable7.6 m (25 ft) 22 AWG shielded twisted pair; extendable to 305 m
Turndown66:1

Documents

FAQ

Q: How is 2536 powered? A: 5 to 24 VDC ±10% regulated; open-collector sinking output.

Q: Minimum velocity? A: 0.1 m/s (0.3 ft/s).

Q: What should I send for a quote? A: Fluid/DN/materials, fitting, quantity, ship-to.

Links

ParameterValue
Measuring range0.1 to 6 m/s (0.3 to 20 ft/s)
OutputOpen collector, sinking 10 mA max.
Supply5 to 24 VDC ±10%, regulated
Wetted partsPP, PVDF or PVC body; FKM O-rings (EPDM/FFKM opt.); PVDF rotor
Pipe Size RangeDN15 to DN900 (½ to 36 in.); PVC body DN15–DN100
Linearity±1% of max. range @ 25°C
Repeatability±0.5% of max. range @ 25°C
Frequency49 Hz per m/s nominal (15 Hz per ft/s)
Operating TemperaturePP/PVDF −18 to 85°C; PVC 0 to 50°C
Max PressurePP 12.5 bar @ 20°C; PVDF 14 bar @ 20°C; PVC 12.5 bar @ 20°C
Cable7.6 m (25 ft) 22 AWG shielded twisted pair; extendable to 305 m
Turndown66:1
