Flomec GPI

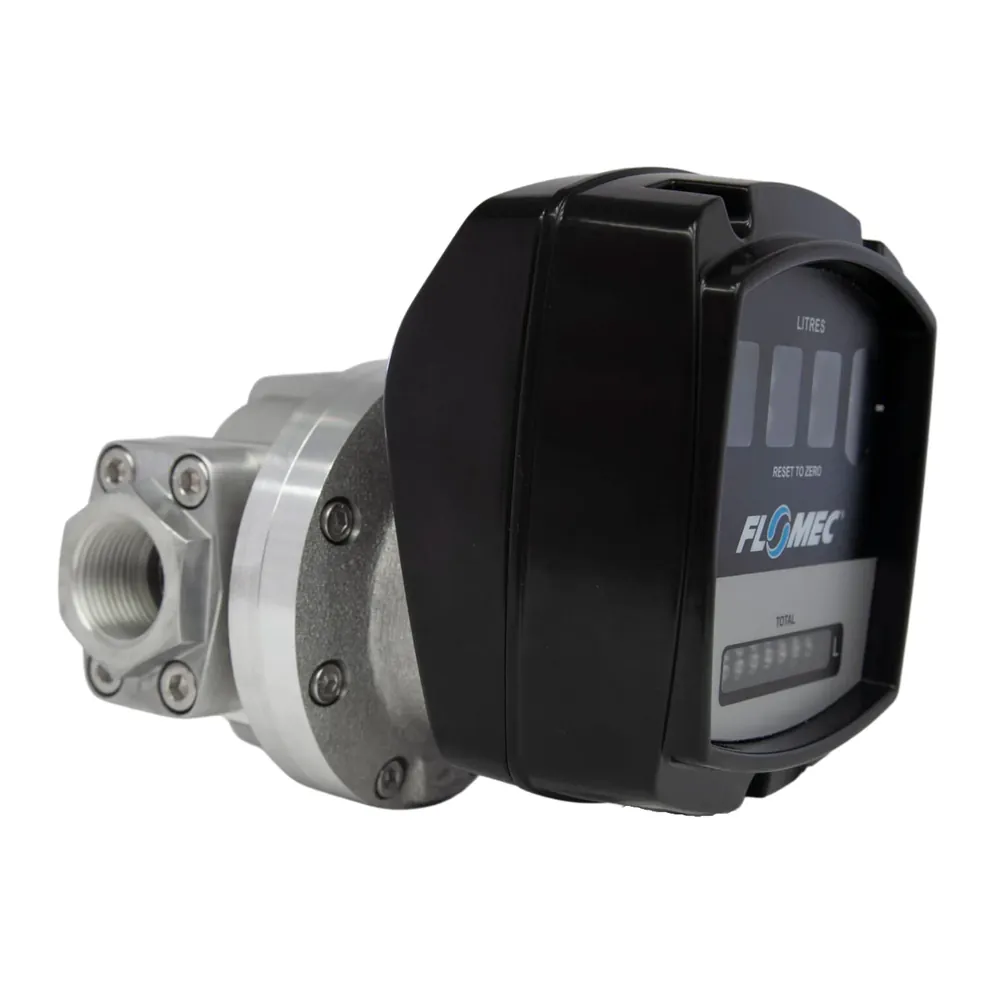

FLOMEC OM Series Oval Gear Pulse/Mechanical Flow Meter
Quote on request
No online payment · add lines to RFQ BOM
FLOMEC OM: oval-gear PD; 1/2–4 in; mech/pulse; ±0.5% class. RFQ size.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy class
High-accuracy oval gear; small-capacity pulse models +/-0.5% of reading class (published sheets)
Type
FLOMEC OM Series oval-gear positive displacement flow meter (mechanical register and/or pulse output)
Technology
Oval gear volumetric measurement for clean liquids
Sizes Mechanical
1/2 in to 4 in (OM015-OM100E); flows about 1-2500 L/min class by size
Registers
M3/M4 4-digit mechanical totalizers (litre or US gallon); optional reset registers
Pulse Options
Reed/Hall pulse, quadrature, RT14/RT40 rate totalisers, 4-20 mA options on electronic OM
Fits clean-liquid volumetric flow where you need a FLOMEC OM Series oval-gear meter—positive-displacement measurement in roughly 1/2 in to 4 in sizes with mechanical registers and/or pulse outputs and high-accuracy class about ±0.5% of reading on small-capacity pulse models.
Key advantages
- Technology — Oval gear PD for clean liquids
- Sizes — About 1/2 in to 4 in (OM015–OM100E class)
- Flow class — Roughly 1–2500 L/min by size
- Registers — M3/M4 4-digit mechanical totalizers; optional pulse
- Accuracy — Small-capacity pulse models ±0.5% of reading class
Typical applications
- Fuel / oil transfer metering.
- Batch totalizing.
- Process liquid PD flow.
Selection guide
- Size / flow
- Mechanical vs pulse
- Fluid viscosity / compatibility
Common mistakes
- Dirty/abrasive fluids.
- Wrong viscosity for oval gear.
- Air in liquid lines.
When to RFQ / what to tell us
- Size, fluid, output.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 39884 |
| Brand | Flomec GPI |
| Model | Pulse / Mechanical Flow Meter |
| Product type | Flow Meter |
| Type | FLOMEC OM Series oval-gear positive displacement flow meter (mechanical register and/or pulse output) |
| Technology | Oval gear volumetric measurement for clean liquids |
| Sizes | 1/2 in to 4 in (OM015-OM100E); flows about 1-2500 L/min class by size |
| Accuracy class | High-accuracy oval gear; small-capacity pulse models +/-0.5% of reading class (published sheets) |
| Registers | M3/M4 4-digit mechanical totalizers (litre or US gallon); optional reset registers |
Documents
FAQ
Q: Technology? A: Oval gear positive displacement.
Q: Outputs? A: Mechanical register and/or pulse.
Q: What should I send for a quote? A: Size/fluid/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy class | High-accuracy oval gear; small-capacity pulse models +/-0.5% of reading class (published sheets) |
| Type | FLOMEC OM Series oval-gear positive displacement flow meter (mechanical register and/or pulse output) |
| Technology | Oval gear volumetric measurement for clean liquids |
| Sizes Mechanical | 1/2 in to 4 in (OM015-OM100E); flows about 1-2500 L/min class by size |
| Registers | M3/M4 4-digit mechanical totalizers (litre or US gallon); optional reset registers |
| Pulse Options | Reed/Hall pulse, quadrature, RT14/RT40 rate totalisers, 4-20 mA options on electronic OM |
| Body Materials | Aluminum or 316L stainless; PPS or SS rotors |
| Installation | No straight-run / flow-conditioning requirement; compact installs |
| Applications | Fuel oils, lubricants, chemicals, purified water, process liquids |
| Document | FLOMEC DS-OM_Mech mechanical datasheet + OM Pulse operation manual (catsy.467) |
