Macnaught

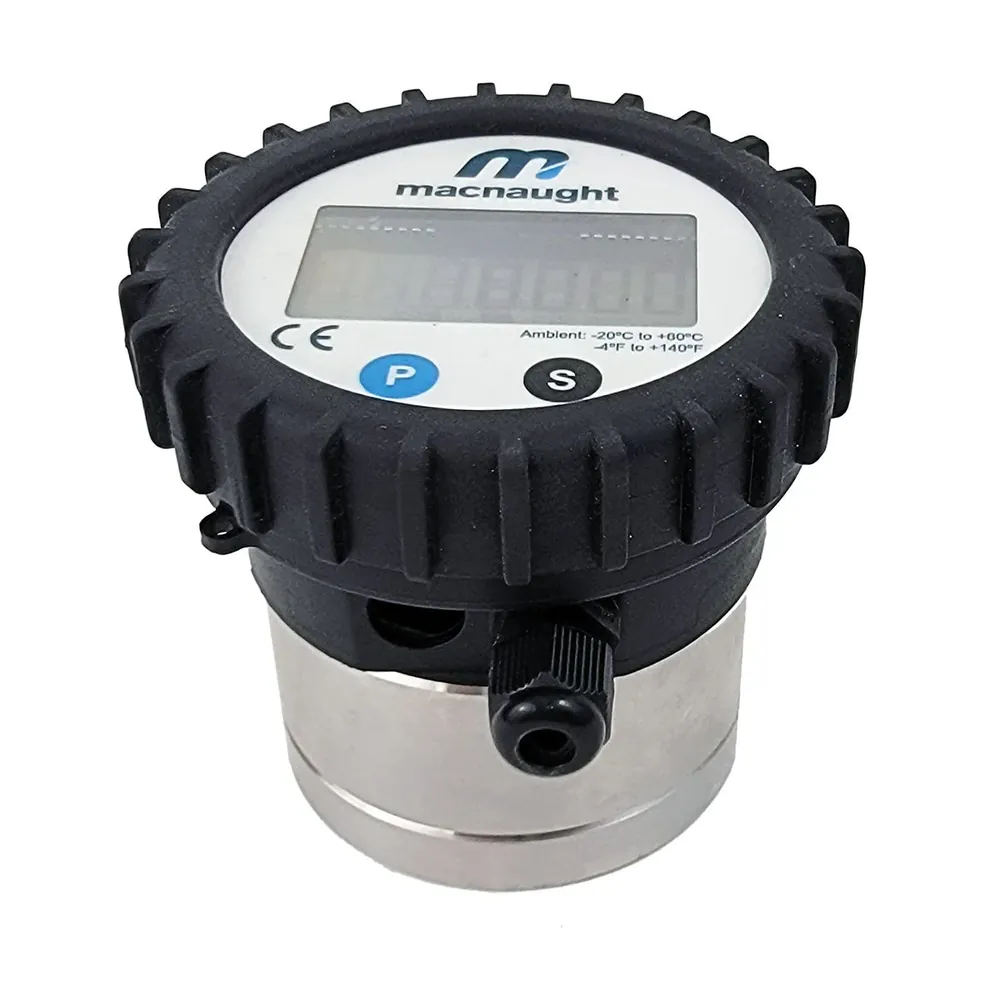

Macnaught MX Series Oval Gear Flow Meter
Quote on request
No online payment · add lines to RFQ BOM
Macnaught MX: oval-gear PD; ±0.5%; ±0.03% rep; ¼–4 in class. RFQ size.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±0.5% of reading (typical MX series)
Type
Industrial oval-gear positive displacement flow meter (MX Series)
Repeatability
±0.03%
Sizes
Approx. ¼ in to 4 in (model dependent; 0.5 LPH–2500 LPM class)
Construction
Billet/cast bodies; modular M-Lock assembly
Outputs
Optional digital display / pulse outputs
Fits industrial liquid volumetric metering where you need a Macnaught MX Series—oval-gear positive-displacement flow meter with about ±0.5% of reading accuracy, ±0.03% repeatability, and sizes roughly ¼ in to 4 in (about 0.5 LPH–2500 LPM class).
Key advantages
- Accuracy — ±0.5% of reading typical
- Repeatability — ±0.03%
- Sizes — Approx. ¼–4 in; 0.5 LPH–2500 LPM class
- Construction — Billet/cast bodies; modular M-Lock
- Technology — Oval gear PD
Typical applications
- Fuel / oil metering.
- Process liquid batching.
- Industrial PD flow skids.
Selection guide
- Size / flow
- Body materials
- Display / pulse options
Common mistakes
- Dirty/abrasive fluids.
- Air entrainment.
- Wrong viscosity assumption.
When to RFQ / what to tell us
- Size, fluid, output.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40700 |
| Brand | Macnaught |
| Model | MX Series |
| Product type | Flow Meter |
| Type | Industrial oval-gear positive displacement flow meter (MX Series) |
| Accuracy | ±0.5% of reading (typical MX series) |
| Repeatability | ±0.03% |
| Sizes | Approx. ¼ in to 4 in (model dependent; 0.5 LPH–2500 LPM class) |
| Construction | Billet/cast bodies; modular M-Lock assembly |
Documents
FAQ
Q: Accuracy? A: ±0.5% of reading typical.
Q: Repeatability? A: ±0.03%.
Q: What should I send for a quote? A: Size/fluid/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±0.5% of reading (typical MX series) |
| Type | Industrial oval-gear positive displacement flow meter (MX Series) |
| Repeatability | ±0.03% |
| Sizes | Approx. ¼ in to 4 in (model dependent; 0.5 LPH–2500 LPM class) |
| Construction | Billet/cast bodies; modular M-Lock assembly |
| Outputs | Optional digital display / pulse outputs |
| Media | Clean lubricating / fuel / oil and viscous liquids (see selection guide) |
| Document | Macnaught MX Series cut sheet + selection guide |
