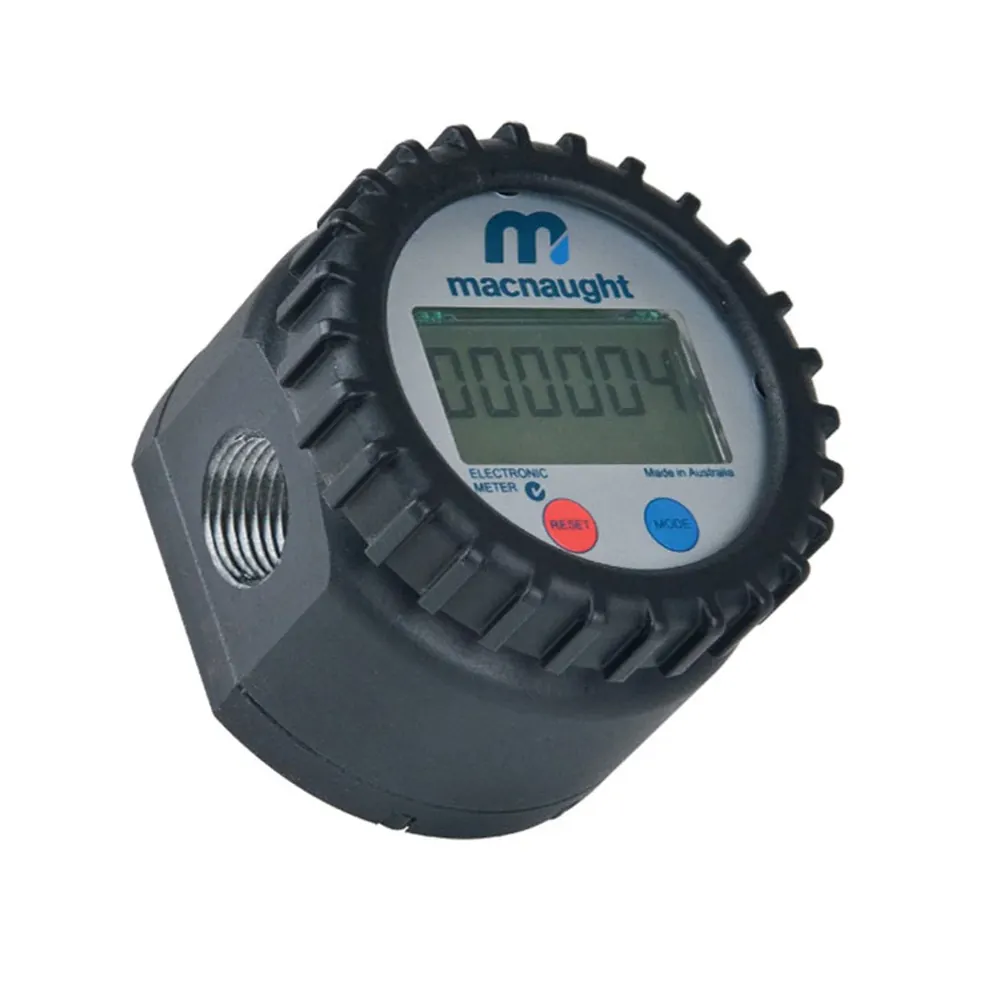

Macnaught IM Series Oval Gear Oil Flow Meter
Quote on request
No online payment · add lines to RFQ BOM
IM Series: IM012 1–30 L/min; IM019 3–80 L/min; ±0.5%; oil PD. RFQ model.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
+/-0.5% of reading (electronic / pulse class)
Type
In-line oval gear positive displacement oil flow meter family (IM Series)
Models
IM012 (1/2 in) mechanical / digital / pulse; IM019 (3/4 in) digital / pulse
Flow Im012
1-30 L/min (0.26-8 US gal/min)
Flow Im019
3-80 L/min (0.8-21 US gal/min)
Ports
IM012 1/2 in NPT(F); IM019 3/4 in NPT(F); BSP variants available
Fits in-line oil metering where you need a Macnaught IM Series oval-gear meter—IM012 (½ in) at 1–30 L/min or IM019 (¾ in) at 3–80 L/min with ±0.5% of reading electronic/pulse accuracy in mechanical, digital, or pulse constructions.
Key advantages
- IM012 — ½ in; 1–30 L/min (0.26–8 US gpm)
- IM019 — ¾ in; 3–80 L/min (0.8–21 US gpm)
- Accuracy — ±0.5% of reading (electronic/pulse class)
- Formats — Mechanical / digital / pulse
- Fluid — Oil / lubrication class metering
Typical applications
- Lube oil dispensing.
- Oil transfer metering.
- Workshop oil batching.
Selection guide
- IM012 vs IM019
- Display vs pulse
- Viscosity / oil grade
Common mistakes
- Water / dirty fluid.
- Air entrainment.
- Wrong size for flow.
When to RFQ / what to tell us
- Model, output.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 41315 |
| Brand | Macnaught |
| Model | IM Series Oval Gear Flow Meter |
| Product type | Flow Meter |
| Type | In-line oval gear positive displacement oil flow meter family (IM Series) |
| Models | IM012 (1/2 in) mechanical / digital / pulse; IM019 (3/4 in) digital / pulse |
| Flow IM012 | 1-30 L/min (0.26-8 US gal/min) |
| Flow IM019 | 3-80 L/min (0.8-21 US gal/min) |
| Accuracy | +/-0.5% of reading (electronic / pulse class) |
Documents
FAQ
Q: IM012 flow? A: 1–30 L/min.
Q: Accuracy? A: ±0.5% of reading electronic/pulse class.
Q: What should I send for a quote? A: Model/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | +/-0.5% of reading (electronic / pulse class) |
| Type | In-line oval gear positive displacement oil flow meter family (IM Series) |
| Models | IM012 (1/2 in) mechanical / digital / pulse; IM019 (3/4 in) digital / pulse |
| Flow Im012 | 1-30 L/min (0.26-8 US gal/min) |
| Flow Im019 | 3-80 L/min (0.8-21 US gal/min) |
| Ports | IM012 1/2 in NPT(F); IM019 3/4 in NPT(F); BSP variants available |
| Outputs | Mechanical register, 6-digit digital display, or reed/Hall pulse |
| Fluids | Oils and lubricants (viscosity class up to about SAE 140 on electronic meters) |
| Warranty | 2-year warranty; 10-year parts availability (Macnaught USA literature) |
| Document | Macnaught USA Oil Flow Meters cut sheet (IM Series) |
