Blancett

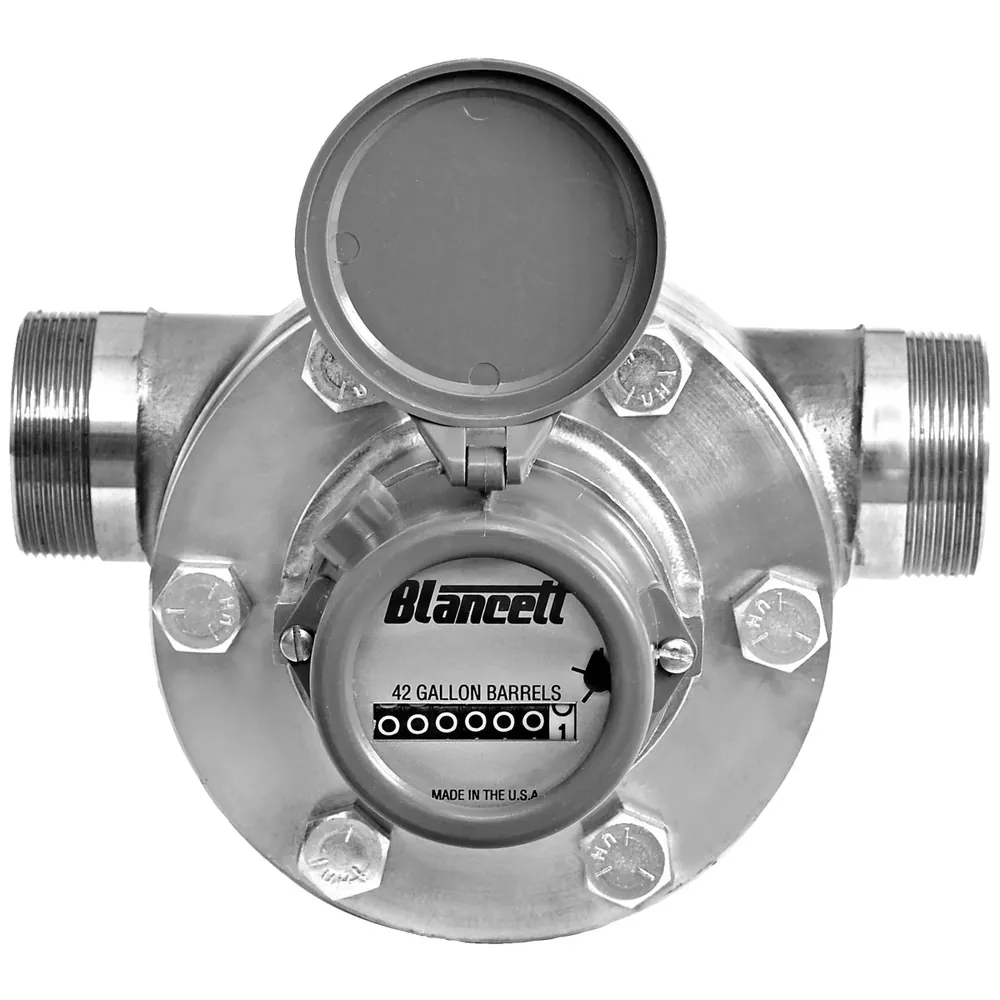

Blancett 900 Series Positive Displacement Flow Meter
Quote on request
No online payment · add lines to RFQ BOM
Blancett 900: rotary vane PD; 5000 psi; 30–200 °F; 1–2 in NPT; 2% acc; ±0.1% rep. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
2%
Type
Blancett 900 Series positive displacement water-flood flow meter (rotary vane)
Operating Temperature
30 to 200 F (-1 to 93 C)
Pressure Rating
5000 psi maximum
End Connections
1 in. NPT female and 2 in. NPT male
Repeatability
+/-0.1%
Fits high-pressure water-flood metering where you need a Blancett 900 Series meter. Rotary-vane positive displacement flow meter rated to 5000 psi with operating temperature 30 to 200 °F, 1 in NPT female and 2 in NPT male end connections, 2% accuracy and ±0.1% repeatability.
Key advantages
- Type — Rotary vane PD (water-flood)
- Pressure — 5000 psi maximum
- Temperature — 30 to 200 °F (−1 to 93 °C)
- Connections — 1 in NPT F / 2 in NPT M
- Repeatability — ±0.1%
Typical applications
- Water-flood injection.
- High-pressure water metering.
- Oilfield PD flow.
Selection guide
- End connection
- Output/register
- Fluid cleanliness
Common mistakes
- Abrasives in fluid.
- Exceeding 5000 psi.
- Temperature outside band.
When to RFQ / what to tell us
- Connection/options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47264 |
| Brand | Blancett |
| Model | 900 Series Positive Displacement Flow Meter |
| Product type | Positive Displacement Flow Meter |
| Type | Blancett 900 Series positive displacement water-flood flow meter (rotary vane) |
| Operating temperature | 30 to 200 F (-1 to 93 C) |
| Pressure rating | 5000 psi maximum |
| End connections | 1 in. NPT female and 2 in. NPT male |
| Accuracy | 2% |
| Repeatability | +/-0.1% |
Documents
FAQ
Q: Max pressure? A: 5000 psi.
Q: Accuracy? A: 2%.
Q: What should I send for a quote? A: Connection/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | 2% |
| Type | Blancett 900 Series positive displacement water-flood flow meter (rotary vane) |
| Operating Temperature | 30 to 200 F (-1 to 93 C) |
| Pressure Rating | 5000 psi maximum |
| End Connections | 1 in. NPT female and 2 in. NPT male |
| Repeatability | +/-0.1% |
| Turndown | Low about 2.5:1; medium about 9:1; high about 2:1 (insert-dependent) |
| Flow Ranges Examples | Low 68-172 bpd; mid 172-1543 bpd; high 1543-3086 bpd; mid gallon option 5-45 gpm |
| Body Materials | Stainless steel body; high-tech polymer bearings/rotor support for chemical/abrasion resistance |
| Dimensions | End-to-end about 8.80 in (223.5 mm); height 8.00 in (203.2 mm); diameter 6.10 in (154.9 mm) |
| Document | Blancett 900 Series Product Data Sheet PDM-DS-00134-EN-04 (Badger Meter widen OEM) |
