AW-Lake

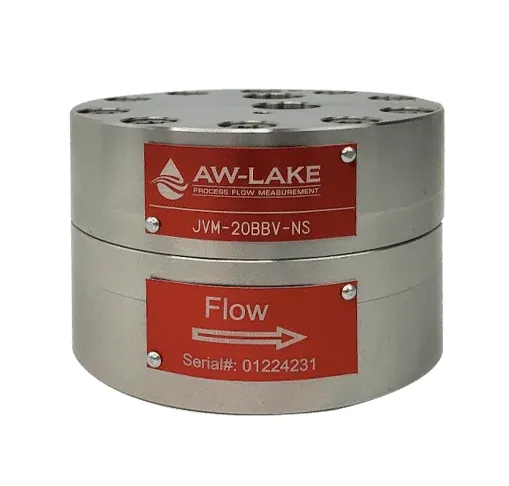

AW-Lake JV-BB Series Flow Meter
Quote on request
No online payment · add lines to RFQ BOM
AW-Lake JV-BB: PD gear meter; 0.005–120 gpm; ±0.5% (±0.25% opt.); to 6000 psi. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
+/-0.5% of measured value over full range with 30 cP fluid; +/-0.25% optional with select sensors
Type
Positive displacement gear flow meter with ball bearings (JV-BB Series)
Flow Ranges
0.005 to 120 gpm across six meter sizes (12BB-90BB)
Repeatability
+/-0.1%
Pressure
Up to 6,000 psi (smaller sizes); 5,000 psi on 80BB/90BB
Temperature
-40 to +356 F (-40 to +180 C); sensor-dependent system range
Fits positive-displacement gear flow where you need an AW-Lake JV-BB Series. Ball-bearing gear meters spanning 0.005 to 120 gpm across six sizes (12BB–90BB), accuracy ±0.5% of measured value over full range with 30 cP fluid (±0.25% optional with select sensors), repeatability ±0.1%, and pressure to 6,000 psi on smaller sizes (5,000 psi on 80BB/90BB).
Key advantages
- Flow — 0.005 to 120 gpm (6 sizes)
- Accuracy — ±0.5% (±0.25% optional)
- Repeatability — ±0.1%
- Pressure — To 6,000 psi (size-dependent)
- Type — PD gear with ball bearings
Typical applications
- Oil / hydraulic metering.
- High-pressure PD flow.
- Viscous liquid totals.
Selection guide
- Size / gpm
- Sensor option
- Fluid viscosity
Common mistakes
- Wrong size for viscosity.
- Exceeding pressure by size.
- Ignoring 30 cP accuracy basis.
When to RFQ / what to tell us
- Size/sensor/fluid.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 48611 |
| Brand | AW-Lake |
| Model | JV-BB Series Flow Meter |
| Product type | Flow Meter |
| Type | Positive displacement gear flow meter with ball bearings (JV-BB Series) |
| Flow ranges | 0.005 to 120 gpm across six meter sizes (12BB-90BB) |
| Accuracy | +/-0.5% of measured value over full range with 30 cP fluid; +/-0.25% optional with select sensors |
| Repeatability | +/-0.1% |
| Pressure | Up to 6,000 psi (smaller sizes); 5,000 psi on 80BB/90BB |
Documents
FAQ
Q: Accuracy? A: ±0.5% with 30 cP (±0.25% optional).
Q: Max pressure? A: To 6,000 psi (smaller sizes).
Q: What should I send for a quote? A: Size/sensor/fluid, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | +/-0.5% of measured value over full range with 30 cP fluid; +/-0.25% optional with select sensors |
| Type | Positive displacement gear flow meter with ball bearings (JV-BB Series) |
| Flow Ranges | 0.005 to 120 gpm across six meter sizes (12BB-90BB) |
| Repeatability | +/-0.1% |
| Pressure | Up to 6,000 psi (smaller sizes); 5,000 psi on 80BB/90BB |
| Temperature | -40 to +356 F (-40 to +180 C); sensor-dependent system range |
| Turndown | Up to 150:1 |
| Materials | Body aluminum 7075 / 303 SS / 316L SS; stainless gears and bearings |
| Ports | NPT standard on 60BB and smaller; SAE Code 62 flange on 80BB/90BB |
| Document | AW-Lake JVBB-Gear-Meter-Datasheet-JVBBDS21 |
