AEMC

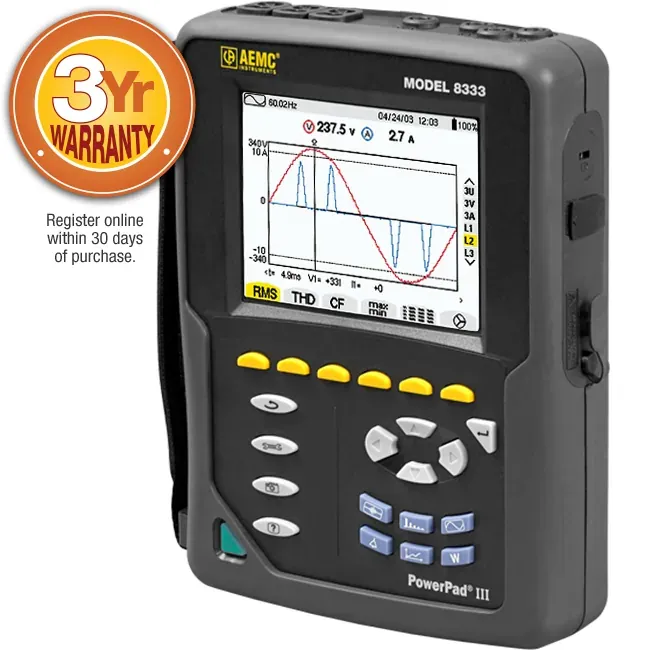

AEMC PowerPad III Model 8333
Quote on request
No online payment · add lines to RFQ BOM
AEMC 8333: 3V/3I PQ analyzer; 256 s/c; harmonics; DataView. RFQ kit.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
Color ¼ VGA TFT 320×240, diagonal 5.82 in (148 mm)
Communication
Isolated USB; DataView software
Approvals
IEC 61010 CAT III/IV; IEC 61000-4-30 Class B; IP53
Notes
Specs from AEMC PowerPad III 8333/8336 datasheet 2136-10 + user manual 8333_EN. Distinct from sibling 40133 (8336) and 40134 (8435).
Catalog Number
2136.10 (8333 without probes); kits 2136.11 / 2136.12 with AmpFlex or MN193
Inputs
4 voltage / 3 current terminals; 3 voltage + 3 current measurement channels
Fits three-phase power quality surveys where you need an AEMC PowerPad III Model 8333—3 voltage / 3 current inputs, 256 samples per cycle, Vrms accuracy about ±0.5% of reading + 200 mV, with harmonics, transients, and DataView software support.
Key advantages
- Inputs — 3 voltage / 3 current
- Sampling — 256 samples/cycle
- Vrms — 2–1000 V; ±0.5% rdg + 200 mV typical
- PQ — Harmonics to 50th; flicker; unbalance; energy
- I/O — USB/SD; DataView; NiMH pack
Typical applications
- 3-phase load surveys.
- Harmonic troubleshooting.
- Energy / demand logging.
Selection guide
- Probe kit (AmpFlex/MN193)
- vs 8336 (4V/4I)
- SD capacity
Common mistakes
- Missing current probes.
- Wrong wiring for system type.
- Ignoring clamp accuracy adders.
When to RFQ / what to tell us
- Kit/probes.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40132 |
| Brand | AEMC |
| Model | PowerPad III 8333 |
| Product type | Power Quality Analyzer |
| Type | Power quality analyzer (PowerPad III 8333) |
| Inputs | 3 voltage / 3 current |
| Sample | 256 samples/cycle |
| Vrms | 2–1000 V; ±0.5% rdg + 200 mV typical |
| Features | Harmonics to 50th; transient/snapshot; USB/SD; DataView |
Documents
FAQ
Q: Inputs? A: 3 voltage / 3 current.
Q: Sample rate? A: 256 samples per cycle.
Q: What should I send for a quote? A: Kit/probes, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | Color ¼ VGA TFT 320×240, diagonal 5.82 in (148 mm) |
| Communication | Isolated USB; DataView software |
| Approvals | IEC 61010 CAT III/IV; IEC 61000-4-30 Class B; IP53 |
| Notes | Specs from AEMC PowerPad III 8333/8336 datasheet 2136-10 + user manual 8333_EN. Distinct from sibling 40133 (8336) and 40134 (8435). |
| Catalog Number | 2136.10 (8333 without probes); kits 2136.11 / 2136.12 with AmpFlex or MN193 |
| Inputs | 4 voltage / 3 current terminals; 3 voltage + 3 current measurement channels |
| Voltage Range | TRMS AC+DC typically to 1000 V class; ph-ph/ph-n ranges per OEM datasheet; ratio to 500 kV |
| Current Range | Probe-dependent: MN193 from 5 mA class to 100 A; AmpFlex/MiniFlex to 10 kA; DC options with selected probes |
| Accuracy Voltage | Typical RMS voltage ±0.5% of reading + 0.2 V class (OEM PowerPad III sheet) |
| Frequency | 40–69 Hz nominal distribution systems; sampling 256 samples/cycle (~15.36 kHz at 60 Hz) |
| Harmonics | 1st to 50th order; THD; phase; flicker Pst; unbalance |
| Recording | SD card trend recording; up to 12 snapshots; up to 50 transients; up to 4000 alarm events / 10 types |
| Power | 9.6 V NiMH pack; external 110/230 Vac adapter; battery life ~10–15 h class |
| Safety Ip | IEC 61010 1000 V CAT III / 600 V CAT IV; IP53; IEC 61000-4-30 Class B |
| Dimensions Weight | 249 × 198 × 66 mm; 1.95 kg (4.3 lb) |
