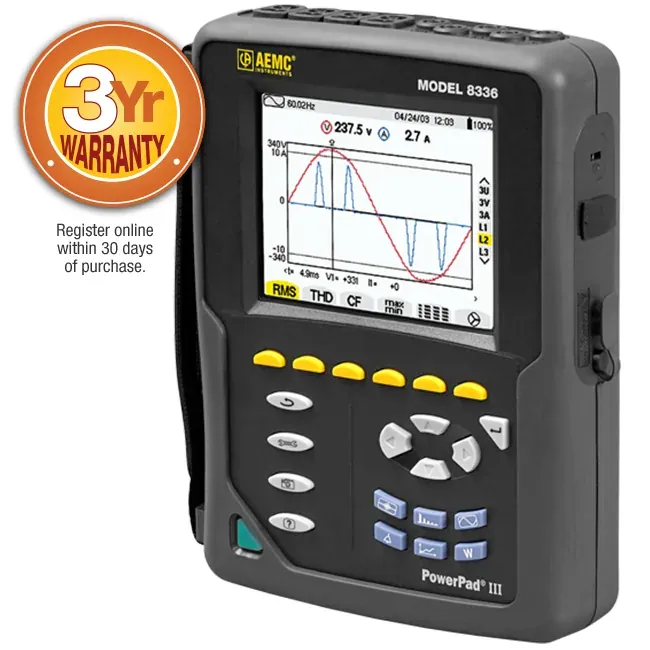

AEMC PowerPad III Model 8336
Quote on request
No online payment · add lines to RFQ BOM
AEMC 8336: 4V/4I PQ analyzer; 256 s/c; harmonics; DataView. RFQ kit.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Voltage TRMS AC+DC typically 2–1000 V (ph-n); current via clamps/AmpFlex from mA to 10 kA depending on sensor
Accuracy
Voltage typical ±0.5% + 0.2 V; IEC 61000-4-30 Class B
Display
320×240 color VGA TFT
Communication
USB; DataView software
Approvals
IEC 61000-4-30 Class B; IEC 61010; CE
Notes
Specs from AEMC 2136-30 datasheet and 8336_EN manual. No Instrumart.
Fits four-channel power quality work where you need an AEMC PowerPad III Model 8336—4 voltage / 4 current inputs, 256 samples per cycle, and Vrms accuracy about ±0.5% of reading + 200 mV with full PowerPad III logging and DataView support.
Key advantages
- Inputs — 4 voltage / 4 current
- Sampling — 256 samples/cycle
- Vrms — 2–1000 V; ±0.5% rdg + 200 mV typical
- PQ — Harmonics to 50th; transient/snapshot; energy
- I/O — USB/SD; DataView; NiMH pack
Typical applications
- 3-phase + neutral surveys.
- Facility PQ audits.
- Inrush / transient capture.
Selection guide
- Probe set
- vs 8333 (3V/3I)
- Memory / SD
Common mistakes
- Using 8333 docs for 4-channel wiring.
- Probe ratio mismatch.
- Battery not charged for long logs.
When to RFQ / what to tell us
- Kit/probes.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40133 |
| Brand | AEMC |
| Model | PowerPad III 8336 |
| Product type | Power Quality Analyzer |
| Type | Power quality analyzer (PowerPad III 8336) |
| Inputs | 4 voltage / 4 current |
| Sample | 256 samples/cycle |
| Vrms | 2–1000 V; ±0.5% rdg + 200 mV typical |
| Features | Harmonics to 50th; transient/snapshot; USB/SD; DataView |
Documents
FAQ
Q: Inputs? A: 4 voltage / 4 current.
Q: vs 8333? A: 8336 adds the fourth V/I channels.
Q: What should I send for a quote? A: Kit/probes, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Voltage TRMS AC+DC typically 2–1000 V (ph-n); current via clamps/AmpFlex from mA to 10 kA depending on sensor |
| Accuracy | Voltage typical ±0.5% + 0.2 V; IEC 61000-4-30 Class B |
| Display | 320×240 color VGA TFT |
| Communication | USB; DataView software |
| Approvals | IEC 61000-4-30 Class B; IEC 61010; CE |
| Notes | Specs from AEMC 2136-30 datasheet and 8336_EN manual. No Instrumart. |
| Inputs | 5 voltage / 4 current terminals (4 V / 4 I measurement channels) |
| Frequency | 40–69 Hz nominal (50/60 Hz networks) |
| Harmonics | Orders 1–50; THD; phase angle; flicker Pst/Plt |
| Sampling Rate | 256 samples/cycle (15.36 kHz at 60 Hz) |
| Data Logging | SD card trend recording; up to 50 snapshots, 210 transients, 10,000 alarm events; ~2 GB trend memory class |
| Power Source | Rechargeable NiMH pack; ~13–14 h typical; 110/240 Vac adapter |
| Protection Rating | IP53; 600 V CAT IV / 1000 V CAT III |
| Catalog Number | 2136.30 (base without sensors) |
