AEMC

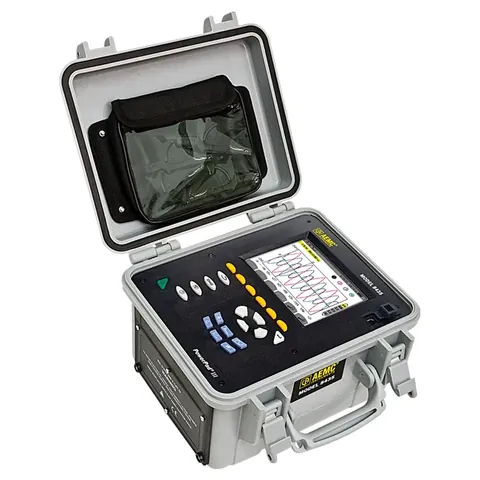

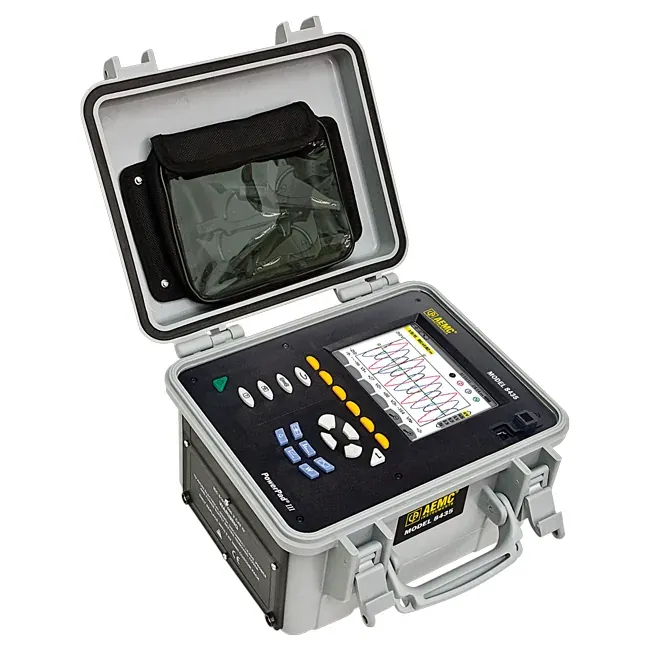

AEMC PowerPad Model 8435
Quote on request
No online payment · add lines to RFQ BOM
AEMC 8435: 4V/4I PQ (discontinued OEM); RFQ current PowerPad III options.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Protection
IP67 with cover closed
Display
¼ VGA (320×240) color LCD
Communication
Optically isolated USB
Approvals
IP67 (cover closed)
Instrument Variant
PowerPad III Model 8435 three-phase power quality analyzer (IP67 cover closed)
Voltage
TRMS phase-to-phase to 2000 V; phase-to-neutral to 1000 V; PT ratio to 500 kV
Fits legacy PowerPad documentation or replacement planning where you need context on the AEMC PowerPad Model 8435—a discontinued 4 voltage / 4 current power quality analyzer (256 samples/cycle). RFQ for current PowerPad III successors and compatible probe kits.
Key advantages
- Legacy inputs — 4 voltage / 4 current
- Sampling — 256 samples/cycle class
- Vrms class — About 1–1000 V; ±0.5% rdg + 0.2 V typical
- Status — Discontinued on OEM listing
- Path — RFQ current PowerPad III / successor options
Typical applications
- Legacy report cross-check.
- Replacement planning for 8435 fleets.
- Probe/accessory continuity reviews.
Selection guide
- Successor PowerPad III model
- Existing probe compatibility
- DataView workflow
Common mistakes
- Ordering 8435 as current production.
- Ignoring successor channel differences.
- Assuming all accessories transfer.
When to RFQ / what to tell us
- Current need vs legacy.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40134 |
| Brand | AEMC |
| Model | PowerPad III 8435 |
| Product type | Power Quality Analyzer |
| Type | Power quality analyzer (PowerPad 8435) — discontinued OEM listing |
| Inputs | 4 voltage / 4 current |
| Sample | 256 samples/cycle |
| Vrms | 1–1000 V; ±0.5% rdg + 0.2 V typical |
| Status | Discontinued; RFQ for current PowerPad III / successor options |
Documents
FAQ
Q: Still produced? A: OEM lists 8435 as discontinued.
Q: Inputs (legacy)? A: 4 voltage / 4 current.
Q: What should I send for a quote? A: Replacement need/probes, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Protection | IP67 with cover closed |
| Display | ¼ VGA (320×240) color LCD |
| Communication | Optically isolated USB |
| Approvals | IP67 (cover closed) |
| Instrument Variant | PowerPad III Model 8435 three-phase power quality analyzer (IP67 cover closed) |
| Voltage | TRMS phase-to-phase to 2000 V; phase-to-neutral to 1000 V; PT ratio to 500 kV |
| Current | Four current inputs; TRMS to 6500 A (sensor dependent); AmpFlex to 10 kA |
| Channels | Four voltage + four current input terminals; direct neutral V/I |
| Sampling | 256 samples/cycle |
| Harmonics | 1st to 50th with direction and sequence |
| Transients | Up to 210 captured transients; 50 snapshots; 1 inrush; 10,000 alarms |
| Storage | SD card up to 2 GB trend data; separate 12.5 MB partitioned memory |
| Frequency | 40–69 Hz systems |
| Size | 10.6 × 9.8 × 7.1 in (270 × 250 × 180 mm) |
| Battery | 9.6 V NiMH pack; ≥8 h display on; ≤35 h display off (record) |
| Special Features | Trend recording as fast as 1 s for one month (up to 25 variables); real-time phasors |
