Dwyer CSE-3R Series Enclosures
Quote on request
No online payment · add lines to RFQ BOM

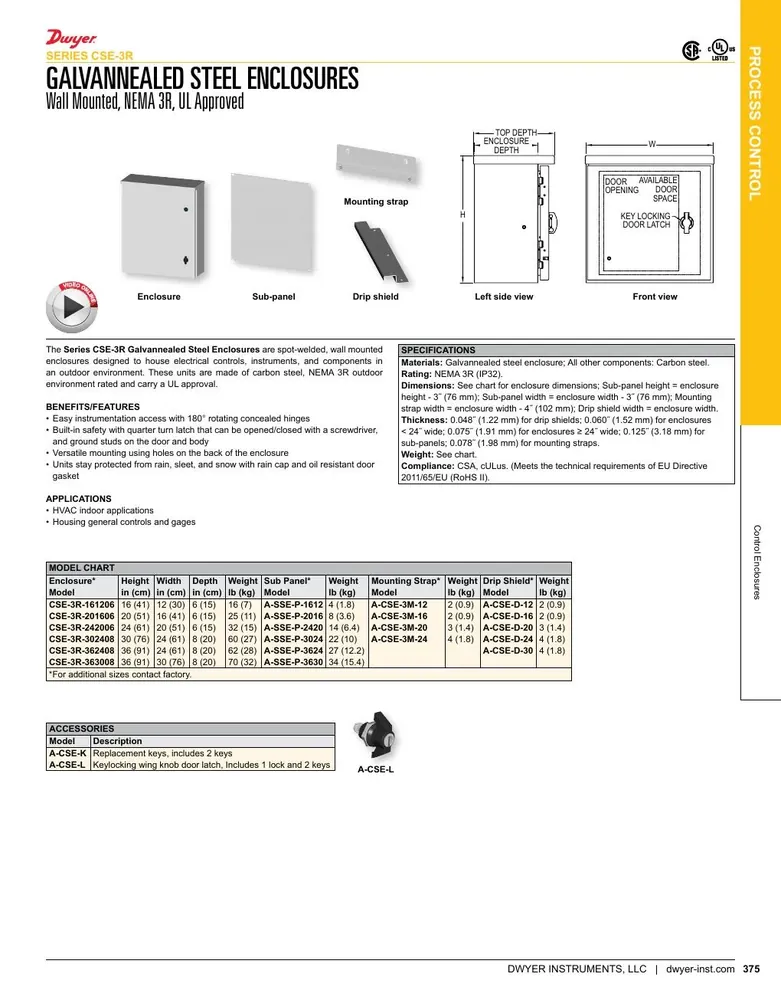

Dwyer CSE-3R: NEMA 3R (IP32); galvannealed steel; rain cap; 180° hinges. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Approvals
CSA; cULus; RoHS II EU 2011/65/EU
Mounting
Wall mount; mounting holes on back; standoffs for optional sub-panels
Enclosure Rating
NEMA 3R (IP32)
Materials
Galvannealed steel enclosure; other components carbon steel
Thickness
0.060 in (1.52 mm) for enclosures <24 in wide; 0.075 in (1.91 mm) for ≥24 in wide; drip shield 0.048 in; sub-panel 0.125 in
Hinges
Concealed hinges allowing 180° rotation
Fits outdoor rain-protected housings where you need a Dwyer CSE-3R Series. NEMA 3R (IP32) enclosure in galvannealed steel with rain cap and oil-resistant door gasket, concealed hinges allowing 180° rotation, screwdriver quarter-turn latch (optional keylocking wing knob) and ground studs on door and body.
Key advantages
- Rating — NEMA 3R (IP32)
- Material — Galvannealed steel body
- Protection — Rain cap; oil-resistant gasket
- Door — Concealed 180° hinges
- Latch — Quarter-turn; optional keylocking
Typical applications
- Outdoor instrument boxes.
- Rain-protected wall mounts.
- NEMA 3R control housings.
Selection guide
- Size
- Latch option
- Cable entry plan
Common mistakes
- Submerging (3R not waterproof).
- Missing drip path.
- Ignoring gasket condition.
When to RFQ / what to tell us
- Size/latch.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47855 |
| Brand | Dwyer Instruments |
| Model | CSE-3R Series |
| Product type | Enclosure |
| Enclosure rating | NEMA 3R (IP32) |
| Materials | Galvannealed steel enclosure; other components carbon steel |
| Thickness | 0.060 in (1.52 mm) for enclosures <24 in wide; 0.075 in (1.91 mm) for ≥24 in wide; drip shield 0.048 in; sub-panel 0.125 in |
| Hinges | Concealed hinges allowing 180° rotation |
| Latch | Quarter-turn latch (screwdriver); optional keylocking wing knob A-CSE-L |
| Protection features | Rain cap and oil-resistant door gasket; ground studs on door and body |
Documents
FAQ
Q: Rating? A: NEMA 3R (IP32).
Q: Rain protection? A: Rain cap and gasket.
Q: What should I send for a quote? A: Size/latch, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Approvals | CSA; cULus; RoHS II EU 2011/65/EU |
| Mounting | Wall mount; mounting holes on back; standoffs for optional sub-panels |
| Enclosure Rating | NEMA 3R (IP32) |
| Materials | Galvannealed steel enclosure; other components carbon steel |
| Thickness | 0.060 in (1.52 mm) for enclosures <24 in wide; 0.075 in (1.91 mm) for ≥24 in wide; drip shield 0.048 in; sub-panel 0.125 in |
| Hinges | Concealed hinges allowing 180° rotation |
| Latch | Quarter-turn latch (screwdriver); optional keylocking wing knob A-CSE-L |
| Protection Features | Rain cap and oil-resistant door gasket; ground studs on door and body |
| Size Range | Model chart from 16×12×6 in (CSE-3R-161206) to 36×30×8 in (CSE-3R-363008); additional sizes on request |
| Weight Range | Approx. 16 to 70 lb (7 to 32 kg) depending on model |
| Applications | Outdoor housing of electrical controls, instruments, and components; HVAC |
