Fluke

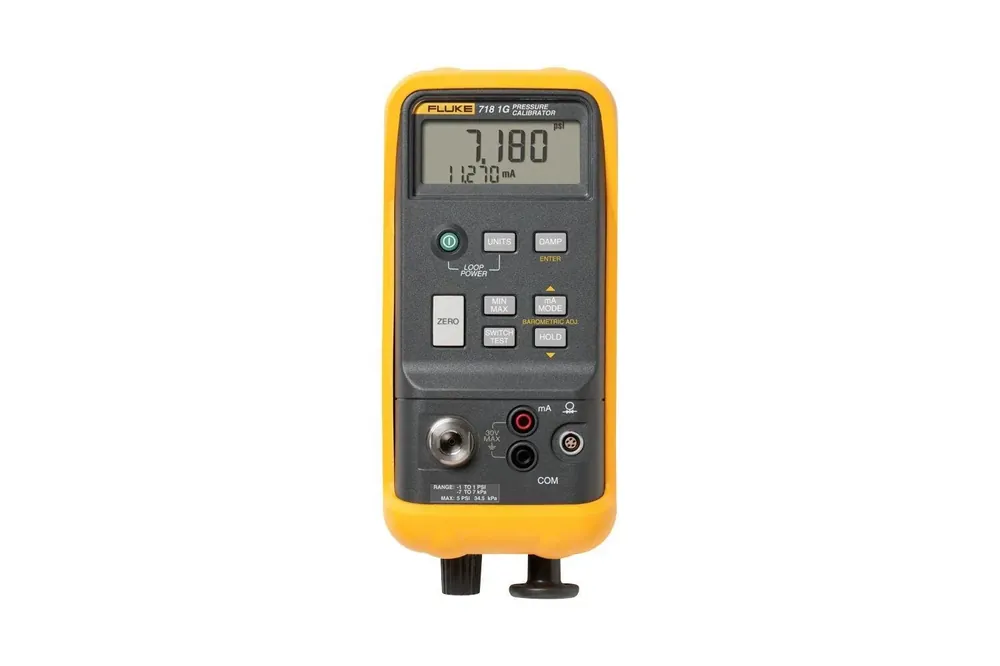

Fluke 718 Pressure Calibrator
Quote on request
No online payment · add lines to RFQ BOM
Pneumatic pressure calibrator. 1/30/100/300 psi; built-in pump; 0.05% FS. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
LCD, 5-digit pressure and current simultaneous
Approvals
CSA C22.2 No. 1010.1; EMC EN50082-1 / EN55022 Class B
Pressure Accuracy
0.05 % of full span (internal sensor)
Ma Accuracy
0.015 % (best-in-class mA measure per OEM DS)
Internal Ranges
718 1G (−1…+1 psi); 30G (−12…30 psi); 100G (−12…100 psi); 300G (−12…300 psi)
Pump
Built-in pneumatic hand pump with fluid-trap clean-out ports; field-serviceable
Fits field transmitter and switch calibration where you need a Fluke 718 with built-in cleanable pneumatic pump, 0.05% FS pressure accuracy, and 0.015% mA measurement.
Key advantages
- Built-in pump — Integrated cleanable pneumatic pump; models 1G / 30G / 100G / 300G
- Ranges — 718 1G −1 to +1 psi; 30G/100G/300G from −12 psi to +30/+100/+300 psi
- Pressure accuracy — 0.05% class; mA accuracy 0.015%
- mA / display — Measures 4–20 mA; 5-digit pressure and current simultaneous LCD
- Extendable — Compatible with Fluke 750P pressure modules; Min/Max/Hold/Damp
Typical applications
- Field calibration of pressure transmitters with internal pump source.
- Pressure switch test and mA loop checks.
- Shops stocking 1/30/100/300 psi 718 models plus 750P modules.
Selection guide
- Model range — 1G / 30G / 100G / 300G
- mA functions — measure 4–20 mA; switch test / error-% per OEM functions
- Modules — 750P external modules if span exceeds built-in sensor
Common mistakes
- Using hydraulic media in the pneumatic pump — 718 pump is pneumatic/cleanable design.
- Ordering 30G when custody spans need 300G or external modules.
- Ignoring pump service ports when process fluid ingress is likely.
When to RFQ / what to tell us
- Model (1/30/100/300 psi).
- 750P module needs; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 12353 |
| Brand | Fluke |
| Model | 718 Pressure Calibrator |
| Product type | Pressure Calibrator |
| Ranges | Models 1G/30G/100G/300G; built-in cleanable pneumatic pump (to 300 psi on 300G) |
| mA | Measures 4–20 mA; mA accuracy 0.015% |
| Features | Pressure source and mA measurement; Min/Max/Hold/Damp; Compatible with Fluke 750P pressure modules |
| Accuracy | Pressure accuracy 0.05% class |
Documents
FAQ
Q: What ranges? A: Models 1, 30, 100 and 300 psi with built-in pump (to 300 psi class on 300G).
Q: Pressure / mA accuracy? A: Pressure 0.05% class; mA 0.015%.
Q: What should I send for a quote? A: Model range, modules, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | LCD, 5-digit pressure and current simultaneous |
| Approvals | CSA C22.2 No. 1010.1; EMC EN50082-1 / EN55022 Class B |
| Pressure Accuracy | 0.05 % of full span (internal sensor) |
| Ma Accuracy | 0.015 % (best-in-class mA measure per OEM DS) |
| Internal Ranges | 718 1G (−1…+1 psi); 30G (−12…30 psi); 100G (−12…100 psi); 300G (−12…300 psi) |
| Pump | Built-in pneumatic hand pump with fluid-trap clean-out ports; field-serviceable |
| Media | Non-corrosive gases |
| Loop Functions | Pressure source + mA measure; error %; switch test; Min/Max/Hold/Damp/Zero |
| External Modules | Compatible with Fluke 700 Series pressure modules (to 10,000 psi / 700 bar class) |
| Operating Temperature | −10 °C to 55 °C |
| Size Weight | 216 × 94 × 66 mm with holster; 992 g (35 oz) |
| Power | Two 9 V alkaline batteries; 4–20 h typical |
| Warranty | Three years (one year on pressure pump) |
| Family | Fluke 718 Pressure Calibrator |
