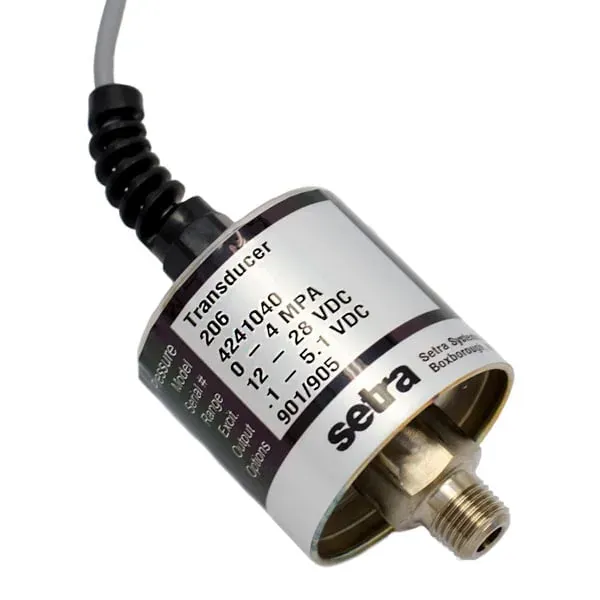

Setra 206 Industrial Pressure Transducer
Quote on request
No online payment · add lines to RFQ BOM
Industrial/OEM pressure transducer. ±0.13% FS; 25–10,000 psi; IP65. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Gauge/absolute industrial pressure 25 PSI to 10,000 PSI class (multiple PSIG ranges; absolute option)
Accuracy
±0.13% FS RSS at constant temperature (±0.22% FS on 25 PSIG range); hysteresis ±0.08% FS; non-repeatability ±0.02% FS
Output
4–20 mA (2-wire) or voltage outputs (0.1–5.1 VDC class / see ordering); field-accessible zero/span pots
Supply
12–28 VDC voltage version; current loop min/max supply per load formula (≈9–30 VDC class)
Wetted parts
17-4 PH stainless steel (gases/liquids compatible; hydrogen not recommended)
Housing
Stainless steel case
Fits industrial and OEM pressure sensing where you need a Setra Model 206 stainless transducer with ±0.13% FS accuracy, NEMA 4/IP65 rating, and field-accessible zero/span.
Key advantages
- Industrial transducer — Capacitive stainless-steel industrial/OEM pressure transducer (Model 206)
- Accuracy — ±0.13% FS standard (25 PSIG range listed ±0.22% FS)
- Ranges — As low as 25 PSI up to 10,000 PSI
- Environment — NEMA 4 / IP65; operating −40 to 185 °F (−40 to +85 °C)
- Serviceability — Field-accessible zero and span potentiometers; many pressure/electrical fittings
Typical applications
- Hydraulic, compressor, and industrial OEM equipment pressure sensing.
- HVAC/R and tank-level applications needing stainless wetted parts.
- Installations requiring field zero/span maintenance.
Selection guide
- Pressure range — 25 psi to 10,000 psi class
- Output — 4–20 mA 2-wire (and other outputs per order code)
- Process / electrical fittings — per ordering information
- Compensated range — −4 to +176 °F (−20 to +80 °C)
Common mistakes
- Calling it a digital gauge — 206 is an industrial pressure transducer.
- Ignoring the 25 PSIG accuracy note (±0.22% FS) vs ±0.13% FS standard.
- Leaving fittings/output undefined on the RFQ.
When to RFQ / what to tell us
- Pressure range and output signal.
- Process and electrical fittings.
- Quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 12358 |
| Brand | Setra |
| Model | 206 Digital Pressure Gauge |
| Product type | Pressure Transducer |
| Type | Industrial/OEM capacitive pressure transducer (Setra Model 206) |
| Accuracy | ±0.13% FS RSS standard; 25 PSIG range ±0.22% FS; non-linearity/hysteresis per OEM sheet |
| Ranges | 25 PSI to 10,000 PSI |
| Environment | NEMA 4 / IP65; vibration 200 g operating class |
| Output | 4–20 mA 2-wire and other outputs per ordering information |
| Adjustments | Field-accessible zero and span potentiometers |
| Operating temperature | −40 to 185 °F (−40 to +85 °C); compensated −4 to +176 °F (−20 to +80 °C) |
| Wetted | All stainless steel wetted materials |
Documents
FAQ
Q: Accuracy? A: ±0.13% FS standard; 25 PSIG range listed ±0.22% FS.
Q: Ranges? A: About 25 PSI to 10,000 PSI.
Q: What should I send for a quote? A: Range, output, fittings, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Gauge/absolute industrial pressure 25 PSI to 10,000 PSI class (multiple PSIG ranges; absolute option) |
| Accuracy | ±0.13% FS RSS at constant temperature (±0.22% FS on 25 PSIG range); hysteresis ±0.08% FS; non-repeatability ±0.02% FS |
| Output | 4–20 mA (2-wire) or voltage outputs (0.1–5.1 VDC class / see ordering); field-accessible zero/span pots |
| Supply | 12–28 VDC voltage version; current loop min/max supply per load formula (≈9–30 VDC class) |
| Wetted parts | 17-4 PH stainless steel (gases/liquids compatible; hydrogen not recommended) |
| Housing | Stainless steel case |
| Protection | NEMA 4 / IP65 |
| Ambient temperature | Operating −40 to +185 °F (−40 to +85 °C); compensated −4 to +176 °F (−20 to +80 °C); storage −40 to +185 °F |
| Notes | Specs from Setra Model 206 Data Sheet + Operating Instructions. Index label said Digital Pressure Gauge; OEM is Industrial Pressure Transducer. Replacement for skipped 25607. |
| Weight | Approx. 6 oz |
| Response Time | 5 milliseconds |
| Long Term Stability | <0.5% FS/year |
| Special Features | Exceptional EMI/RFI performance; reverse-wire protection; NIST-traceable calibration; multiple pressure/electrical fittings |
