Time Electronics

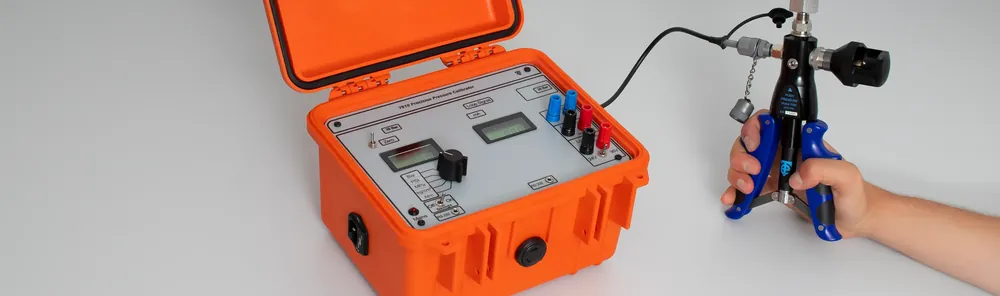

Time Electronics 7010 Pressure Calibrator
Quote on request
No online payment · add lines to RFQ BOM
Single-channel pressure + loop calibrator. Vac–600 bar; 0.04% FS. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Pressure Ranges
Versions from 0–0.2 bar to 0–600 bar; Vac to 2 bar includes −850 mbar vacuum
Pressure Accuracy
0.04 % FS typical (0.1 % FS on 0.2 / 200 / 400 / 600 bar versions)
Pressure Media
Pneumatic or hydraulic depending on range/pump
Display Units
4 selectable pressure units plus mA (bar, PSI, kPa/MPa, inWg/cmWg, inHg/mmHg, kg/cm², atm)
Loop Current
0–200 mA measure; 10 µA resolution; 0.05 % of reading ±1 digit
Loop Power
24 V or 36 V switch-selectable, 50 mA max, isolated
Fits portable pressure and loop calibration where you need a Time Electronics 7010 single-channel calibrator from vacuum to 600 bar versions with 24/36 V loop power.
Key advantages
- Pressure + loop — Single-channel portable pressure calibrator with mA measure and loop power
- Ranges — Versions from 0–0.2 bar to 0–600 bar; Vac to 2 bar includes −850 mbar vacuum
- Accuracy — 0.04 % FS typical (0.1 % FS on 0.2 / 200 / 400 / 600 bar versions)
- Loop — 0–200 mA measure; 24 V or 36 V switch-selectable isolated loop power
- Interface — RS-232; EasyCal compatible; rechargeable cells ~24 h or mains
Typical applications
- Portable transmitter pressure and loop calibration.
- Vacuum to high-pressure versioned benches (pneumatic or hydraulic by range).
- EasyCal-automated pressure calibration routines.
Selection guide
- Pressure version — 0.2 bar … 600 bar class; vacuum version if needed
- Media / pump — pneumatic vs hydraulic depending on range
- Loop power — 24 V vs 36 V
- Software — EasyCal / RS-232 needs
Common mistakes
- Ordering 0.2 bar accuracy expectation of 0.04% FS — that version is 0.1% FS class.
- Using wrong media (hydraulic vs pneumatic) for the ordered range/pump.
- Ignoring 1.2× FS overpressure warning / max pressure limits.
When to RFQ / what to tell us
- Pressure version and media.
- Loop-power preference; EasyCal need; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 12359 |
| Brand | Time Electronics |
| Model | 7010 Pressure Calibrator |
| Product type | Pressure Calibrator |
| Pressure ranges | Versions from 0–0.2 bar to 0–600 bar; Vac to 2 bar includes −850 mbar vacuum |
| Pressure accuracy | 0.04 % FS typical (0.1 % FS on 0.2 / 200 / 400 / 600 bar versions) |
| Media | Pneumatic or hydraulic depending on range/pump |
| Display units | 4 selectable pressure units plus mA (bar, PSI, kPa/MPa, inWg/cmWg, inHg/mmHg, kg/cm², atm) |
| Loop current | 0–200 mA measure; 10 µA resolution; 0.05 % of reading ±1 digit |
| Loop power | 24 V or 36 V switch-selectable, 50 mA max, isolated |
| Continuity | 100 Ω threshold with audio/visual warning |
| Interface | RS-232; EasyCal software compatible |
| Power | Internal rechargeable cells (~24 h) or mains; built-in charger |
Documents
FAQ
Q: Accuracy? A: 0.04% FS typical; 0.1% FS on 0.2 / 200 / 400 / 600 bar versions.
Q: Loop power? A: 24 V or 36 V switch-selectable, 50 mA max, isolated.
Q: What should I send for a quote? A: Pressure version, media, loop/software needs, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Pressure Ranges | Versions from 0–0.2 bar to 0–600 bar; Vac to 2 bar includes −850 mbar vacuum |
| Pressure Accuracy | 0.04 % FS typical (0.1 % FS on 0.2 / 200 / 400 / 600 bar versions) |
| Pressure Media | Pneumatic or hydraulic depending on range/pump |
| Display Units | 4 selectable pressure units plus mA (bar, PSI, kPa/MPa, inWg/cmWg, inHg/mmHg, kg/cm², atm) |
| Loop Current | 0–200 mA measure; 10 µA resolution; 0.05 % of reading ±1 digit |
| Loop Power | 24 V or 36 V switch-selectable, 50 mA max, isolated |
| Continuity | 100 Ω threshold with audio/visual warning |
| Interface | RS-232; EasyCal software compatible |
| Power | Internal rechargeable cells (~24 h) or mains; built-in charger |
| Overpressure | Warning at 1.2× range FS; max pressure 2× range (1.5× for ≥20 bar) |
