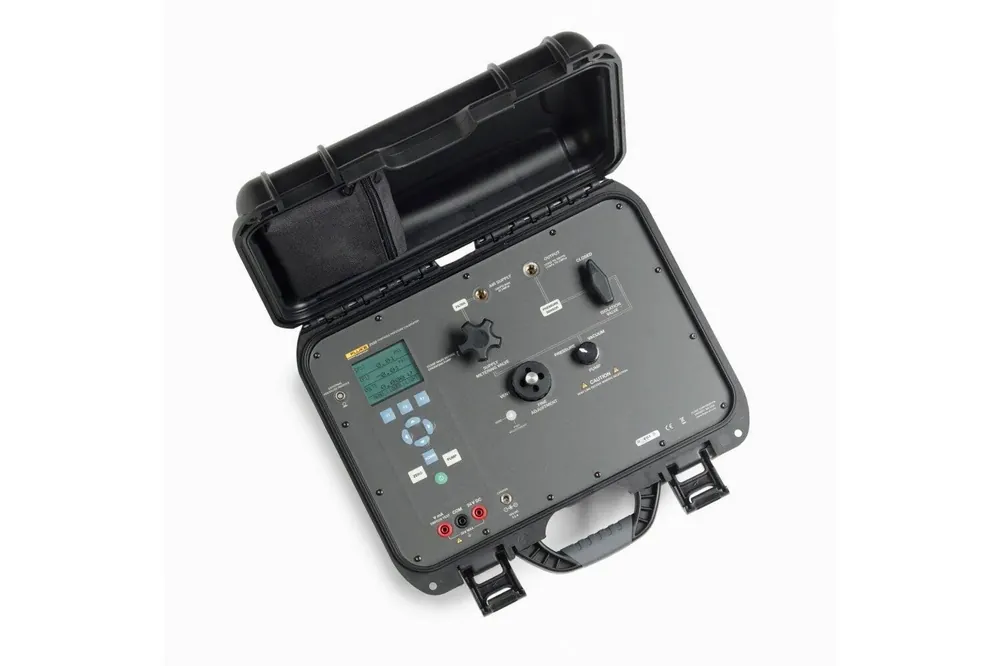

Fluke Calibration 3130 Pressure Calibrator

Fits portable pressure transmitter and gauge calibration where you need an integrated motorized pump (−80 kPa to 2 MPa / −12 to 300 psi), mA/V measure, and 24 V loop supply in one ruggedized case.

Key advantages

Internal motorized pump — −80 kPa to 2 MPa (−12 to 300 psi); external air 0 to 2 MPa.
±(0.025% rdg + 0.01% FS) — Pressure accuracy class for field calibration.
mA / V + 24 V loop — Measure/generate 4–20 mA; 0–30 V dc measure; 24 V loop supply.
Module-ready — Compatible with Fluke 700P and 750P pressure modules.
NIST-traceable standard — Certificate standard; ISO 17025 accredited option (/C).

Typical applications

Portable calibration of pressure transmitters and gauges to 300 psi / 2 MPa.
Field loop checks needing mA/V measure and 24 V loop supply with pressure.
Shops using Fluke 700P / 750P modules for extended ranges.

Selection guide

Pressure range — Internal pump −80 kPa to 2 MPa (−12 to 300 psi); external air 0 to 2 MPa.
Electrical — mA 0–24.000 mA; volts 0–30.000 V dc; generate/measure 4–20 mA; 24 V dc loop supply.
Accuracy — Pressure ±(0.025% reading + 0.01% FS); mA ±(0.015% reading + 0.002 mA); volts ±(0.015% reading + 0.002 V).
Process connection — 1/8 in NPT (external supply port and test port).
Operating temperature — −10 to +50 °C; no accuracy effect 15–35 °C; add ±0.002% FS/°C outside.
Supply / battery — 12 V dc via universal adapter/charger; internal 3800 mAh NiMH; ~50 hours measure-only/external air; ~100 calibration cycles to 300 psi with internal pump.
Modules — Compatible with Fluke 700P and 750P pressure modules.
EMI / cal — EN61326:2006 Annex A; NIST-traceable certificate standard; ISO 17025 accredited calibration option (/C).

Common mistakes

Assuming the internal pump covers above 2 MPa / 300 psi — external air path is also 0…2 MPa; use modules or a different calibrator for higher spans.
Ignoring the 15–35 °C no-accuracy-effect window — outside that, add ±0.002% FS/°C.
Ordering without the /C ISO 17025 option when the QA system requires accredited data on receipt.
Leaving module needs blank when the job spans beyond the internal 2 MPa pump.

When to RFQ / what to tell us

Max pressure span vs 2 MPa / 300 psi internal pump, and any 700P/750P module needs.
mA/V / 24 V loop use; ISO 17025 (/C) yes/no.
Quantity, ship-to, fittings/lead kit needs.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	39401
Brand	Fluke Calibration
Model	3130
Product type	portablepressurecalibrator
Measuring range	Pressure internal pump −80 kPa to 2 MPa (−12 to 300 psi); external air 0 to 2 MPa; mA 0–24.000 mA; volts 0–30.000 V dc
Accuracy	Pressure ±(0.025% reading + 0.01% FS); mA ±(0.015% reading + 0.002 mA); volts ±(0.015% reading + 0.002 V)
Output / functions	Generate/measure 4–20 mA; 24 V dc loop supply; pressure via internal motorized pump or external gas
Process connection	1/8 in NPT (external supply port and test port)
Operating temperature	−10 to +50 °C; no accuracy effect 15–35 °C; add ±0.002% FS/°C outside
Supply	12 V dc via universal adapter/charger; internal 3800 mAh NiMH pack
Battery life	Approx. 50 hours measure-only/external air; ~100 calibration cycles to 300 psi with internal pump
Physical	15.25 × 12 × 7 in; ~7 kg (15 lb); ruggedized case with storage for leads/fittings
Engineering units	psi, bar, mbar, kPa, MPa, kgf/cm², mm/cm/in H2O, mm/in Hg
Module compatibility	Compatible with Fluke 700P and 750P pressure modules
EMI	EN61326:2006 Annex A
Approvals / cal	NIST-traceable certificate standard; ISO 17025 accredited calibration option (/C)
Notes	Specs from Fluke Calibration 3130 Technical Data and User Manual.

Documents

FAQ

Q: What pressure span does the internal pump cover? A: −80 kPa to 2 MPa (−12 to 300 psi). External air path is 0 to 2 MPa .

Q: Can it power a 4–20 mA transmitter? A: Yes — generate/measure 4–20 mA with a 24 V dc loop supply is listed.

Q: What should I send for a quote? A: Spans, media, modules, certificate class (/C yes/no), quantity. Compatible with systems using Fluke Calibration 3130 — we do not claim authorized-dealer status.
