Setra
Setra MicroCal Automated Pressure Calibrator
Quote on request
No online payment · add lines to RFQ BOM
Setra MicroCal portable automated pressure calibrator for DP/gauge sensors. Modular MCPM references, touchscreen. RFQ + selection help.

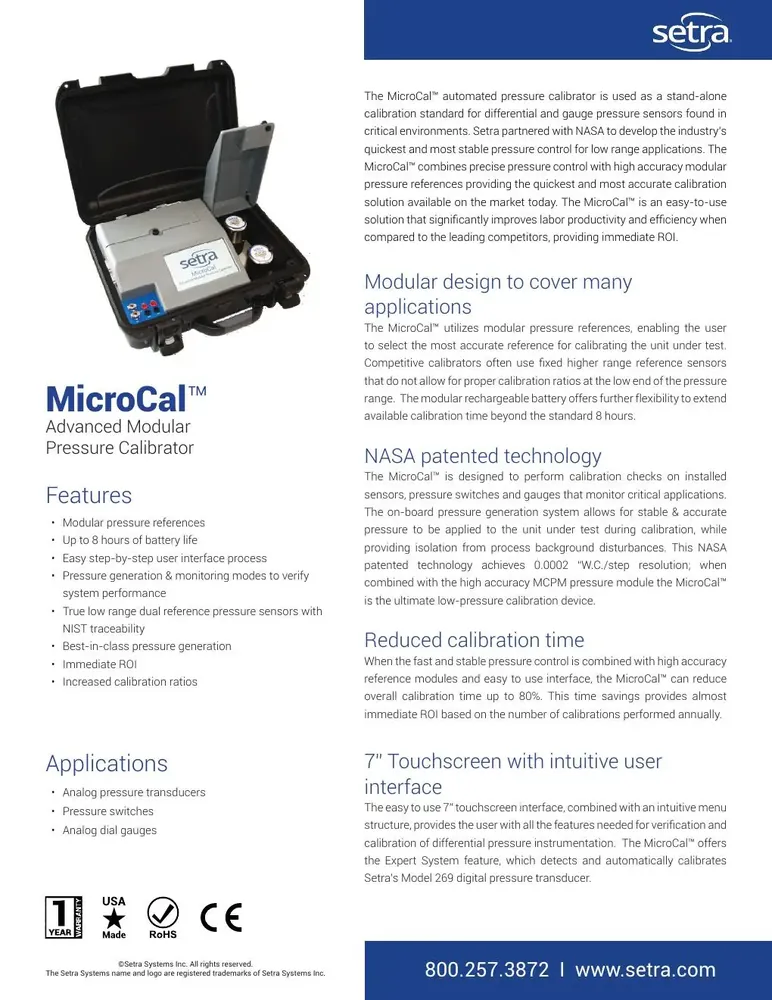

Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Setra MicroCal automated portable pressure calibrator for differential and gauge sensors
Control
Closed-loop pressure generation/control with fine resolution suitable for low-pressure HVAC and critical environments
References
Modular MCPM pressure reference modules so the user can select an appropriate reference range for the unit under test
Ui
Color touchscreen operator interface for automated multi-point test profiles and manual zero/span adjust
Battery
Modular rechargeable battery operation for portable field calibration
Dut Support
Calibrates pressure sensors, pressure switches and analog dial gauges; can work with installed sensors
Fits portable differential and gauge sensor calibration in HVAC, cleanrooms, and critical environments where closed-loop pressure generation, modular MCPM reference modules, and automated multi-point profiles on a color touchscreen are required.
Key advantages
- Automated low-pressure calibration — control and reference functions aimed at differential/gauge sensor work.
- Portable form factor — battery-capable field/lab use for cleanroom and HVAC sensor benches.
- DUT-oriented workflow — results capture features for repeat calibration jobs.
- OEM document path — Setra MicroCal data sheet linked for configuration details.
Typical applications
- Cleanroom and hospital differential-pressure sensor verification.
- HVAC building-automation pressure transducer calibration.
- Lab benches that need automated low-pressure control instead of manual pumps only.
Selection guide
- Type — Setra MicroCal automated portable pressure calibrator for differential and gauge sensors.
- Control — Closed-loop pressure generation/control with fine resolution suitable for low-pressure HVAC and critical environments.
- References — Modular MCPM pressure reference modules so the user can select an appropriate reference range for the unit under test.
- UI — Color touchscreen operator interface for automated multi-point test profiles and manual zero/span adjust.
- Battery — Modular rechargeable battery operation for portable field calibration.
- DUT support — Calibrates pressure sensors, pressure switches and analog dial gauges; can work with installed sensors.
- Results — Test results stored on the instrument and transferable through MicroCal Manager software.
- Applications — Low-pressure differential calibration for HVAC, cleanrooms and critical environments.
Common mistakes
- Ordering the base unit without MCPM reference modules matched to the UUT span.
- Expecting a single fixed pressure range — references are modular by design.
- Skipping MicroCal Manager when result transfer/reporting is required.
- Using it as a high-pressure hydraulic deadweight substitute — OEM positioning is low-pressure DP/gauge / HVAC / critical environments.
When to RFQ / what to tell us
- UUT types (sensor / switch / dial gauge) and pressure spans (DP vs gauge).
- Required MCPM reference module ranges and automated profile needs.
- Battery/portable vs bench use, MicroCal Manager need, quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 42419 |
| Brand | Setra |
| Model | MicroCal |
| Product type | automatedpressurecalibrator |
| Type | Automated portable pressure calibrator for differential and gauge sensors |
| Control | Closed-loop pressure generation/control; fine resolution for low-pressure HVAC / critical environments |
| References | Modular MCPM pressure reference modules (range selected to UUT) |
| UI | Color touchscreen; automated multi-point profiles; manual zero/span |
| Battery | Modular rechargeable battery for portable field calibration |
| DUT support | Pressure sensors, pressure switches, analog dial gauges; installed sensors |
| Results | Stored on instrument; transferable via MicroCal Manager software |
| Applications | Low-pressure differential calibration for HVAC, cleanrooms, critical environments |
| Notes | Values aligned with Setra Model MicroCal documentation + Operating Instructions (setra.com). |
Documents
FAQ
Q: Is MicroCal one fixed pressure range? A: No — modular MCPM reference modules select the reference range for the UUT. State spans on the RFQ.
Q: What can it calibrate? A: Pressure sensors, pressure switches, and analog dial gauges; can work with installed sensors per the data sheet extract.
Q: What should I send for a quote? A: UUT types/spans, MCPM ranges, software need, quantity. Compatible with systems using Setra MicroCal — we do not claim authorized-dealer status.
Links
| Parameter | Value |
|---|---|
| Type | Setra MicroCal automated portable pressure calibrator for differential and gauge sensors |
| Control | Closed-loop pressure generation/control with fine resolution suitable for low-pressure HVAC and critical environments |
| References | Modular MCPM pressure reference modules so the user can select an appropriate reference range for the unit under test |
| Ui | Color touchscreen operator interface for automated multi-point test profiles and manual zero/span adjust |
| Battery | Modular rechargeable battery operation for portable field calibration |
| Dut Support | Calibrates pressure sensors, pressure switches and analog dial gauges; can work with installed sensors |
| Results | Test results stored on the instrument and transferable through MicroCal Manager software |
| Productivity | Automated profiles intended to improve calibration labor productivity versus manual benches |
| Applications | Low-pressure differential calibration for HVAC, cleanrooms and critical environments |
| Document | Setra Model MicroCal Data Sheet + Operating Instructions (setra.com hubfs) |
