Druck

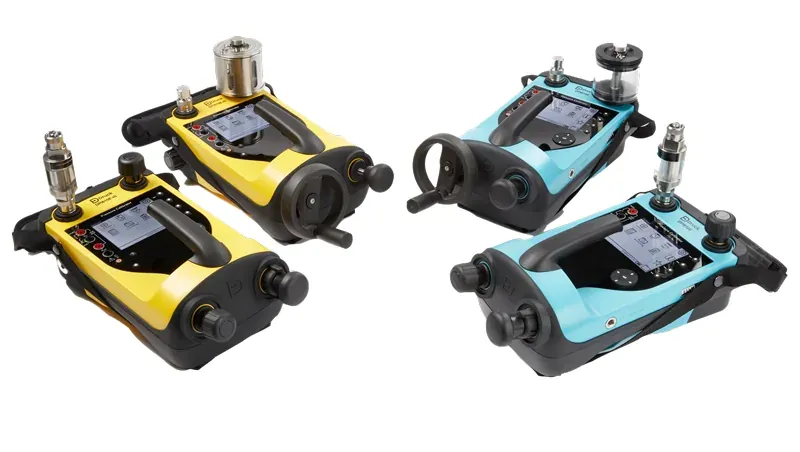

Druck DPI610E Portable Pressure Calibrator
Quote on request
No online payment · add lines to RFQ BOM
Druck DPI610E: portable P calibrator; pneumatic to 35 bar / hydraulic to 1000 bar; 0.025% FS. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Pneumatic vacuum to 35 bar (500 psi / 3.5 MPa) with internal barometer; hydraulic to 1000 bar (15,000 psi / 100 MPa)
Accuracy
Total 1-year uncertainty down to 0.025% FS over −10 to +50 °C
Output
Measure ±20/±55 mA and ±30 V; source 0–24 mA class / loop functions; 10 V / 24 V loop power; HART standard on all versions
Supply
Integral Li-ion battery; mains adaptor IO610E-PSU 100–260 V AC → 15 V DC 1.6 A; full recharge ~2 h
Protection
IP54
Ambient temperature
Operating −10 to +50 °C (14 to 122 °F); storage −20 to +70 °C
Fits portable pressure calibration where you need a Druck DPI610E. Calibrator with pneumatic vacuum to 35 bar (500 psi) and internal barometer, hydraulic to 1000 bar (15,000 psi), total 1-year uncertainty down to 0.025% FS over −10 to +50 °C, mA/V measure and source with 10/24 V loop power, HART standard on applicable variants, IP54, and integral Li-ion with ~2 h full recharge.
Key advantages
- Pneumatic — Vacuum to 35 bar
- Hydraulic — To 1000 bar
- Uncertainty — Down to 0.025% FS (1 yr)
- Electrical — mA/V; loop power; HART
- IP — IP54
Typical applications
- Field pressure calibration.
- Pneumatic/hydraulic portable kits.
- HART transmitter checks.
Selection guide
- Pneumatic vs hydraulic
- Range
- HART / media
Common mistakes
- Wrong media for pump.
- Ignoring temp band for uncertainty.
- IP54 misuse outdoors.
When to RFQ / what to tell us
- Range/media/options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 49338 |
| Brand | Druck |
| Model | DPI610E |
| Product type | Pressure Calibrator |
| Measuring range | Pneumatic vacuum to 35 bar (500 psi / 3.5 MPa) with internal barometer; hydraulic to 1000 bar (15,000 psi / 100 MPa) |
| Accuracy | Total 1-year uncertainty down to 0.025% FS over −10 to +50 °C |
| Output signal | Measure ±20/±55 mA and ±30 V; source 0–24 mA class / loop functions; 10 V / 24 V loop power; HART standard on all versions |
| Supply voltage | Integral Li-ion battery; mains adaptor IO610E-PSU 100–260 V AC → 15 V DC 1.6 A; full recharge ~2 h |
| IP rating | IP54 |
Documents
FAQ
Q: Hydraulic max? A: 1000 bar (15,000 psi).
Q: Uncertainty? A: Down to 0.025% FS (1 yr).
Q: What should I send for a quote? A: Range/media/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Pneumatic vacuum to 35 bar (500 psi / 3.5 MPa) with internal barometer; hydraulic to 1000 bar (15,000 psi / 100 MPa) |
| Accuracy | Total 1-year uncertainty down to 0.025% FS over −10 to +50 °C |
| Output | Measure ±20/±55 mA and ±30 V; source 0–24 mA class / loop functions; 10 V / 24 V loop power; HART standard on all versions |
| Supply | Integral Li-ion battery; mains adaptor IO610E-PSU 100–260 V AC → 15 V DC 1.6 A; full recharge ~2 h |
| Protection | IP54 |
| Ambient temperature | Operating −10 to +50 °C (14 to 122 °F); storage −20 to +70 °C |
| Display | 112 mm (4.4 in) diagonal 320×240 LCD monochrome, backlit |
| Communication | HART as standard; data logging to 100,000 points; 4Sight2 Lite license included |
| Approvals | CE; UKCA; ATEX/IECEx/UKEX Ex ia IIC T4 Ga (IS versions); CSA Class I Zone 0 AEx/Ex ia IIC T4 Ga (IS) |
| Mounting | Handheld field calibrator |
| Sensor type | Handheld pressure calibrator with integrated generation + electrical measure/source |
| Notes | Specs from druck.com DPI610E datasheet RF0276 / BHCS family. Optional PM700E remote pressure sensor and RTD interface. |
| Weight | Pneumatic ~3.6 kg (8 lb); hydraulic ~4.4 kg (10 lb) including battery |
