Ashcroft

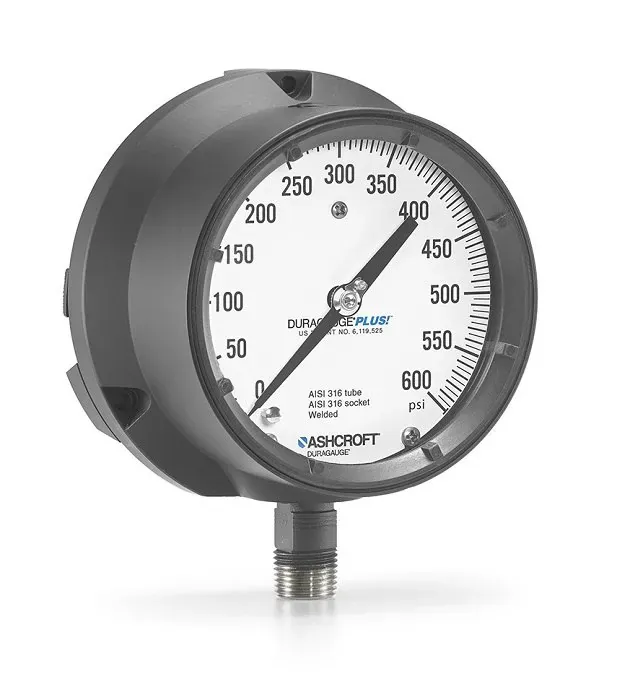

Ashcroft 1379 Duragauge Pressure Gauge
Quote on request
No online payment · add lines to RFQ BOM
Duragauge; to 100,000 psi; ±0.5% Grade 2A; 4.5/6/8.5 in. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Vacuum, compound, 15 to 100,000 psi (50k–100k psi in 6 in. case)
Accuracy
±0.5% of span (ASME B40.100 Grade 2A)
Accuracy % FS
0.5
Output
none (mechanical dial)
Process connection
¼ NPT, ½ NPT, 9/16-18 UNF-2B high-pressure; lower or back
Wetted parts
Bourdon tube/socket material options per 1379 datasheet (SS, steel, Monel, bronze)
Fits high-range process pressure indication where you need an Ashcroft 1379 Duragauge covering vacuum to 100,000 psi (50k–100k in 6 in case) with ±0.5% Grade 2A accuracy.
Key advantages
- Ranges — Vacuum, compound, 15 to 100,000 psi
- Accuracy — ±0.5% of span (ASME Grade 2A)
- Dials — 4.5 / 6 / 8.5 in solid-front Duragauge
- Case — Process solid-front construction
- Use — High-pressure process local indication
Typical applications
- High-pressure process gauges.
- Large-dial control-room adjacent indication.
- Vacuum through ultra-high psi Duragauge.
Selection guide
- Dial size — 4.5 vs 6 vs 8.5 in
- Ultra-high range — 50k–100k needs 6 in
- Connection / tube — Material system
- Fill options — Per datasheet
Common mistakes
- Wrong dial size for ultra-high ranges.
- Underspecifying tube material.
- Ignoring solid-front safety preference.
When to RFQ / what to tell us
- Dial size, range, connection, materials.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 30753 |
| Brand | Ashcroft |
| Model | 1379 Duragauge Pressure Gauge |
| Product type | Pressure Gauge |
| Range | Vacuum, compound, 15 to 100,000 psi (50k–100k psi in 6 in. case) |
| Accuracy | ±0.5% of span (ASME B40.100 Grade 2A) |
| Notes | Solid-front Duragauge process gauge, 4.5/6/8.5 in. dials |
Documents
FAQ
Q: Max pressure? A: To 100,000 psi class (6 in case for 50k–100k).
Q: Accuracy? A: ±0.5% of span (Grade 2A).
Q: What should I send for a quote? A: Size/range/connection, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Vacuum, compound, 15 to 100,000 psi (50k–100k psi in 6 in. case) |
| Accuracy | ±0.5% of span (ASME B40.100 Grade 2A) |
| Accuracy % FS | 0.5 |
| Output | none (mechanical dial) |
| Process connection | ¼ NPT, ½ NPT, 9/16-18 UNF-2B high-pressure; lower or back |
| Wetted parts | Bourdon tube/socket material options per 1379 datasheet (SS, steel, Monel, bronze) |
| Housing | Aluminum solid-front case (4½″ / 6″ / 8½″ dial sizes) |
| Protection | Liquid filled IP66; hermetically sealed IP68 (per datasheet weather-protection table) |
| Media temperature | Per fill/dry tables in 1379 datasheet (similar Duragauge family limits) |
| Ambient temperature | Per fill/dry tables in 1379 datasheet |
| Pressure type | gauge |
| Display | 4½″, 6″ or 8½″ dial; micrometer adjustable pointer |
| Approvals | CE; CRN |
| Fill fluid | Dry, liquid fill, hermetically sealed options |
| Mounting | Stem, surface, flush; high-pressure mounting variants |
| Notes | Ashcroft 1379 Duragauge datasheet. Solid-front aluminum process gauge; high-pressure ranges to 100,000 psi. |
| Diaphragm Seal | Compatible with Ashcroft diaphragm seal assemblies |
