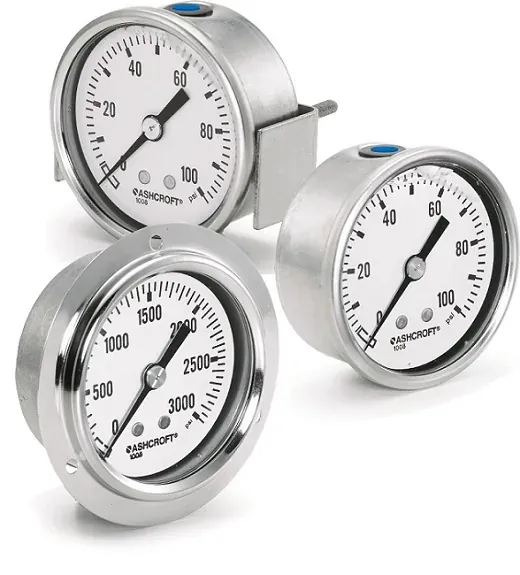

Ashcroft 1008D Analog Pressure Gauges
Quote on request
No online payment · add lines to RFQ BOM
1008 dry SS gauge; to 15,000 psi; Grade B; 63/100 mm. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Vacuum, compound to 15,000 psi (63/100 mm 1008S/SL)
Accuracy
Dry ±1.6% of span; liquid-filled ±2% of span (OEM 1008S 63/100 mm datasheet)
Accuracy % FS
1.6
Output
none (mechanical dial)
Process connection
1/8 NPT Male, 1/4 NPT Male (and listed metric/SAE options); lower / lower back / top / 3 o'clock / 9 o'clock
Wetted parts
316 SS Bourdon tube; 316 stainless steel process connection (welded)
Fits dry stainless-case utility gauging where you need an Ashcroft 1008D covering vacuum to 15,000 psi with ASME Grade B accuracy in 63 or 100 mm sizes.
Key advantages
- Ranges — Vacuum, compound, gauge to 15,000 psi
- Accuracy — ASME Grade B (±3%/±2%/±3%)
- Case — 63 mm or 100 mm stainless; dry (D) configuration
- Connection — 1/4 NPT lower or center-back
- Alt — Liquid-filled siblings as 1008AL
Typical applications
- Dry utility pressure indication.
- OEM panels preferring dry cases.
- General industrial local gauges.
Selection guide
- Dry vs liquid-filled — Vibration
- Dial size — 63 vs 100 mm
- Mount — Lower vs back
- Range/scale — psi/bar
Common mistakes
- Using dry gauges on severe vibration without PLUS!/fill.
- Wrong mount for panel.
- Over-range damage.
When to RFQ / what to tell us
- Size, range, mount.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 30756 |
| Brand | Ashcroft |
| Model | 1008D |
| Product type | Pressure Gauge |
| Type | Ashcroft 1008 stainless case analog pressure gauge — dry (D) configuration |
| Accuracy | ASME B40.100 Grade B (±3% first/last quarter, ±2% middle half) |
| Sizes | 63 mm or 100 mm stainless steel case |
| Ranges | Vacuum, compound, gauge to 15,000 psi |
| Connection | 1/4 NPT lower or center-back |
| Case fill | Dry (1008D); liquid-filled variants available as 1008AL |
| Wetted | Bourdon tube / socket per Ashcroft 1008 datasheet |
Documents
FAQ
Q: Dry vs 1008AL? A: 1008D is dry; 1008AL is liquid-filled.
Q: Accuracy? A: ASME B40.100 Grade B.
Q: What should I send for a quote? A: Size/range/mount, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Vacuum, compound to 15,000 psi (63/100 mm 1008S/SL) |
| Accuracy | Dry ±1.6% of span; liquid-filled ±2% of span (OEM 1008S 63/100 mm datasheet) |
| Accuracy % FS | 1.6 |
| Output | none (mechanical dial) |
| Process connection | 1/8 NPT Male, 1/4 NPT Male (and listed metric/SAE options); lower / lower back / top / 3 o'clock / 9 o'clock |
| Wetted parts | 316 SS Bourdon tube; 316 stainless steel process connection (welded) |
| Housing | 304 SS case with crimped 304 SS ring |
| Protection | IP65 (plug closed), IP54 (plug vented); NEMA 4X (plug closed) |
| Media temperature | Dry −40…121 °C process; fills per datasheet min/max table |
| Ambient temperature | Dry −40…93 °C; PLUS!/glycerin/silicone/halocarbon fills per datasheet |
| Pressure type | gauge |
| Display | 63 mm or 100 mm dial, black figures on white aluminum |
| Approvals | CRN; RoHS; PED; CE/UKCA; NSF-61 |
| Fill fluid | Dry liquid-fillable or glycerin standard liquid fill; silicone/Halocarbon/PLUS! options |
| Mounting | U-clamp, back flange, front flange |
| Notes | Catalog name 1008D maps to Ashcroft 1008S/SL stainless analog family (OEM 63/100 mm datasheet). Distinct from 30750 1008A/AL brass system. |
