Ashcroft

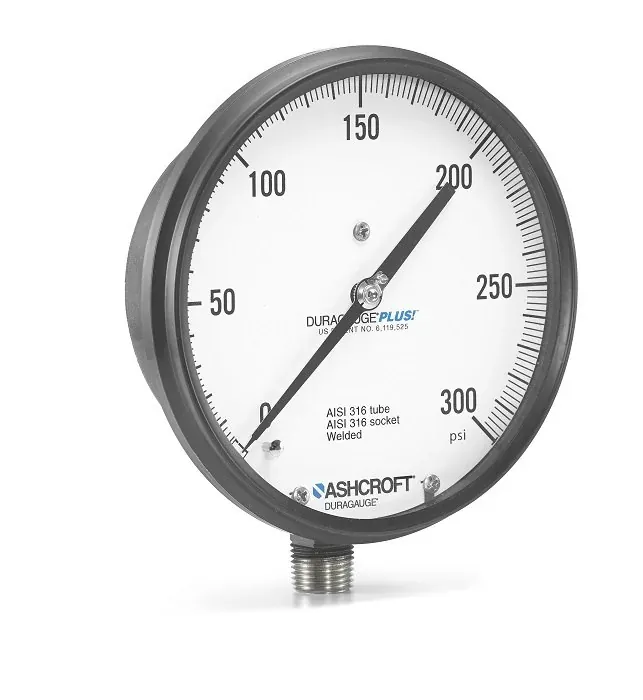

Ashcroft 2462 Duragauge Pressure Gauge
Quote on request
No online payment · add lines to RFQ BOM
6 in Duragauge; to 30,000 psi; ±0.5% Grade 2A. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Vacuum to 30,000 psi (6-inch Duragauge solid-front case)
Accuracy
±0.5% of span (ASME B40.100 Grade 2A / Duragauge class)
Accuracy % FS
0.5
Output
none (mechanical dial)
Supply
none (mechanical)
Process connection
Lower or back connection options (see 2462 outline drawings 02L/02B)
Fits large-dial process pressure indication where you need an Ashcroft 2462 6-inch Duragauge covering vacuum to 30,000 psi with ±0.5% of span (ASME Grade 2A).
Key advantages
- Ranges — Vacuum to 30,000 psi
- Accuracy — ±0.5% of span (Grade 2A / Duragauge class)
- Case — 6-inch (150 mm) solid-front polypropylene
- Connection — Lower or back (02L/02B outlines)
- Fill — Dry or liquid-filled Duragauge options
Typical applications
- Process local pressure with large dial.
- Solid-front safety-case indication.
- High-pressure Duragauge service.
Selection guide
- Connection — Lower vs back
- Fill — Dry vs liquid
- Range — Including high psi
- Tube/socket materials
Common mistakes
- Confusing with 4.5 in 1279 when 6 in readability is required.
- Wrong connection outline.
- Underspecifying Bourdon materials.
When to RFQ / what to tell us
- Range, connection, fill, materials.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 30759 |
| Brand | Ashcroft |
| Model | 2462 Duragauge |
| Product type | Pressure Gauge |
| Measuring range | Vacuum to 30,000 psi (6-inch Duragauge solid-front case) |
| Accuracy | ±0.5% of span (ASME B40.100 Grade 2A / Duragauge class) |
| Process connection | Lower or back connection options (see 2462 outline drawings 02L/02B) |
| Case size | 6-inch (150 mm) solid-front polypropylene case |
| Case fill | Dry or liquid-filled Duragauge options per datasheet |
| Wetted materials | Bourdon tube system per Ashcroft 2462 Duragauge datasheet |
Documents
FAQ
Q: Dial size? A: 6-inch (150 mm) Duragauge.
Q: Accuracy? A: ±0.5% of span (Grade 2A).
Q: What should I send for a quote? A: Range/connection/fill, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Vacuum to 30,000 psi (6-inch Duragauge solid-front case) |
| Accuracy | ±0.5% of span (ASME B40.100 Grade 2A / Duragauge class) |
| Accuracy % FS | 0.5 |
| Output | none (mechanical dial) |
| Supply | none (mechanical) |
| Process connection | Lower or back connection options (see 2462 outline drawings 02L/02B) |
| Wetted parts | Bourdon tube system per Ashcroft 2462 Duragauge datasheet |
| Ambient temperature | Per Ashcroft Duragauge datasheet / installation manual |
| Approvals | ASME B40.100; solid-front safety case design |
| Sensor type | Bourdon-tube process pressure gauge (2462 Duragauge) |
| Case Size | 6-inch (150 mm) solid-front polypropylene case |
| Case Fill | Dry or liquid-filled Duragauge options per datasheet |
