Alicat Scientific

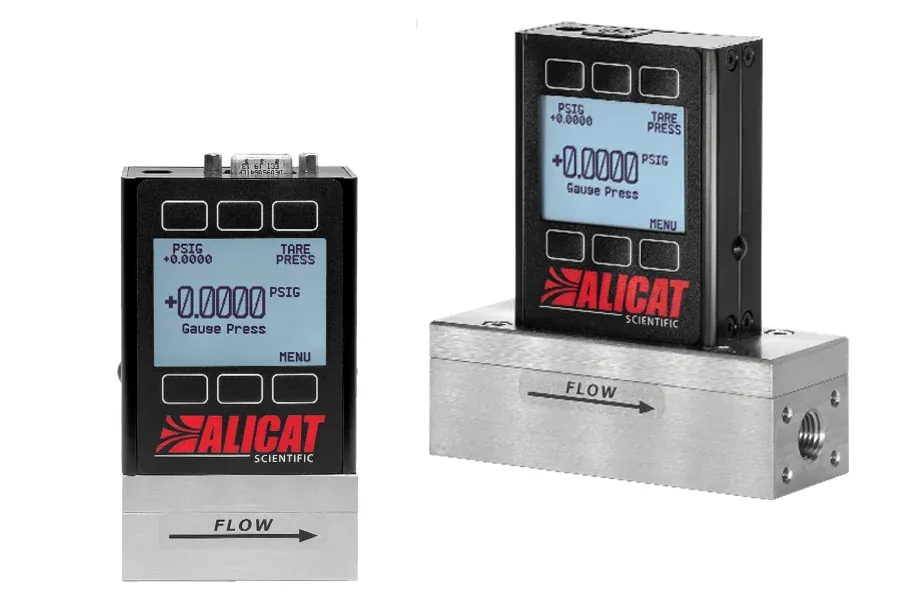

Alicat Scientific P-Series Pressure Meter
Quote on request
No online payment · add lines to RFQ BOM
Alicat P/PS Series: pressure meter; 0.07–3000 PSI FS; ±0.25% FS; abs/gauge/diff. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
Standard ±0.25% FS; high-accuracy option ±0.125% FS
Type
Electronic pressure meter for flowing processes (P / PS Series)
Ranges
0.07–3000 PSI full scale; absolute, gauge, or differential
Repeatability
±0.08% of full scale (2σ)
Measurement Range
0.5–100% of full scale
Response
Sensor <1 ms; typical indication <10 ms
Fits electronic pressure metering on flowing processes where you need an Alicat Scientific P / PS Series. Pressure meter spanning 0.07–3000 PSI full scale in absolute, gauge or differential versions, standard accuracy ±0.25% FS (high-accuracy ±0.125% FS), repeatability ±0.08% FS, and measurement range 0.5–100% of full scale.
Key advantages
- Ranges — 0.07–3000 PSI FS
- Modes — Absolute / gauge / differential
- Accuracy — ±0.25% FS (std)
- Repeatability — ±0.08% FS
- Span — 0.5–100% FS measurement
Typical applications
- Process pressure metering.
- Lab absolute/gauge reads.
- Differential pressure checks.
Selection guide
- Range / mode
- Accuracy option
- Fittings / comms
Common mistakes
- Wrong abs vs gauge.
- Overrange.
- Ignoring 0.5% FS floor.
When to RFQ / what to tell us
- Range/mode/options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 48580 |
| Brand | Alicat Scientific |
| Model | P Series Pressure Gauge |
| Product type | Pressure Meter |
| Type | Electronic pressure meter for flowing processes (P / PS Series) |
| Ranges | 0.07–3000 PSI full scale; absolute, gauge, or differential |
| Accuracy | Standard ±0.25% FS; high-accuracy option ±0.125% FS |
| Repeatability | ±0.08% of full scale (2σ) |
| Measurement range | 0.5–100% of full scale |
Documents
FAQ
Q: Accuracy? A: ±0.25% FS standard.
Q: Modes? A: Absolute, gauge, or differential.
Q: What should I send for a quote? A: Range/mode/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | Standard ±0.25% FS; high-accuracy option ±0.125% FS |
| Type | Electronic pressure meter for flowing processes (P / PS Series) |
| Ranges | 0.07–3000 PSI full scale; absolute, gauge, or differential |
| Repeatability | ±0.08% of full scale (2σ) |
| Measurement Range | 0.5–100% of full scale |
| Response | Sensor <1 ms; typical indication <10 ms |
| Operating Temp | −10–60 °C |
| Outputs | RS-232/485 Modbus; industrial Ethernet/fieldbus options; 4–20 mA / 0–5 / 0–10 V |
| Protection | IP40 (weatherproof options) |
| Connection | Default 1/8″ NPT female; alternate process connections available |
