Ashcroft

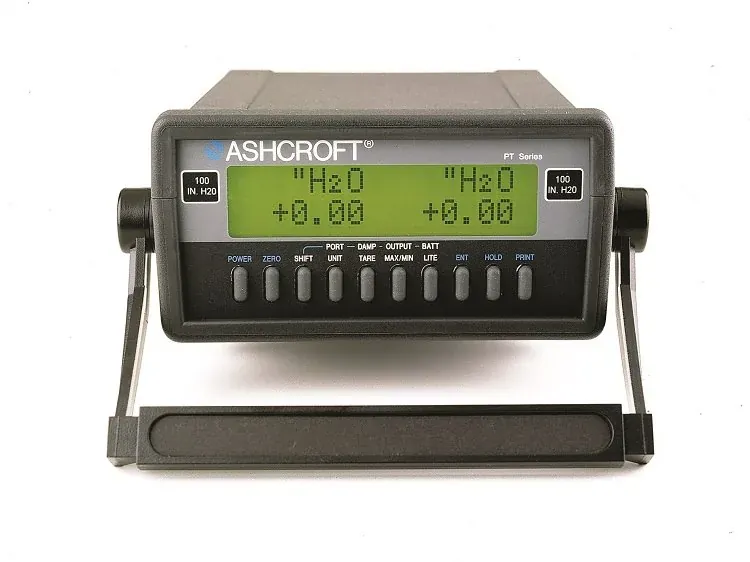

Ashcroft PT-1 Digital Indicator
Quote on request
No online payment · add lines to RFQ BOM
Ashcroft PT-1: 0.25–200 in H2O and 5–10,000 psi modules. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
0.25 inH2O to 10,000 psi via permanently installed PPT-1/PPT-2 pressure modules (single or dual)
Accuracy
From ±0.1% to ±0.025% of span depending on range/module (low-pressure capacitive ±0.1%/±0.06%/±0.07%; medium/high ±0.025%/±0.05%/±0.1%)
Output
RS-232 digital interface; dual-line LCD display (no analog process output)
Supply
110 Vac/60 Hz adapter standard; optional 220 Vac/50 Hz, 100 Vac, NiCd or alkaline pack
Process connection
1/8 NPT female
Wetted parts
PPM1 non-isolated (clean dry gas); PPM2 316 stainless steel media compatible
Fits modular digital pressure indication where you need an Ashcroft PT-1—digital indicator supporting modules from about 0.25–200 in H2O and 5–10,000 psi for lab and field pressure readout.
Key advantages
- Low range — About 0.25–200 in H2O modules
- High range — About 5–10,000 psi modules
- Platform — Ashcroft PT-1 digital indicator
- Use — Modular digital pressure indication
- Form — Digital pressure indicator
Typical applications
- Bench pressure indication.
- Field pressure readout.
- Module-swappable pressure checks.
Selection guide
- Module range
- Media compatibility
- Power / display options
Common mistakes
- Wrong module for span.
- Overpressure.
- Ignoring units setup.
When to RFQ / what to tell us
- Modules.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 42121 |
| Brand | Ashcroft |
| Model | PT-1 |
| Product type | Digital Indicator |
| Range | 0.25–200 in H2O and 5–10,000 psi modules |
Documents
FAQ
Q: Module spans? A: About 0.25–200 in H2O and 5–10,000 psi.
Q: Platform? A: Ashcroft PT-1.
Q: What should I send for a quote? A: Modules/quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | 0.25 inH2O to 10,000 psi via permanently installed PPT-1/PPT-2 pressure modules (single or dual) |
| Accuracy | From ±0.1% to ±0.025% of span depending on range/module (low-pressure capacitive ±0.1%/±0.06%/±0.07%; medium/high ±0.025%/±0.05%/±0.1%) |
| Output | RS-232 digital interface; dual-line LCD display (no analog process output) |
| Supply | 110 Vac/60 Hz adapter standard; optional 220 Vac/50 Hz, 100 Vac, NiCd or alkaline pack |
| Process connection | 1/8 NPT female |
| Wetted parts | PPM1 non-isolated (clean dry gas); PPM2 316 stainless steel media compatible |
| Display | 2-line LCD, 0.38 in character height, 16 characters/line; 100 ms update |
| Approvals | NIST-traceable calibration certificate included per pressure module |
| Notes | Specs from Ashcroft PT-1 datasheet Rev E (2023-03-19) and PT Digital Indicator operating manual. Bench-top secondary transfer standard. |
| Resolution | ±0.002% of span (max.) |
| Repeatability | ±0.01% of span (psi ranges and 1–200 inH2O); ±0.02% of span below 1 inH2O |
| Operating Temperature | 32 to 120 °F (0 to 49 °C); compensated 20 to 120 °F |
| Case Material | High-impact ABS, black |
