WIKA

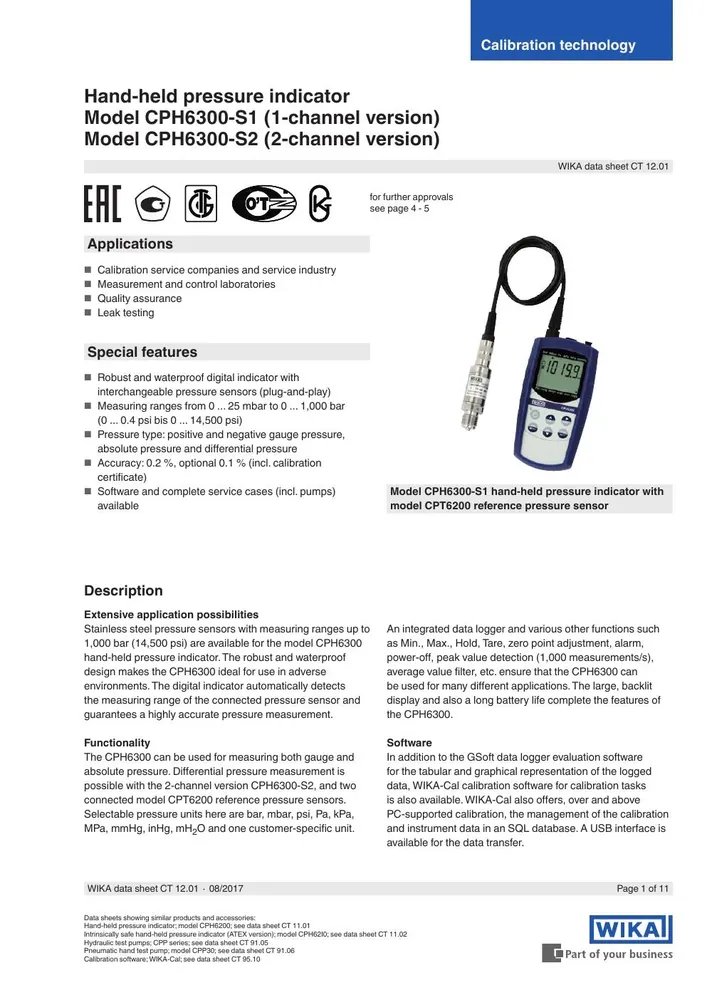

WIKA CPH6300 Hand-Held Pressure Indicator
Quote on request
No online payment · add lines to RFQ BOM
WIKA CPH6300: 0…25 mbar to 0…1000 bar via CPT6200; 0.2%/0.1% FS. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
0…25 mbar to 0…1,000 bar (0…0.4 to 0…14,500 psi) via CPT6200 sensors
Accuracy
0.2% FS (4-digit); optional 0.1% FS (4½-digit) with calibration certificate
Display
Large 4½-digit LC display with backlighting; dual pressure indication
Notes
Specs from WIKA CT 12.01. No Instrumart.
Pressure Types
Positive/negative gauge, absolute; differential with CPH6300-S2 (two sensors)
Pressure Units
bar, mbar, psi, Pa, kPa, MPa, mmHg, inHg, mH2O + customer unit
Fits portable pressure indication where you need a WIKA CPH6300—hand-held indicator covering about 0…25 mbar to 0…1,000 bar via CPT6200 sensors, with 0.2% FS accuracy (optional 0.1% FS), dual-sensor differential option, data logging and IP65/IP67 protection.
Key advantages
- Range — About 0…25 mbar to 0…1,000 bar via CPT6200
- Accuracy — 0.2% FS; optional 0.1% FS
- Types — Gauge, absolute; differential with two sensors
- Logger — Up to 1,000 individual / 10,000 cyclic points
- Ingress — IP65 and IP67
Typical applications
- Field pressure checks.
- Transmitter comparison.
- Leak / rate tests.
Selection guide
- Sensor range / accuracy
- One vs two sensors
- Calibration cert
Common mistakes
- Wrong sensor range.
- Ignoring media compatibility.
- Skipping zero adjust.
When to RFQ / what to tell us
- Sensor ranges/accuracy.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 43290 |
| Brand | WIKA |
| Model | CPH6300 Pressure Indicator |
| Product type | Handheld Pressure Indicator |
| Measuring range | 0…25 mbar to 0…1,000 bar (0…0.4 to 0…14,500 psi) via CPT6200 sensors |
| Pressure types | Positive/negative gauge, absolute; differential with CPH6300-S2 (two sensors) |
| Accuracy | 0.2% FS (4-digit); optional 0.1% FS (4½-digit) with calibration certificate |
| Display | Large 4½-digit LC display with backlighting; dual pressure indication |
| Data logger | Individual up to 1,000 points; cyclic up to 10,000 values with time stamp |
| Sensor compatibility | Model CPT6200 reference pressure sensors (plug-and-play) |
| Ingress protection | IP65 and IP67 |
| Battery life | >500 hours (1 sensor @ 4/s) |
Documents
FAQ
Q: Accuracy? A: 0.2% FS; optional 0.1% FS.
Q: Sensors? A: Model CPT6200 plug-and-play.
Q: What should I send for a quote? A: Sensor ranges, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | 0…25 mbar to 0…1,000 bar (0…0.4 to 0…14,500 psi) via CPT6200 sensors |
| Accuracy | 0.2% FS (4-digit); optional 0.1% FS (4½-digit) with calibration certificate |
| Display | Large 4½-digit LC display with backlighting; dual pressure indication |
| Notes | Specs from WIKA CT 12.01. No Instrumart. |
| Pressure Types | Positive/negative gauge, absolute; differential with CPH6300-S2 (two sensors) |
| Pressure Units | bar, mbar, psi, Pa, kPa, MPa, mmHg, inHg, mH2O + customer unit |
| Data Logger | Individual up to 1,000 points; cyclic up to 10,000 values with time stamp |
| Functions | Backlight, Min/Max, Hold, Tare, zero-point adjustment, leak/rate test |
| Sensor Compatibility | Model CPT6200 reference pressure sensors (plug-and-play) |
| Ingress Protection | IP65 and IP67 |
| Operating Temperature | −25 to +50 °C (−13 to +122 °F) |
| Battery Life | >500 hours (1 sensor @ 4/s) |
| Weight | approx. 250 g (0.55 lb) incl. batteries and protective casing |
| Document | WIKA data sheet CT 12.01 |
