Druck

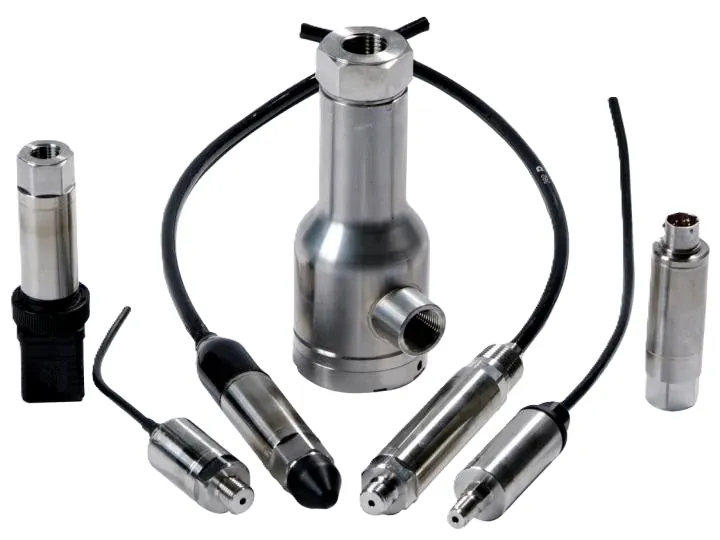

Druck UNIK 5000 Pressure Sensing Platform
Quote on request
No online payment · add lines to RFQ BOM
Configurable pressure sensor. 70 mbar–700 bar; to ±0.04% FS BSL. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
To +/-0.04% FS Best Straight Line (BSL)
Type
Configurable micromachined silicon pressure sensing platform (UNIK 5000)
Ranges
70 mbar (1 psi) to 700 bar (10000 psi)
Construction
Stainless steel
Frequency Response
To 3.5 kHz
Outputs
mV, mA, voltage and configurable voltage outputs
Fits OEM and process pressure sensing where you need a configurable Druck UNIK 5000 silicon platform from 70 mbar to 700 bar with selectable outputs.
Key advantages
- Configurable platform — Configurable micromachined silicon pressure sensing platform (UNIK 5000)
- Ranges — 70 mbar (1 psi) to 700 bar (10000 psi)
- Accuracy — To +/-0.04% FS Best Straight Line (BSL)
- Outputs — mV, mA, voltage and configurable voltage outputs
- Environment — Stainless steel construction; operating temp -55 to +125 C class; hazardous-area options
Typical applications
- OEM machine builds configuring one platform across many spans.
- Process skids needing Premium BSL accuracy with 4–20 mA or voltage.
- Points needing listed hazardous-area certifications and connector options.
Selection guide
- Pressure range / type — gauge/absolute/differential per order code; 70 mbar–700 bar
- Accuracy grade — up to ±0.04% FS BSL
- Output — mV, mA, voltage, configurable voltage
- Connectors / approvals — electrical and pressure connectors; hazardous-area options
Common mistakes
- Leaving output and connector undefined — UNIK 5000 is an option tree, not a single SKU.
- Assuming ±0.04% FS on every build — lock the accuracy grade.
- Ignoring frequency-response needs (to 3.5 kHz class) on dynamic applications.
When to RFQ / what to tell us
- Pressure type and span.
- Accuracy grade and output signal.
- Process/electrical connectors; hazardous-area needs; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 11223 |
| Brand | Druck |
| Model | UNIK 5000 Pressure Sensing Platform |
| Product type | Pressure Sensing Platform |
| Type | Configurable micromachined silicon pressure sensing platform (UNIK 5000) |
| Ranges | 70 mbar (1 psi) to 700 bar (10000 psi) |
| Accuracy | To +/-0.04% FS Best Straight Line (BSL) |
| Construction | Stainless steel |
| Frequency response | To 3.5 kHz |
| Outputs | mV, mA, voltage and configurable voltage outputs |
| Operating temperature | -55 to +125 C (-67 to +257 F) class |
| Options | Hazardous area certifications; multiple electrical and pressure connectors |
Documents
FAQ
Q: What range class? A: 70 mbar (1 psi) to 700 bar (10000 psi).
Q: What accuracy is published? A: To ±0.04% FS Best Straight Line (BSL), grade-dependent.
Q: What should I send for a quote? A: Span, output, connectors/approvals, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | To +/-0.04% FS Best Straight Line (BSL) |
| Type | Configurable micromachined silicon pressure sensing platform (UNIK 5000) |
| Ranges | 70 mbar (1 psi) to 700 bar (10000 psi) |
| Construction | Stainless steel |
| Frequency Response | To 3.5 kHz |
| Outputs | mV, mA, voltage and configurable voltage outputs |
| Operating Temp | -55 to +125 C (-67 to +257 F) class |
| Options | Hazardous area certifications; multiple electrical and pressure connectors |
| Overpressure | High overpressure capability (model dependent) |
| Document | Druck UNIK 5000 Datasheet English |
