Rosemount

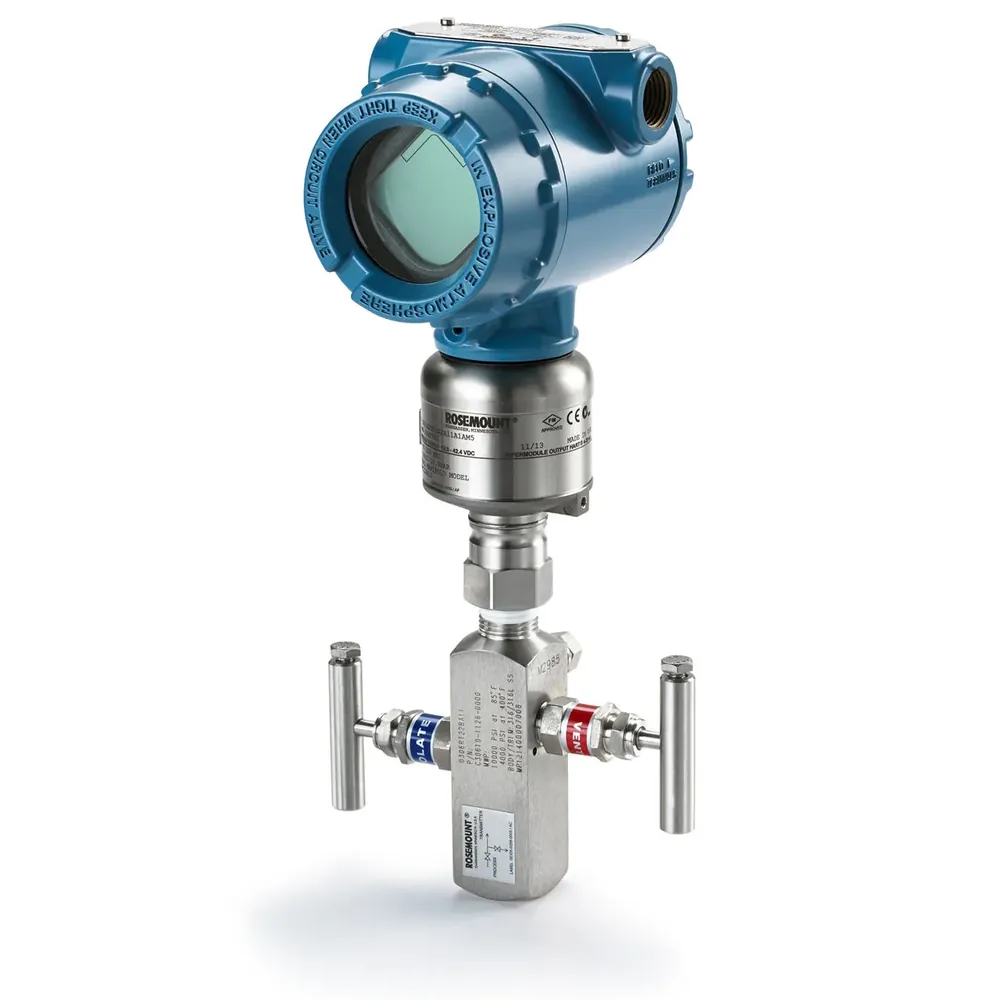

Rosemount 3051S In-Line Pressure Transmitter
Quote on request
No online payment · add lines to RFQ BOM
3051S in-line; Ultra 0.025% span; HART/FF/WirelessHART. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Gauge −14.7…30 to −14.7…10,000 psi; absolute 0…30 to 0…10,000 psia (ranges 1A–5A)
Accuracy
Ultra 0.025% of span; Classic 0.035% of span
Output
4–20 mA HART; WirelessHART; FOUNDATION Fieldbus
Process connection
½–14 NPT female; G½ A DIN 16288; autoclave F-250-C (5A); I-flange
Wetted parts
316L SST or Alloy C-276 isolating diaphragm (NACE options)
Housing
Aluminum or SST housing options
Fits high-performance in-line gauge/absolute pressure where you need a Rosemount 3051S with Ultra 0.025% of span accuracy and HART, FOUNDATION Fieldbus, or WirelessHART.
Key advantages
- Range — Gauge −14.7…30 to −14.7…10,000 psi; absolute 0…30 to 0…10,000 psia (1A–5A)
- Accuracy — Ultra 0.025% of span; Classic 0.035% of span
- Outputs — 4–20 mA HART; WirelessHART; FOUNDATION Fieldbus
- Connection — ½–14 NPT; G½ A; autoclave F-250-C (5A); I-flange
- Wetted — 316L SST or Alloy C-276 diaphragms; SIL / hazardous-area options
Typical applications
- In-line process gauge/absolute pressure.
- High-accuracy 3051S SuperModule installations.
- WirelessHART pressure points without impulse tubing runs.
Selection guide
- Range code — 1A–5A vs process P
- Performance — Ultra vs Classic
- Protocol — HART / FF / WirelessHART
- Materials / approvals — Diaphragm and SIL/Ex codes
Common mistakes
- Ordering Coplanar when in-line type T is required.
- Undersizing range code vs overpressure.
- Mismatched protocol vs host system.
When to RFQ / what to tell us
- P type/range; protocol.
- Materials; approvals; connection.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 22110 |
| Brand | Rosemount / Emerson |
| Model | 3051S In Line Pressure Transmitter |
| Product type | Pressure Transmitter |
| Measuring range | Gauge −14.7…30 to −14.7…10,000 psi; absolute 0…30 to 0…10,000 psia (ranges 1A–5A) |
| Accuracy | Ultra 0.025% of span; Classic 0.035% of span |
| Output | 4–20 mA HART; WirelessHART; FOUNDATION Fieldbus |
| Process connection | ½–14 NPT female; G½ A DIN 16288; autoclave F-250-C (5A); I-flange |
| Wetted materials | 316L SST or Alloy C-276 isolating diaphragm (NACE options) |
| Housing | Aluminum or SST housing options |
| IP rating | IP66/IP68 / Type 4X (housing-dependent) |
| Pressure type | Gauge / absolute (in-line connection type T) |
| Communication | HART; WirelessHART; FOUNDATION Fieldbus |
| Approvals | SIL (QT); ATEX/IECEx/FM/CSA options by model code |
Documents
FAQ
Q: Ultra accuracy? A: 0.025% of span (Ultra); 0.035% Classic.
Q: In-line vs Coplanar? A: This SKU is in-line connection type T.
Q: What should I send for a quote? A: Range/protocol/materials, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Gauge −14.7…30 to −14.7…10,000 psi; absolute 0…30 to 0…10,000 psia (ranges 1A–5A) |
| Accuracy | Ultra 0.025% of span; Classic 0.035% of span |
| Output | 4–20 mA HART; WirelessHART; FOUNDATION Fieldbus |
| Process connection | ½–14 NPT female; G½ A DIN 16288; autoclave F-250-C (5A); I-flange |
| Wetted parts | 316L SST or Alloy C-276 isolating diaphragm (NACE options) |
| Housing | Aluminum or SST housing options |
| Protection | IP66/IP68 / Type 4X (housing-dependent) |
| Pressure type | Gauge / absolute (in-line connection type T) |
| Communication | HART; WirelessHART; FOUNDATION Fieldbus |
| Approvals | SIL (QT); ATEX/IECEx/FM/CSA options by model code |
