Rosemount

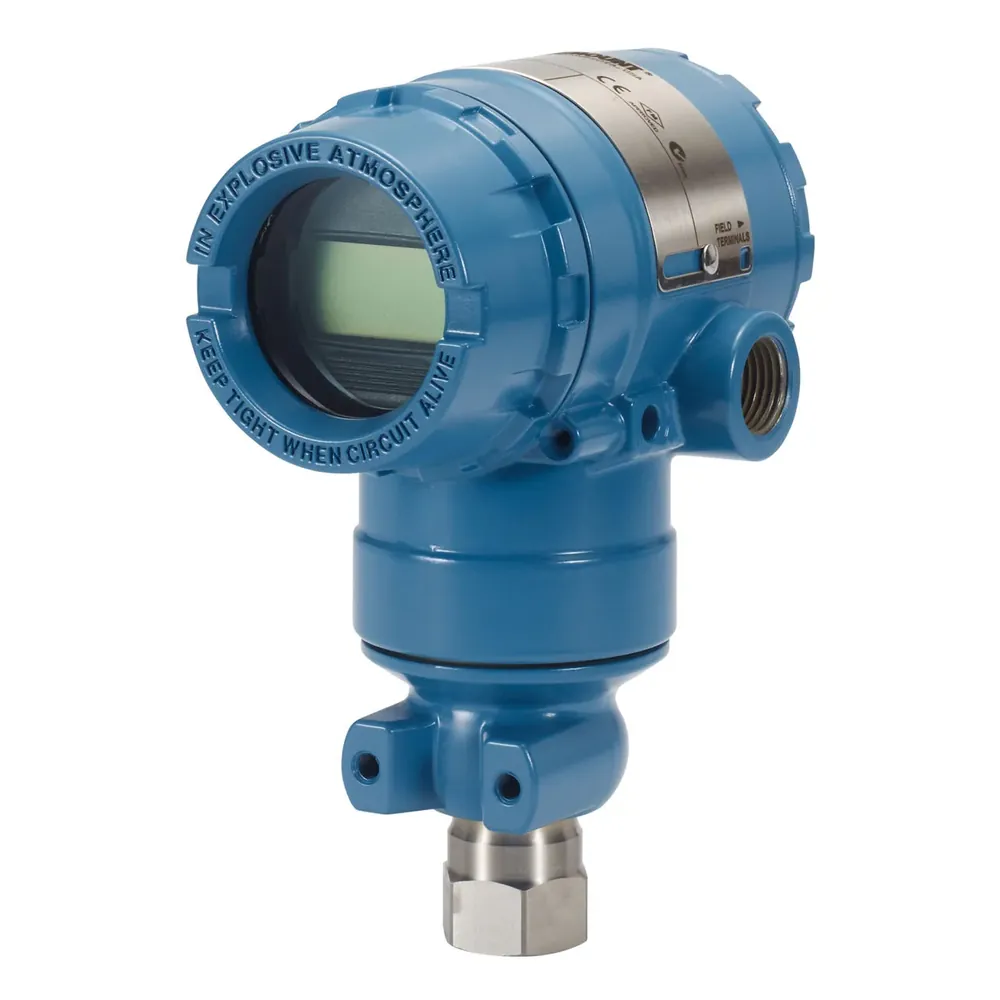

Rosemount 2051T In-Line Pressure Transmitter
Quote on request
No online payment · add lines to RFQ BOM
2051T gage/absolute in-line; to 10,000 psi class; HART/FF/PA/WirelessHART; SIL2/3. RFQ range.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
Up to 0.05% high-accuracy option; best-in-class standard performance
Type
In-line gage/absolute pressure transmitter (Rosemount 2051T)
Platform
Rosemount 2051 / Coplanar family; in-line process connection
Safety
SIL2/3 certification to IEC 61508 available on 4–20 mA HART
Interface
Local Operator Interface (LOI) for on-transmitter configuration
Hart Revision
Selectable HART revision for plant migration
Fits in-line gage or absolute pressure where you need a Rosemount 2051T on the 2051 platform—ranges to 10,000 psi class with HART, Fieldbus, PROFIBUS PA, or WirelessHART.
Key advantages
- Platform — Rosemount 2051 family; in-line process connection
- Range — Up to 10,000 psi (689.5 bar) model dependent; gage and absolute
- Accuracy option — Up to 0.05% high-accuracy class
- Protocols — 4–20 mA HART; FOUNDATION Fieldbus; PROFIBUS PA; WirelessHART
- Safety — SIL2/3 to IEC 61508 available on 4–20 mA HART
Typical applications
- In-line process pressure.
- Utility header monitoring.
- SIL loops needing certified 2051T.
Selection guide
- Gage vs absolute
- Range / sensor module
- Protocol / wireless
- SIL / approvals
Common mistakes
- Ordering Coplanar 2051C when in-line 2051T is required.
- Under-ranging max working pressure.
- Skipping fill-fluid compatibility.
When to RFQ / what to tell us
- Gage/abs, range, protocol, SIL.
- Process connection, quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 33221 |
| Brand | Rosemount / Emerson |
| Model | 2051T Pressure Transmitter |
| Product type | Pressure Transmitter |
| Type | In-line gage/absolute pressure transmitter (Rosemount 2051T) |
| Platform | Rosemount 2051 / Coplanar family; in-line process connection |
| Range | Up to 10,000 psi (689.5 bar) model dependent; gage and absolute options |
| Accuracy | Up to 0.05% high-accuracy option; best-in-class standard performance |
| Output | 4–20 mA HART; FOUNDATION Fieldbus; PROFIBUS PA; WirelessHART (IEC 62591) |
| Safety | SIL2/3 certification to IEC 61508 available on 4–20 mA HART |
| Interface | Local Operator Interface (LOI) for on-transmitter configuration |
Documents
FAQ
Q: Max pressure? A: Up to 10,000 psi class, model dependent.
Q: Wireless? A: WirelessHART (IEC 62591) option on the 2051 platform.
Q: What should I send for a quote? A: Gage/abs, range, protocol, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | Up to 0.05% high-accuracy option; best-in-class standard performance |
| Type | In-line gage/absolute pressure transmitter (Rosemount 2051T) |
| Platform | Rosemount 2051 / Coplanar family; in-line process connection |
| Safety | SIL2/3 certification to IEC 61508 available on 4–20 mA HART |
| Interface | Local Operator Interface (LOI) for on-transmitter configuration |
| Hart Revision | Selectable HART revision for plant migration |
| Document | PDS 00813-0100-4101 Rev RG + Reference Manual 00809-0100-4101 |
| Application | Gage / absolute process pressure measurement |
| Family | Related 2051C coplanar / 2051L level; in-line photo shared with 2051 in-line SKUs |
