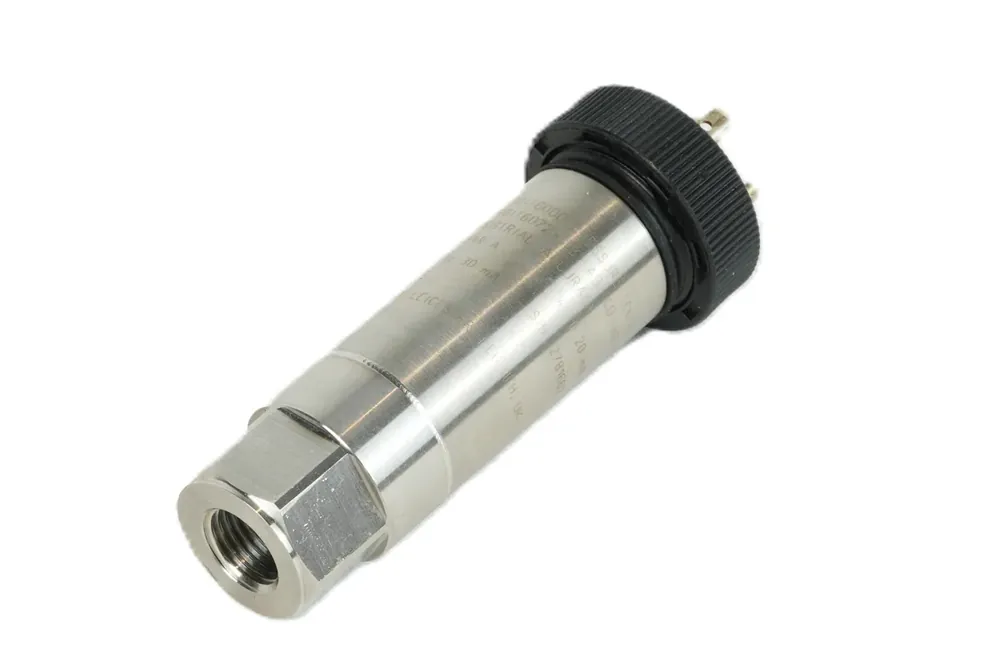

Druck ADROIT6000 Pressure Sensor

Fits OEM and process builds that need a configurable 25 mm stainless pressure transducer across 68 mbar…700 bar with selectable output electronics, connector, and optional Ex ia — not a single fixed SKU.

Key advantages

Wide pressure ladder — 68 mbar…700 bar (1…10000 psi); gauge / sealed gauge / absolute / barometric / differential variants.
Tight BSL option — non-linearity/hysteresis/repeatability to 0.02% span BSL; total accuracy up to 0.1% span (Improved/Premium).
Multiple outputs — 4–20 mA, 20–4 mA (6200), 0–5 V, configurable 0–10 V.
Connector-dependent IP — IP65…IP68 with broad Ex/CRN marks by code.

Typical applications

OEM machine builders needing a configurable stainless transducer.
Process skids spanning low mbar to hundreds of bar with one family.
Installations that pick electrical connector for the required IP depth.

Selection guide

Measuring range / type — 68 mbar…700 bar (1…10000 psi); gauge / sealed gauge / absolute / barometric / wet-dry & wet-wet differential (ADROIT6000 envelope). State pressure type and span first.
Accuracy — Non-linearity/hysteresis/repeatability to 0.02% span BSL; total accuracy up to 0.1% span (Improved/Premium grades).
Output — 4–20 mA; 20–4 mA (6200); 0–5 V 3-wire; configurable 0–10 V 3-wire.
Supply — ADROIT6000: 4–20 mA 7–28 Vdc; voltage output 5–16 Vdc (must exceed selected Vo by ≥1.5 V).
Process connection — Multiple (G1/4, 1/4 NPT, VCR, UNF, flanges etc. per pressure connector codes).
Electrical connection — None / cable gland / Raychem / depth cable / MIL-C-26482 / DIN 43650 / Micro-DIN / M12x1 / 1/2 NPT conduit / M20×1.5 (by option).
Wetted / housing — Stainless steel 316L (fluids compatible with selected materials/connector); 25 mm diameter body (ADROIT6000).
IP — IP65 to IP68 depending on electrical connector (e.g. M12 IP67; depth cables IP68).

Common mistakes

Quoting a single “ADROIT6000” without the full model code — range, pressure type, accuracy grade, output, and connectors are all options.
Mixing mA supply (7–28 Vdc) with voltage-output excitation (5–16 Vdc, must exceed Vo by ≥1.5 V).
Assuming IP68 on every build; IP is connector-dependent (IP65 to IP68; M12 typically IP67).
Claiming Ex ia / ATEX/IECEx/FM without the hazardous-area option on the order code (−40…+80 °C for that option).
Confusing ADROIT6000 (25 mm) with ADROIT6200 (19 mm / 20–4 mA path) — body diameter and some electronics differ.
Leaving media temperature blank — not filled as a single limit for this model; confirm against the selected compensated range and process duty.

When to RFQ / what to tell us

Pressure type (gauge / sealed gauge / absolute / barometric / wet-dry or wet-wet DP) and required span + units.
Accuracy grade (Improved/Premium) and output (4–20 mA / 0–5 V / 0–10 V).
Process and electrical connectors; IP need; media chemistry (316L compatibility).
Operating temperature and overpressure expectation.
Hazardous-area marks required (ATEX/IECEx Ex ia, FM/FMc IS etc.), quantity, ship-to country.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	48012
Brand	Druck
Model	ADROIT6000
Product type	transducer
Pressure type	gauge / sealed gauge / absolute / barometric / wet-dry & wet-wet differential (by config)
Measuring range	68 mbar…700 bar (1…10000 psi); gauge / sealed gauge / absolute / barometric / wet-dry & wet-wet differential (ADROIT6000 envelope)
Accuracy	Non-linearity/hysteresis/repeatability to 0.02% span BSL; total accuracy up to 0.1% span (Improved/Premium grades)
Output signal	4–20 mA; 20–4 mA (6200); 0–5 V 3-wire; configurable 0–10 V 3-wire
Supply voltage	ADROIT6000: 4–20 mA 7–28 Vdc; voltage output 5–16 Vdc (must exceed selected Vo by ≥1.5 V)
Process connection	Multiple (G1/4, 1/4 NPT, VCR, UNF, flanges etc. per pressure connector codes)
Electrical connection	None / cable gland / Raychem / depth cable / MIL-C-26482 / DIN 43650 / Micro-DIN / M12x1 / 1/2 NPT conduit / M20×1.5 (by option)
Wetted materials	Stainless steel 316L (fluids compatible with selected materials/connector)
Housing material	Stainless steel 316L; 25 mm diameter body (ADROIT6000)
IP rating	IP65 to IP68 depending on electrical connector (e.g. M12 IP67; depth cables IP68)
Ambient temperature	Operating up to −40…+125 °C; survival −55…+150 °C (connector-dependent)
Overpressure limit	Range-dependent (e.g. 4× FS many bands; barometric 2× FS; see datasheet over-pressure table)
Display	none
Approvals	ATEX; IECEx; FM; CSA; CE; RoHS; PED; CRN
Hazardous area	Optional ADROIT6000: ATEX/IECEx Ex ia IIC T4 Ga; FM/FMc IS Class I Div 1; Zone 0 AEx/Ex ia IIC T4 (−40…+80 °C)
Notes	Configurable Baker Hughes / Druck platform (ADROIT6000 25 mm + ADROIT6200 19 mm). Specs are capability envelope; order-specific model code required. Datasheet BHCS39260 / 920-699F family (2026).

Documents

Druck ADROIT6000 datasheet (PDF)

FAQ

Q: Is ADROIT6000 one fixed transmitter? A: No. It is a configurable sensing platform. Range, pressure type, accuracy grade, output, connectors, and approvals are selected by model code — send process data so we can lock a build.

Q: ADROIT6000 vs ADROIT6200? A: ADROIT6000 is the 25 mm body; ADROIT6200 is the 19 mm path (includes 20–4 mA). This page covers the ADROIT6000 envelope — state body preference in the RFQ if both are acceptable.

Q: Which approvals can I claim? A: Datasheet lists ATEX, IECEx, FM, CSA, CE, RoHS, PED, CRN. Hazardous-area Ex ia / IS is optional and temperature-limited (−40…+80 °C) — only marks on the ordered configuration apply.

Q: What should I send for a quote? A: Pressure type and span, accuracy grade, output and supply, connectors, media, temperature, IP / Ex needs, quantity. Compatible with systems using Druck ADROIT6000 if you need a drop-in check — we do not claim authorized-dealer status.
