Rosemount

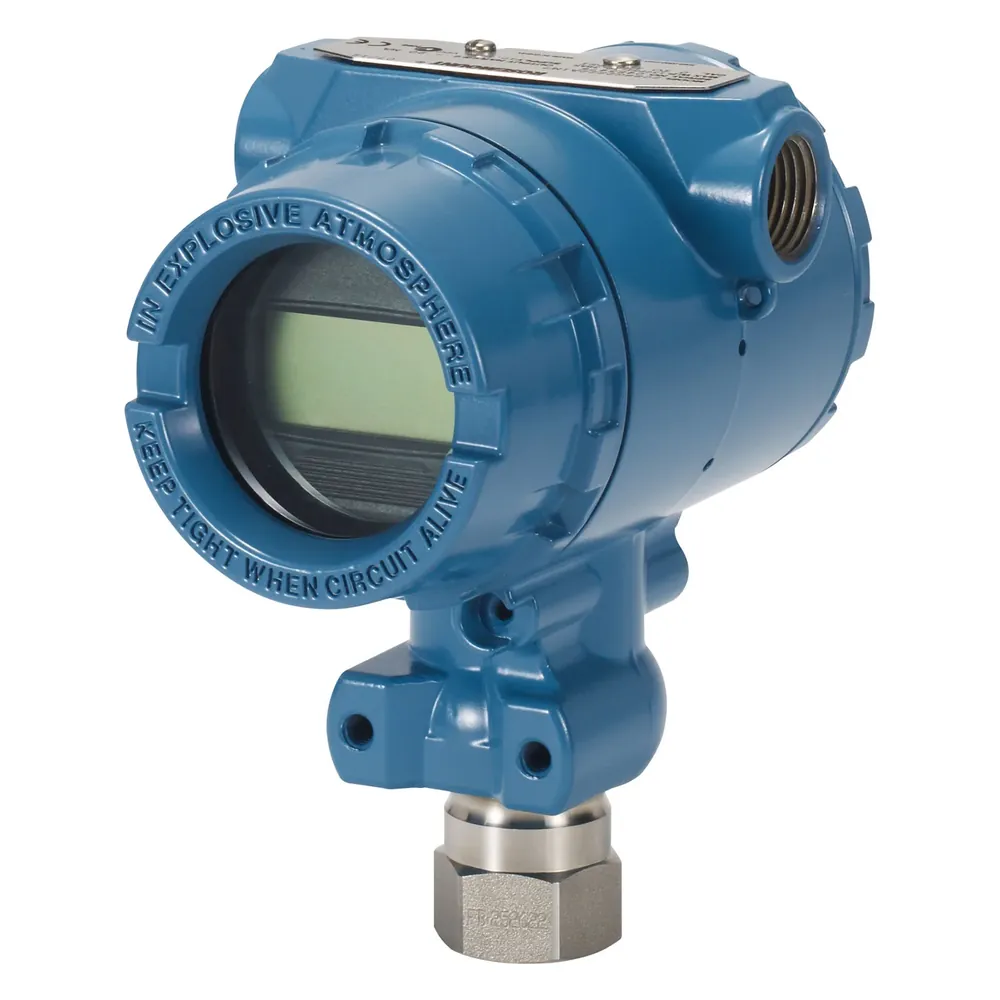

Rosemount 2088 Absolute and Gauge Pressure Transmitter
Quote on request
No online payment · add lines to RFQ BOM
Rosemount 2088: A/G pressure; to 10000 psi; ±0.075% span (±0.065% P8); HART. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±0.075% of calibrated span; ±0.065% with P8 high-accuracy option
Type
Absolute and gauge pressure transmitter — Rosemount 2088
Measurement
Absolute (2088A) and gauge (2088G) pressure
Rangeability
50:1
Enclosure
NEMA 4X / IP66 / IP68 (see PDS)
Document
Rosemount 2088 PDS 00813-0100-4690 Rev QC
Fits compact absolute or gauge pressure where you need a Rosemount 2088. Pressure transmitter in absolute (2088A) and gauge (2088G) versions with gauge −14.7 to 10000 psi and absolute 0–30 to 0–10000 psia across five range codes, accuracy ±0.075% of calibrated span (±0.065% with P8 high-accuracy option), and 4–20 mA HART or 1–5 Vdc HART low-power output.
Key advantages
- Types — Absolute 2088A / gauge 2088G
- Range — To 10000 psi class
- Accuracy — ±0.075% span (±0.065% P8)
- Output — 4–20 mA HART; 1–5 V low power
- Form — Compact pressure transmitter
Typical applications
- Utility pressure.
- Tank / line gauge/abs.
- Compact HART pressure.
Selection guide
- A vs G
- Range code
- P8 / output
Common mistakes
- Wrong A vs G.
- Span vs URL confusion.
- Ignoring P8 option needs.
When to RFQ / what to tell us
- Type/range/output.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 55667 |
| Brand | Rosemount |
| Model | 2088 |
| Product type | Pressure Transmitter |
| Type | Absolute and gauge pressure transmitter — Rosemount 2088 |
| Measurement | Absolute (2088A) and gauge (2088G) pressure |
| Range | Gauge −14.7 to 10000 psi; absolute 0–30 to 0–10000 psia (5 range codes) |
| Accuracy | ±0.075% of calibrated span; ±0.065% with P8 high-accuracy option |
| Output | 4–20 mA HART; 1–5 Vdc HART low power |
Documents
FAQ
Q: Accuracy? A: ±0.075% span (±0.065% P8).
Q: Max? A: To 10000 psi class.
Q: What should I send for a quote? A: Type/range/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±0.075% of calibrated span; ±0.065% with P8 high-accuracy option |
| Type | Absolute and gauge pressure transmitter — Rosemount 2088 |
| Measurement | Absolute (2088A) and gauge (2088G) pressure |
| Rangeability | 50:1 |
| Enclosure | NEMA 4X / IP66 / IP68 (see PDS) |
| Document | Rosemount 2088 PDS 00813-0100-4690 Rev QC |
| Model Code | 2088G / 2088A with range/output/material option codes |
