Druck

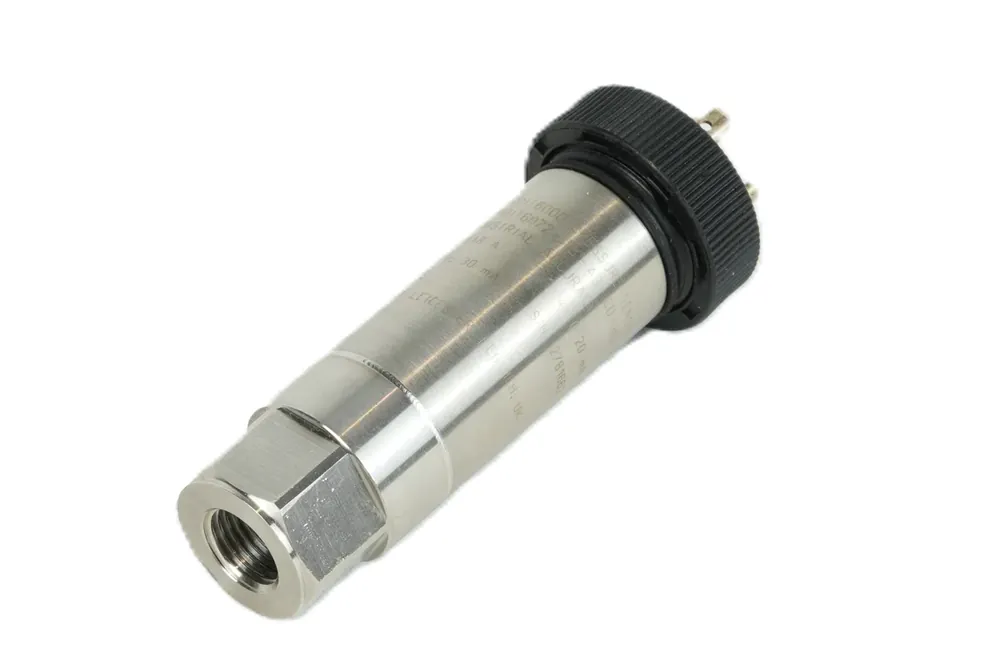

Druck ADROIT6000 Pressure Sensor
Quote on request
No online payment · add lines to RFQ BOM
Druck ADROIT6000: 68 mbar–700 bar; to 0.02% BSL / 0.1% span total; multi types. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
68 mbar to 700 bar (1 to 10000 psi); gauge / sealed gauge / absolute / barometric / differential (model-dependent)
Accuracy
Non-linearity/hysteresis/repeatability to 0.02% span BSL; total accuracy up to 0.1% span
Output
4–20 mA; 20–4 mA (6200); configurable voltage outputs
Supply
ADROIT6000: 4–20 mA 7–28 Vdc; voltage output 5–16 Vdc (must exceed selected Vo by ≥1.5 V)
Process connection
Multiple (G1/4, 1/4 NPT, VCR, UNF, flanges etc. per connector codes)
Wetted parts
Stainless steel 316L
Fits industrial pressure sensing where you need a Druck ADROIT6000. Sensor family spanning 68 mbar to 700 bar (1 to 10000 psi) in gauge / sealed gauge / absolute / barometric / differential versions, with non-linearity/hysteresis/repeatability to 0.02% span BSL and total accuracy up to 0.1% span.
Key advantages
- Range — 68 mbar to 700 bar
- Types — G / SG / A / baro / DP
- BSL — To 0.02% span
- Total accuracy — Up to 0.1% span
- Family — ADROIT6000
Typical applications
- OEM pressure sensing.
- Process / hydraulic pressure.
- Barometric and DP variants.
Selection guide
- Pressure type
- Range
- Electrical output
Common mistakes
- Wrong type (G vs A).
- Overrange.
- Ignoring total vs BSL.
When to RFQ / what to tell us
- Type/range/output.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 77889 |
| Brand | Druck |
| Model | ADROIT6000 |
| Product type | Pressure Sensor |
| Measuring range | 68 mbar to 700 bar (1 to 10000 psi); gauge / sealed gauge / absolute / barometric / differential (model-dependent) |
| Accuracy | Non-linearity/hysteresis/repeatability to 0.02% span BSL; total accuracy up to 0.1% span |
| Range min | 0.068 |
| Range max | 700 |
| Range unit | bar |
Documents
FAQ
Q: Max? A: 700 bar (10000 psi).
Q: BSL? A: To 0.02% span.
Q: What should I send for a quote? A: Type/range/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | 68 mbar to 700 bar (1 to 10000 psi); gauge / sealed gauge / absolute / barometric / differential (model-dependent) |
| Accuracy | Non-linearity/hysteresis/repeatability to 0.02% span BSL; total accuracy up to 0.1% span |
| Output | 4–20 mA; 20–4 mA (6200); configurable voltage outputs |
| Supply | ADROIT6000: 4–20 mA 7–28 Vdc; voltage output 5–16 Vdc (must exceed selected Vo by ≥1.5 V) |
| Process connection | Multiple (G1/4, 1/4 NPT, VCR, UNF, flanges etc. per connector codes) |
| Wetted parts | Stainless steel 316L |
| Housing | Stainless steel 316L; 25 mm (6000) or 19 mm (6200) diameter body |
| Protection | IP65 to IP68 depending on electrical connector |
| Ambient temperature | Operating up to −40 to +125 °C; survival −55 to +150 °C (connector-dependent) |
| Pressure type | gauge / sealed gauge / absolute / barometric / differential |
| Communication | Analogue output; digital processing with App-based calibration adjustment |
| Approvals | ATEX; IECEx; FM; CSA; CE; RoHS; PED; CRN |
| Frequency Response | to 1 kHz; response around 1 ms |
