Dwyer Instruments
Dwyer TPT Series OEM Pressure Transmitter
Quote on request
No online payment · add lines to RFQ BOM
OEM PT; 0–100 to 5000 psig; ±1% FS; 4–20 mA or ratiometric. RFQ + selection help.

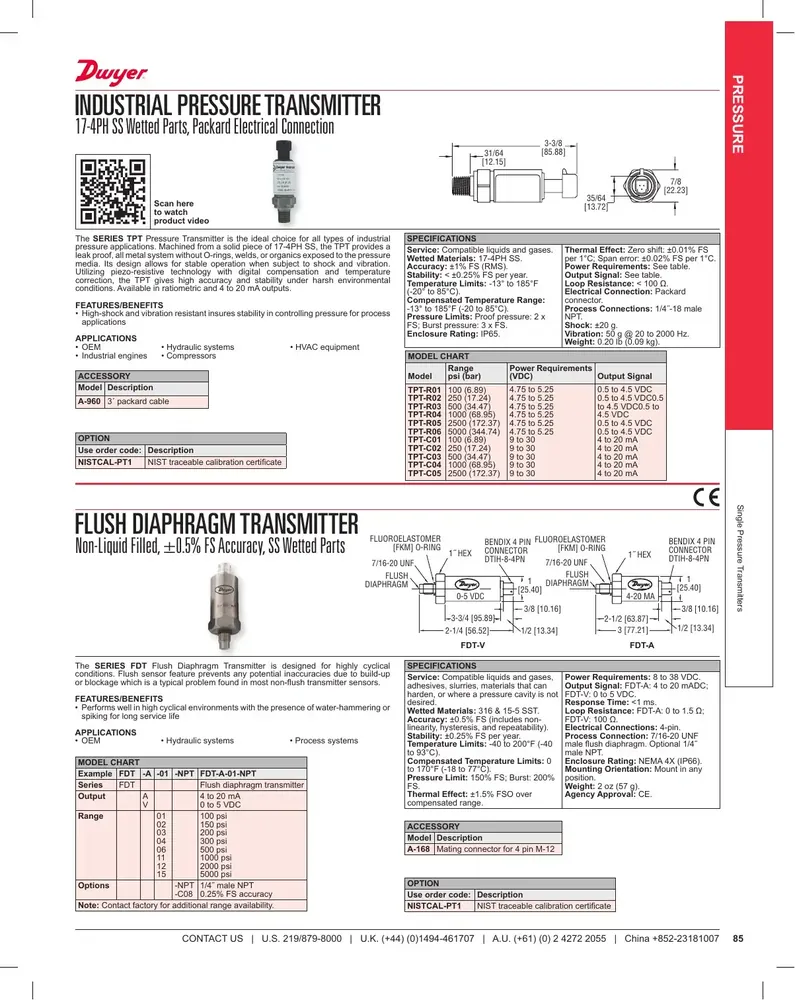

Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
0–100 to 0–5000 psig (TPT-R/C model chart)
Accuracy
±1% FS (RMS)
Output
4–20 mA (TPT-C) or 0.5–4.5 VDC ratiometric (TPT-R)
Supply
9–30 VDC (4–20 mA); 4.75–5.25 VDC (ratiometric)
Process connection
1/4˝-18 male NPT
Electrical connection
Packard connector
Fits cost-sensitive OEM pressure sensing where you need a Dwyer TPT from 0–100 to 0–5000 psig with ±1% FS accuracy, all-metal 17-4PH wetted path, and Packard connector.
Key advantages
- Ranges — 0–100 to 0–5000 psig
- Accuracy — ±1% FS (RMS); stability < ±0.25% FS/yr
- Outputs — 4–20 mA (TPT-C) or 0.5–4.5 VDC ratiometric (TPT-R)
- Wetted — 17-4PH SS, no O-rings to media; 1/4-18 MNPT
- Enclosure — IP65; Packard connector; proof 2× / burst 3× FS
Typical applications
- OEM equipment pressure.
- High-volume machine builds.
- Ratiometric 5 V supply systems (TPT-R).
Selection guide
- TPT-C vs TPT-R — Loop vs ratiometric
- Range — Model chart
- Supply — 9–30 VDC vs 5 V ratiometric
- Connector — Packard mating
Common mistakes
- Feeding ratiometric unit from 24 V loop.
- Media incompatible with 17-4PH.
- Ignoring proof/burst multiples.
When to RFQ / what to tell us
- C vs R, range.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 24042 |
| Brand | Dwyer Instruments |
| Model | TPT Series |
| Product type | Pressure Transmitter |
| Measuring range | 0–100 to 0–5000 psig (TPT-R/C model chart) |
| Accuracy | ±1% FS (RMS) |
| Output | 4–20 mA (TPT-C) or 0.5–4.5 VDC ratiometric (TPT-R) |
| Supply | 9–30 VDC (4–20 mA); 4.75–5.25 VDC (ratiometric) |
| Process connection | 1/4˝-18 male NPT |
| Wetted materials | 17-4PH stainless steel (all-metal, no O-rings to media) |
| Temperature limits | −13 to 185°F (−20 to 85°C) |
| Enclosure | IP65 |
| Stability | < ±0.25% FS per year |
| Electrical | Packard connector |
| Proof/burst | Proof 2× FS; burst 3× FS |
Documents
FAQ
Q: TPT-C vs TPT-R? A: C is 4–20 mA; R is 0.5–4.5 VDC ratiometric.
Q: Accuracy? A: ±1% FS (RMS).
Q: What should I send for a quote? A: Output type/range, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | 0–100 to 0–5000 psig (TPT-R/C model chart) |
| Accuracy | ±1% FS (RMS) |
| Output | 4–20 mA (TPT-C) or 0.5–4.5 VDC ratiometric (TPT-R) |
| Supply | 9–30 VDC (4–20 mA); 4.75–5.25 VDC (ratiometric) |
| Process connection | 1/4˝-18 male NPT |
| Electrical connection | Packard connector |
| Wetted parts | 17-4PH stainless steel (all-metal, no O-rings to media) |
| Temperature Limits | −13 to 185°F (−20 to 85°C) |
| Enclosure | IP65 |
| Stability | < ±0.25% FS per year |
| Shock | ±20 g |
| Proof Burst | Proof 2× FS; burst 3× FS |
