Watlow EZ-ZONE RM Control Module (RMC)

Fits multi-loop thermal systems that need a DIN-rail EZ-ZONE RM control module (RMC) with 1–4 PID/limit loops per module, scalable to 152 control loops / 256 monitor points in the RM family, and optional industrial Ethernet protocols.

Key advantages

• 1–4 loops per RMC — Mix PID and agency limit loops on one DIN-rail module.
• Scales with RM family — Up to 152 control loops / 256 monitor points across the modular rail.
• TRU-TUNE+ PID — Advanced PID with adaptive control and auto-tune per Watlow RMC literature.
• Protocol options — Standard Bus / Modbus RTU; optional EtherNet/IP, Modbus TCP, DeviceNet, PROFIBUS.
• Optional RUI — Module rail-mounts without a local faceplate; remote user interface when needed.

Typical applications

• Multi-zone thermal / process skids needing modular DIN-rail PID and limit control.
• Machines standardized on Watlow EZ-ZONE RM I/O and intermodule bus.
• Panels that need Class I Div 2 or SEMI F47-capable control modules by order code.

Selection guide

• Loops — 1–4 control/limit loops per RMC module; mix/match family to 152 control loops and 256 monitor points.
• Control — Advanced PID with TRU-TUNE+ adaptive control; auto-tune (see winezrm1223 / RMC UG).
• Output — Configurable outputs to 5 A max per module literature; optional 10/15 A power driver options in RM family.
• Supply — 20.4–30.8 VAC/VDC, 50/60 Hz ±5%; Class 2 / SELV external supply.
• Ambient — Operating −18…+65 °C (0…149 °F); storage −40…+85 °C.
• Sensor type — Thermocouple / RTD / process inputs per module configuration.
• Display — Optional remote user interface (RUI); module itself rail-mount without local display.
• Communication — Standard Bus; Modbus RTU; Watlow Ecosystem intermodule bus; optional EtherNet/IP, Modbus TCP, DeviceNet, PROFIBUS.
• Approvals — UL Listed; CSA; CE; RoHS; WEEE; FM; SEMI F47-0200; Class I Div 2 (selected models).
• Mounting — DIN-rail modular EZ-ZONE RM family.
• Notes — RMC: PID/on-off, agency limits, function blocks, optional ramp/soak (400 steps). OEM Watlow winezrm1223 + RMC Rev E UG.

Common mistakes

• Expecting a local faceplate on the RMC — display is via optional RUI; the module is rail-mount without local display.
• Under-sizing supply — listed window is 20.4–30.8 VAC/VDC Class 2 / SELV.
• Assuming every RMC is Class I Div 2 — that mark is listed for selected models only.
• Mixing RMC control-module I/O with high-current RM power-driver options without checking the family literature (5 A max vs optional 10/15 A drivers).

When to RFQ / what to tell us

1. Number of PID/limit loops, sensor types, and output types/current.
2. Protocol need (Modbus RTU / EtherNet/IP / Modbus TCP / DeviceNet / PROFIBUS) and RUI yes/no.
3. Ramp/soak requirement, area classification (Class I Div 2 yes/no), quantity, ship-to.

Request a Quote · Get selection help

Specs

Documents

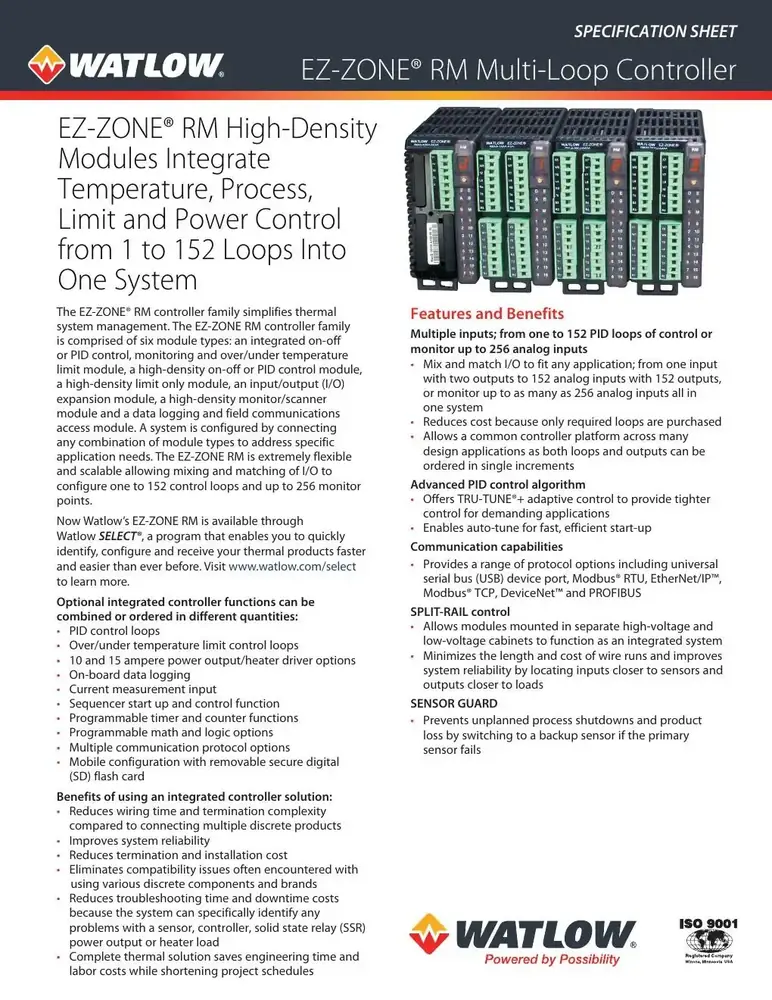

• Watlow EZ-ZONE RM Control Module (RMC) datasheet (PDF)
• Watlow EZ-ZONE RM Control Module (RMC) manual (PDF)

FAQ

Q: Does RMC include a local display? A: No — optional remote user interface (RUI). The control module mounts on DIN rail without a local faceplate.

Q: How many loops per module? A: 1–4 control/limit loops per RMC; the RM family scales to 152 control loops and 256 monitor points.

Q: What should I send for a quote? A: Loop count, I/O, protocol, RUI, Div 2 need, quantity. Compatible with systems using Watlow EZ-ZONE RM — we do not claim authorized-dealer status.
