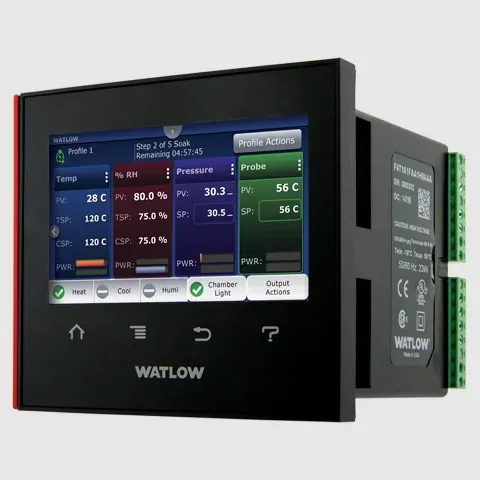

Watlow F4T Process Controller

Fits panel-mount temperature and process control where you need 1–4 PID (or ON-OFF) loops, optional limit loops, a 4.3-inch graphic touch screen, and expandable flex-module I/O in a 1/4 DIN cutout.

Key advantages

1–4 PID loops — Plus 0–6 limit loops; ON-OFF capable.
4.3″ touch HMI — TFT PCAP color graphic integrated in 1/4 DIN.
Flex-module I/O — Expandable 1–36 via 6 flex-module slots.
Fieldbus ready — Modbus TCP, EtherNet/IP, SCPI, EIA-232/485 Modbus RTU; USB host+device.
TRU-TUNE+ / profiles — Adaptive control; 40 profiles × 50 steps; data log / math / logic.

Typical applications

Multi-loop temperature and process control in a single 1/4 DIN panel.
Machines that need integrated touch HMI plus expandable I/O.
Profiles and data logging with COMPOSER PC configuration.

Selection guide

Loops / inputs — Universal TC/RTD/process inputs; 1–4 PID or ON-OFF loops; 0–6 limit loops; I/O expandable 1–36 via flex modules (6 slots).
Accuracy — Calibration accuracy ±0.1% of span ±1 °C at calibrated ambient (Types R/S/B ±0.2%; Type T below −50 °C ±0.2%).
Outputs — Modular (relay, SSR up to 10 A, switched DC, process); profile / data log / math / logic.
Supply — High voltage 100–240 VAC +10/−15% 50/60 Hz; low voltage 24–28 VAC/VDC; 23 W / 54 VA.
Display — 4.3-inch TFT PCAP color graphic touch screen.
Communication — Modbus TCP Ethernet; EtherNet/IP; SCPI; EIA-232/485 Modbus RTU; 2× USB host + device. COMPOSER PC software.
IP / ambient — NEMA 4X / IP65 front; operating −18…+50 °C.
Approvals — UL/EN 61010 Listed; UL 508 Reviewed; CSA; FM Class 3545 (limit modules); CE; RoHS; WEEE; AMS 2750 E compliant (analog PV tip).

Common mistakes

Ordering DIN size wrong — F4T is 1/4 DIN; confirm panel cutout.
Assuming every unit carries FM Class 3545 — that mark is listed for limit modules; lock the module set.
Specifying SSR loads above 10 A without checking the modular output option.
Mixing fieldbus expectations (EtherNet/IP vs Modbus TCP vs RTU) without ordering the matching communications.
Leaving loop count and flex-module map blank — 1–4 PID and 0–6 limits are configuration choices.

When to RFQ / what to tell us

PID loop count, limit-loop need, and flex-module I/O map.
Supply (100–240 VAC vs 24–28 VAC/VDC), protocol, and FM limit-module need.
Quantity, ship-to; COMPOSER / profile / data-log requirements.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	41710
Brand	Watlow
Model	F4T
Product type	other (process controller)
Measuring range / loops	Universal TC/RTD/process inputs; 1–4 PID or ON-OFF loops; 0–6 limit loops; I/O expandable 1–36 via flex modules
Accuracy	Calibration accuracy ±0.1% of span ±1 °C at calibrated ambient (Types R/S/B ±0.2%; Type T below −50 °C ±0.2%)
Output signal	Modular outputs (relay, SSR up to 10 A, switched DC, process); profile/data log/math/logic
Supply voltage	High voltage 100–240 VAC +10/−15% 50/60 Hz; low voltage 24–28 VAC/VDC; consumption 23 W / 54 VA
IP rating	NEMA 4X / IP65 front panel mount configuration
Ambient temperature	Operating −18…+50 °C; storage −40…+85 °C; RH 0–90% non-condensing
Display	4.3-inch TFT PCAP color graphic touch screen
Communication	Modbus TCP Ethernet; EtherNet/IP; SCPI; EIA-232/485 Modbus RTU; 2× USB host + device
Mounting	1/4 DIN panel mount; 6 flex-module slots
Approvals	UL/EN 61010 Listed; UL 508 Reviewed; CSA; FM Class 3545 (limit modules); CE; RoHS; WEEE; AMS 2750 E compliant (analog PV tip)
Notes	40 profiles × 50 steps; TRU-TUNE+ adaptive control; COMPOSER PC software.

Documents

FAQ

Q: How many loops and what I/O expansion? A: 1–4 PID or ON-OFF loops and 0–6 limit loops; I/O expandable 1–36 through flex modules (6 slots). State loop count and module mix in the RFQ.

Q: What supply options? A: 100–240 VAC (+10/−15%, 50/60 Hz) or 24–28 VAC/VDC; consumption 23 W / 54 VA.

Q: Which communications are available? A: Modbus TCP Ethernet, EtherNet/IP, SCPI, EIA-232/485 Modbus RTU, plus 2× USB host + device. Lock the protocol on the order code.

Q: What should I send for a quote? A: Loops, I/O modules, supply, protocol, required marks, quantity. Compatible with systems using Watlow F4T — we do not claim authorized-dealer status.
