Fuji Electric

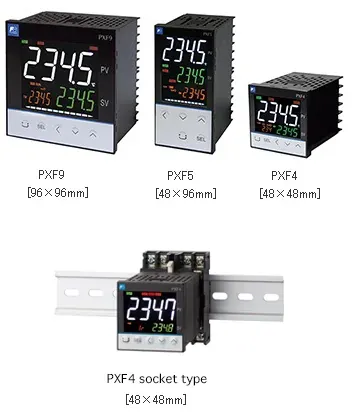

Fuji Electric PXF9 Temperature Controller
Quote on request
No online payment · add lines to RFQ BOM
Fuji PXF9: 96×96 mm; 50 ms; universal TC/RTD/V/I; PID/fuzzy; IP66. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy class
Improved indication accuracy vs prior PXR class; RTD about +/-0.2% indication class (see EDS11-180)
Display
White LED-backlit LCD; large PV character height about 26 mm class
Communication
Optional RS-485 Modbus RTU; loader/USB interface
Type
96 x 96 mm digital temperature controller (PXF9 / MICRO-CONTROLLER X)
Sampling Rate
50 ms input sampling
Inputs
Universal: thermocouple, RTD, voltage, current, mV
Fits panel temperature control where you need a Fuji Electric PXF9—96×96 mm MICRO-CONTROLLER X with about 50 ms input sampling, universal TC/RTD/voltage/current inputs, ON/OFF through 2-DOF PID and motorized-valve options, plus optional RS-485 Modbus RTU.
Key advantages
- Size — 96×96 mm panel controller
- Sampling — About 50 ms input sampling
- Inputs — Universal TC, RTD, voltage, current, mV
- Control — ON/OFF, PID, fuzzy PID, self-tuning, PID2, 2-DOF PID, VMD
- Front — IP66-class with watertight packing
Typical applications
- Oven / furnace loops.
- Packaging heat control.
- Machine temperature panels.
Selection guide
- Output type (relay/SSR/linear/VMD)
- Supply 100–240 VAC vs 24 V
- Comm option
Common mistakes
- Wrong sensor type code.
- Missing IP packing.
- Ignoring depth behind panel.
When to RFQ / what to tell us
- Output/supply/comm codes.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 42943 |
| Brand | Fuji Electric |
| Model | PXF9 Temperature Controller |
| Product type | Temperature Controller |
| Type | 96 x 96 mm digital temperature controller (PXF9 / MICRO-CONTROLLER X) |
| Sampling rate | 50 ms input sampling |
| Inputs | Universal: thermocouple, RTD, voltage, current, mV |
| Control methods | ON/OFF, PID, fuzzy PID, self-tuning, PID2, 2-DOF PID, motorized valve control |
| Outputs | Relay, SSR/SSC drive, current linear, voltage linear (selectable) |
| Communication | Optional RS-485 Modbus RTU; loader/USB interface |
| Power | 100-240 V AC 50/60 Hz or 24 V AC/DC options |
| Front protection | IP66 equivalent with watertight packing |
Documents
FAQ
Q: Size? A: 96×96 mm.
Q: Sampling? A: About 50 ms.
Q: What should I send for a quote? A: Output/supply/comm, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy class | Improved indication accuracy vs prior PXR class; RTD about +/-0.2% indication class (see EDS11-180) |
| Display | White LED-backlit LCD; large PV character height about 26 mm class |
| Communication | Optional RS-485 Modbus RTU; loader/USB interface |
| Type | 96 x 96 mm digital temperature controller (PXF9 / MICRO-CONTROLLER X) |
| Sampling Rate | 50 ms input sampling |
| Inputs | Universal: thermocouple, RTD, voltage, current, mV |
| Control Methods | ON/OFF, PID, fuzzy PID, self-tuning, PID2, 2-DOF PID, motorized valve control |
| Outputs | Relay, SSR/SSC drive, current linear, voltage linear (selectable) |
| Dimensions | 96 x 96 x 58 mm depth behind panel (about 65.7 mm overall class per series page) |
| Power | 100-240 V AC 50/60 Hz or 24 V AC/DC options |
| Front Protection | IP66 equivalent with watertight packing |
| Document | Fuji Electric data sheet PXF9-2 EDS11-180c |
