Watlow PM PLUS PID Controller

Fits panel-mount temperature and process control where you need 1 or 2 PID/limit loops, optional high-amperage power control, and fieldbus or Bluetooth configuration — backwards pin-compatible with EZ-ZONE PM.

Key advantages

• Integrated PID + limit — 1 or 2 control/limit loops with universal process/temperature inputs.
• High-amp NO-ARC option — power control up to 15 A resistive NO-ARC on published configs.
• Rich fieldbus mix — Bluetooth EZ-LINK, Modbus RTU/TCP, EtherNet/IP, PROFIBUS DP, DeviceNet, SAE J1939, and more by code.
• IP67 front seal — fixed front bezel with enhanced SMOOTH-TOUCH keypad vs EZ-ZONE PM.

Typical applications

• OEM panels upgrading from EZ-ZONE PM to PM PLUS UI and bus options.
• Machines needing integrated limit plus PID in one controller footprint.
• Skids that standardize on EtherNet/IP or Modbus TCP for temperature loops.

Selection guide

• Loops / inputs — Universal process/temperature inputs (PID); 1 or 2 control/limit loops.
• Control / output — PID / integrated limit; high amperage power control up to 15 A NO-ARC resistive. TRU-TUNE+ adaptive control per Watlow PM PLUS specification sheet. Profiling supported.
• Supply — Per order configuration (see OEM documentation).
• Communication — Bluetooth (EZ-LINK); Modbus RTU; EtherNet/IP; Modbus TCP; PROFIBUS DP; DeviceNet; SAE J1939 CAN; Standard Bus.
• Display / keypad — Enhanced SMOOTH-TOUCH keypad / improved readability vs EZ-ZONE PM.
• IP — IP67 front seal (fixed front bezel).
• Mounting — 1/16 DIN, 1/8 DIN horizontal/vertical, 1/4 DIN panel mount.
• Approvals — UL listed; CSA; CE; RoHS; WEEE; FM; SEMI F47-0200; Class 1 Div 2 (selected models).

Common mistakes

• Ordering DIN size without confirming panel cutout (1/16, 1/8 H/V, or 1/4 DIN).
• Assuming every unit carries Class 1 Div 2 — that mark is listed for selected models only; lock the order code.
• Specifying 15 A NO-ARC output when the load is not resistive or exceeds the configured power option.
• Mixing fieldbus expectations (EtherNet/IP, PROFIBUS DP, DeviceNet, etc.) without confirming the communication option on the model code.
• Expecting a published ambient range or exact supply voltage from this page — those are order-code / OEM published fields not filled in the OEM extract used here; send available supply in the RFQ.
• Automation & control · Automation & control buying guide

When to RFQ / what to tell us

1. Number of loops (1 or 2), PID vs limit, and input sensor/process type.
2. Power output need (including whether ≤15 A NO-ARC resistive applies) and load type.
3. DIN size and orientation; IP67 front seal requirement.
4. Communication protocol (Bluetooth / Modbus / EtherNet/IP / etc.) and host.
5. Required marks (UL, FM, Class 1 Div 2 if needed), quantity, ship-to country.
6. Whether drop-in for existing EZ-ZONE PM wiring is required (pinout backwards compatible per OEM notes).

Request a Quote · Get selection help

Specs

Documents

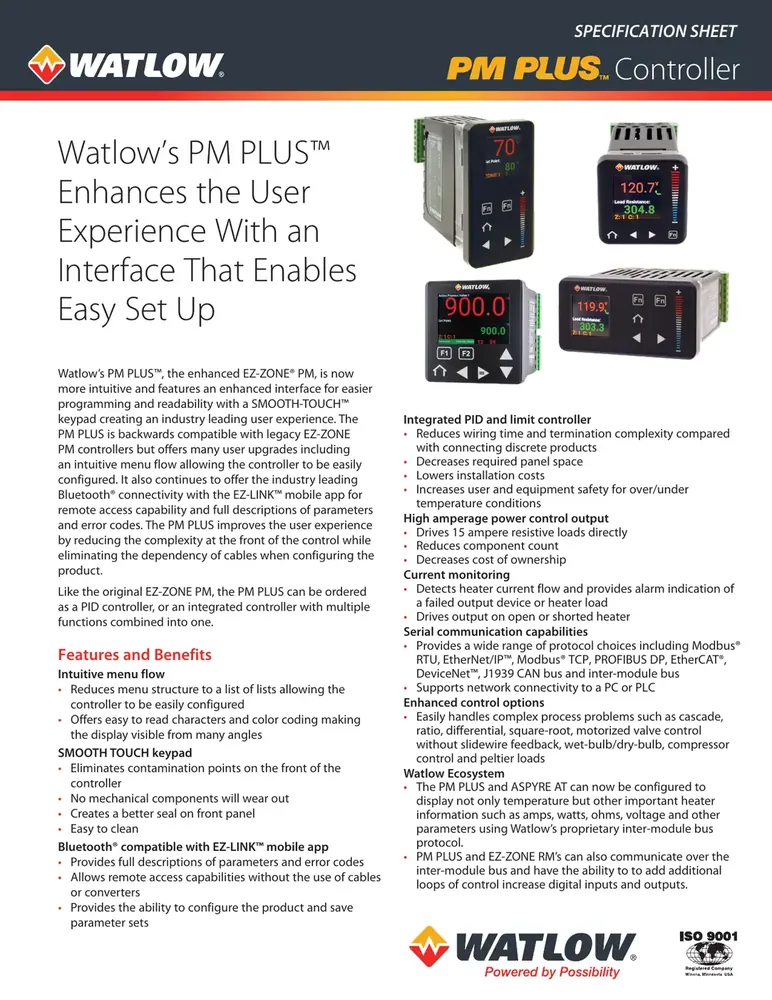

• Watlow PM PLUS specification sheet

FAQ

Q: Is this a drop-in for EZ-ZONE PM? A: OEM notes backwards pinout compatibility with EZ-ZONE PM. Confirm DIN size, I/O map, and communication option in the RFQ before treating it as a form-fit swap.

Q: How many loops and what power output? A: 1 or 2 control/limit loops; high-amperage power control up to 15 A NO-ARC resistive when that option is ordered. State loop count and load in the RFQ.

Q: Which approvals apply? A: UL listed, CSA, CE, RoHS, WEEE, FM, SEMI F47-0200; Class 1 Div 2 on selected models only. Lock the marks you need on the order code.

Q: What should I send for a quote? A: Loop count, input type, power/load, DIN size, protocol, required marks, quantity. Compatible with systems using Watlow PM PLUS if you need a drop-in check — we do not claim authorized-dealer status.
