Fuji Electric PXF4 Temperature Controller (Socketed)
Quote on request
No online payment · add lines to RFQ BOM
Fuji PXF4: socketed temp controller; universal input; relay/SSR/mA; RS-485 option. RFQ.

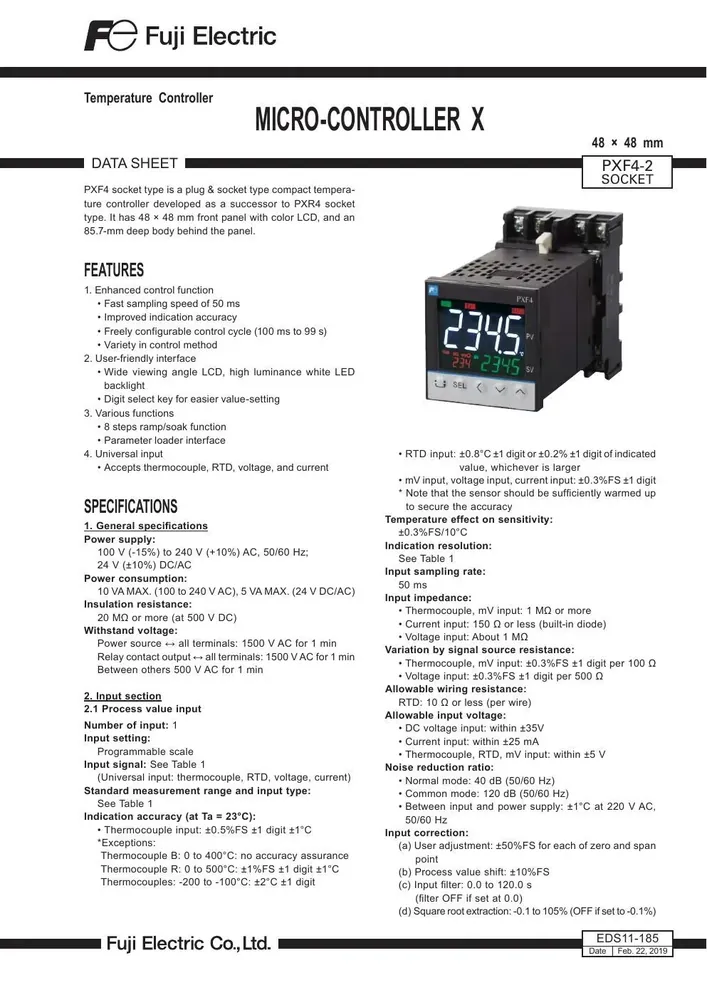

Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Universal input: thermocouple, RTD, voltage, current (programmable scale; see Table 1 of EDS11-185)
Accuracy
TC ±0.5%FS ±1 digit ±1°C (exceptions for B/R/low range); RTD ±0.8°C ±1 digit or ±0.2% of indicated ±1 digit (whichever larger); mV/V/mA ±0.3%FS ±1 digit @ Ta=23°C
Output
Relay / SSR / current / voltage control outputs (per order); optional RS-485 Modbus
Supply
100–240 V AC (−15%/+10%) 50/60 Hz or 24 V (±10%) DC/AC; 10 VA max (100–240 VAC), 5 VA max (24 V)
Ambient temperature
Per EDS11-185 / instruction manual
Display
Color LCD 48×48 mm; PV white / SV green / screen No. orange; white LED backlight
Fits compact panel temperature control where you need a Fuji Electric PXF4. Socketed controller with universal input (thermocouple, RTD, voltage, current), relay/SSR/current/voltage control outputs by order, optional RS-485 Modbus, and 100–240 VAC or 24 V supply (10 VA / 5 VA max).
Key advantages
- Input — Universal TC / RTD / V / I
- Outputs — Relay / SSR / current / voltage
- Comms — Optional RS-485 Modbus
- Supply — 100–240 VAC or 24 V DC/AC
- Form — Socketed PXF4
Typical applications
- OEM machine temperature.
- Panel socket controllers.
- Compact process loops.
Selection guide
- Output type
- Supply
- Modbus need
Common mistakes
- Wrong socket wiring.
- TC cold-junction ignore.
- Exceeding VA budget.
When to RFQ / what to tell us
- Input/output/supply.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47367 |
| Brand | Fuji Electric |
| Model | PXF4 Socket |
| Product type | Temperature Controller |
| Measuring range | Universal input: thermocouple, RTD, voltage, current (programmable scale; ) |
| Accuracy | TC ±0.5%FS ±1 digit ±1°C (exceptions for B/R/low range); RTD ±0.8°C ±1 digit or ±0.2% of indicated ±1 digit (whichever larger); mV/V/mA ±0.3%FS ±1 digit @ Ta=23°C |
| Output signal | Relay / SSR / current / voltage control outputs (per order); optional RS-485 Modbus |
| Supply voltage | 100–240 V AC (−15%/+10%) 50/60 Hz or 24 V (±10%) DC/AC; 10 VA max (100–240 VAC), 5 VA max (24 V) |
| Ambient temperature | Per |
Documents
FAQ
Q: Inputs? A: TC, RTD, voltage, current.
Q: Comms? A: Optional RS-485 Modbus.
Q: What should I send for a quote? A: Input/output/supply, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Universal input: thermocouple, RTD, voltage, current (programmable scale; see Table 1 of EDS11-185) |
| Accuracy | TC ±0.5%FS ±1 digit ±1°C (exceptions for B/R/low range); RTD ±0.8°C ±1 digit or ±0.2% of indicated ±1 digit (whichever larger); mV/V/mA ±0.3%FS ±1 digit @ Ta=23°C |
| Output | Relay / SSR / current / voltage control outputs (per order); optional RS-485 Modbus |
| Supply | 100–240 V AC (−15%/+10%) 50/60 Hz or 24 V (±10%) DC/AC; 10 VA max (100–240 VAC), 5 VA max (24 V) |
| Ambient temperature | Per EDS11-185 / instruction manual |
| Display | Color LCD 48×48 mm; PV white / SV green / screen No. orange; white LED backlight |
| Communication | Optional RS-485 Modbus; parameter loader interface |
| Approvals | CE (confirm package) |
| Mounting | 48×48 mm plug-in socket type; 85.7 mm depth behind panel; 8-pin or 11-pin socket |
| Sensor type | Universal TC / RTD / V / mA / mV |
| Notes | Sampling 50 ms; control cycle 100 ms–99 s; ON/OFF, PID, fuzzy PID, self-tuning, PID2; 8-step ramp/soak. OEM EDS11-185(a) socket datasheet. |
