Autonics

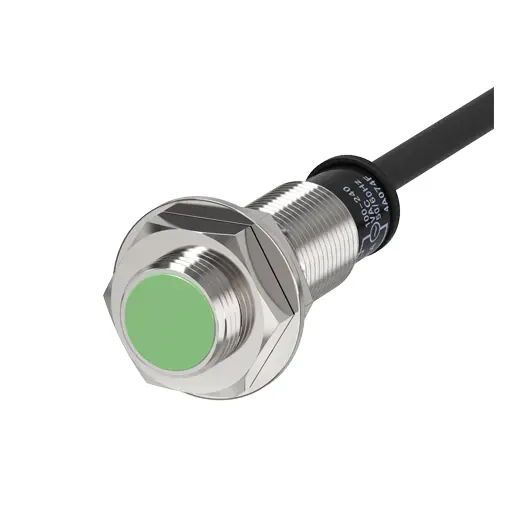

Autonics PR Series Inductive Proximity Sensors
Quote on request
No online payment · add lines to RFQ BOM
Cylindrical inductive prox; Ø8–30 mm; NPN/PNP; IP67. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Autonics PR Series cylindrical inductive proximity sensors (flush / non-flush)
Sensing Diameters
Standard body sizes about Ø8 / Ø12 / Ø18 / Ø30 mm (series family)
Power Supply
12-24 VDC (ripple P-P <=10%); operating 10-30 VDC
Current Consumption
<=10 mA
Protection Structure
IP67 (IEC)
Outputs
NPN/PNP and NO/NC wiring options per model code
Fits metallic target detection where you need Autonics PR Series cylindrical inductive proximity sensors in Ø8/Ø12/Ø18/Ø30 mm bodies with NPN/PNP and NO/NC options.
Key advantages
- Type — Cylindrical inductive proximity sensors (flush / non-flush)
- Sizes — About Ø8 / Ø12 / Ø18 / Ø30 mm family
- Power — 12–24 VDC (10–30 VDC operating); ≤10 mA consumption
- Outputs — NPN/PNP and NO/NC per model code
- Protection — IP67; surge, reverse polarity, and short-circuit protection
Typical applications
- Machine metallic presence/position sensing.
- OEM panels standardizing on Autonics cylindrical prox.
- Flush or non-flush installs in industrial environments.
Selection guide
- Diameter / sensing distance — Ø8–30 mm; flush vs non-flush
- Output — NPN vs PNP; NO vs NC
- Connection — Cable vs connector
- Target — Ferrous metal sensing distance derating for other metals
Common mistakes
- Ignoring flush vs non-flush sensing distance differences.
- Mismatching NPN/PNP to the PLC input type.
- Expecting non-metallic target detection — inductive is for metals.
When to RFQ / what to tell us
- Diameter, flush/non-flush, sensing distance.
- NPN/PNP, NO/NC, cable/connector.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 18460 |
| Brand | Autonics |
| Model | PR Series Cylindrical Inductive Proximity Sensors |
| Product type | Proximity Sensor |
| Type | Autonics PR Series cylindrical inductive proximity sensors (flush / non-flush) |
| Sensing diameters | Standard body sizes about Ø8 / Ø12 / Ø18 / Ø30 mm (series family) |
| Power supply | 12-24 VDC (ripple P-P <=10%); operating 10-30 VDC |
| Current consumption | <=10 mA |
| Protection structure | IP67 (IEC) |
| Outputs | NPN/PNP and NO/NC wiring options per model code |
| Protection circuits | Surge, reverse polarity, and short-circuit protection (per manual) |
| Environment | Industrial proximity sensing for metallic targets; cable or connector types |
Documents
- Autonics PR Series documentation — request current OEM PDF on RFQ — request current OEM PDF on RFQ
FAQ
Q: What supply? A: 12–24 VDC nominal (10–30 VDC operating).
Q: IP rating? A: IP67 (IEC).
Q: What should I send for a quote? A: Size/output/connection, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | Autonics PR Series cylindrical inductive proximity sensors (flush / non-flush) |
| Sensing Diameters | Standard body sizes about Ø8 / Ø12 / Ø18 / Ø30 mm (series family) |
| Power Supply | 12-24 VDC (ripple P-P <=10%); operating 10-30 VDC |
| Current Consumption | <=10 mA |
| Protection Structure | IP67 (IEC) |
| Outputs | NPN/PNP and NO/NC wiring options per model code |
| Protection Circuits | Surge, reverse polarity, and short-circuit protection (per manual) |
| Environment | Industrial proximity sensing for metallic targets; cable or connector types |
| Document | Autonics PR Series product manual TCD210245 (OEM Autonics; used as datasheet this pass) |
