Michell Instruments

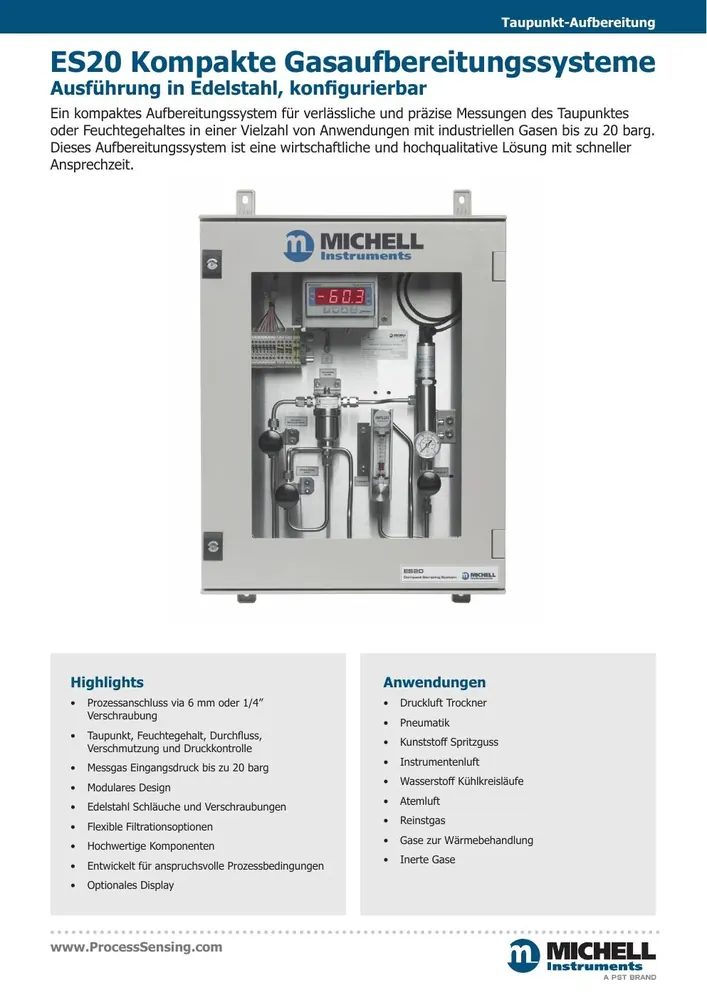

Michell Instruments ES20 Compact Sampling System
Quote on request
No online payment · add lines to RFQ BOM
Michell ES20: compact sample system; to 20 barg; 1–5 Nl/min; 316 SS; filters. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Sample Inlet Pressure
Up to 20 barg
Process Connections
6 mm or 1/4″ tube fittings (316 stainless steel)
Materials Wetted
Stainless steel tubing and fittings; 316 SS baseplate/filter components
Filtration Options
Particulate filter and/or coalescing filter with adjustable drain; HDPE sensor protection
Flow Control
Optimal sample flow typically 1–5 Nl/min; flowmeter/needle valve options (borosilicate glass 2–12 Nl/min class)
Pressure Control
Gauge (dual scale bar/psi), needle valves; optional self-regulating vacuum pump
Fits compact dew-point sample conditioning where you need a Michell Instruments ES20. Sampling system for inlet pressures to 20 barg with 6 mm or ¼″ 316 SS tube fittings, particulate and/or coalescing filtration, typical sample flow 1–5 Nl/min and optional self-regulating vacuum pump.
Key advantages
- Inlet — Up to 20 barg
- Connections — 6 mm or ¼″ 316 SS
- Flow — Typically 1–5 Nl/min
- Filtration — Particulate and/or coalescing
- Options — Vacuum pump; flowmeter/needle valve
Typical applications
- Dew-point transmitter sampling.
- Analyzer sample conditioning.
- Compact panel sample systems.
Selection guide
- Filter set
- Vacuum option
- Tube size
Common mistakes
- Wet liquid carryover.
- Flow outside 1–5 Nl/min.
- Wrong tube size.
When to RFQ / what to tell us
- Options/filters.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47117 |
| Brand | Michell Instruments |
| Model | ES20 Sampling System |
| Product type | Sampling System |
| Sample inlet pressure | Up to 20 barg |
| Process connections | 6 mm or 1/4″ tube fittings (316 stainless steel) |
| Materials wetted | Stainless steel tubing and fittings; 316 SS baseplate/filter components |
| Filtration options | Particulate filter and/or coalescing filter with adjustable drain; HDPE sensor protection |
| Flow control | Optimal sample flow typically 1–5 Nl/min; flowmeter/needle valve options (borosilicate glass 2–12 Nl/min class) |
| Pressure control | Gauge (dual scale bar/psi), needle valves; optional self-regulating vacuum pump |
Documents
FAQ
Q: Inlet pressure? A: Up to 20 barg.
Q: Flow? A: Typically 1–5 Nl/min.
Q: What should I send for a quote? A: Options/filters, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Sample Inlet Pressure | Up to 20 barg |
| Process Connections | 6 mm or 1/4″ tube fittings (316 stainless steel) |
| Materials Wetted | Stainless steel tubing and fittings; 316 SS baseplate/filter components |
| Filtration Options | Particulate filter and/or coalescing filter with adjustable drain; HDPE sensor protection |
| Flow Control | Optimal sample flow typically 1–5 Nl/min; flowmeter/needle valve options (borosilicate glass 2–12 Nl/min class) |
| Pressure Control | Gauge (dual scale bar/psi), needle valves; optional self-regulating vacuum pump |
| Installation Variants | Baseplate; baseplate in GRP enclosure with window; baseplate in 316 SS enclosure with window |
| Compatible Instruments | Easidew / Easidew I.S. / Easidew PRO I.S. / Easidew PRO XP / Easidew Online / Cermet II |
| Operating Temperature Filter | Approx. −15 to +60 °C (filter/monitor-less configuration literature) |
| Design Focus | Dew point, moisture content, flow, contamination and pressure control |
| Documentation Pack | Manual, datasheet, flow diagrams, optional material certification, CE DoC |
| Applications | Compressed air dryers, pneumatics, plastic moulding, instrument air, H₂ coolants, breathing air, pure/inert/heat-treatment gases |
| Modular | Yes — configurable filtration/pressure/flow/display options |
