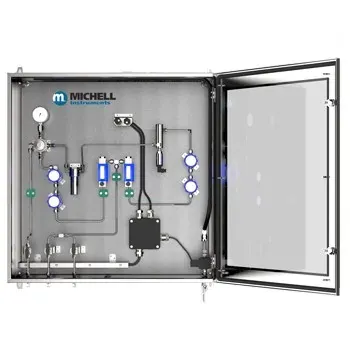

Michell Instruments ES70 Gas Sampling System
Quote on request
No online payment · add lines to RFQ BOM
Michell ES70: gas sample to 138 barg; liquid to 50 barg; 1–5 Nl/min; 316 SS. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Gas Inlet Pressure
Up to 138 barg
Gas Flow Rate
1–5 Nl/min (sample block; typically set 4–6 Nl/min class per UM guidance)
Liquid Inlet Pressure
Up to 50 barg
Liquid Flow Rate
0.01–10 l/min (0.1–0.3 l/min recommended)
Process Connections
6 mm or 1/4" tube fittings, 316 SS
Gas Wetted Parts
316 SS tube, filter housing, fittings, transmitter sample block
Fits higher-pressure gas sample conditioning where you need a Michell Instruments ES70. Sampling system for gas inlet to 138 barg (liquid to 50 barg) with sample block flow about 1–5 Nl/min, 6 mm or ¼″ 316 SS fittings and 316 SS wetted tube, filter housing and transmitter sample block.
Key advantages
- Gas inlet — Up to 138 barg
- Liquid inlet — Up to 50 barg
- Gas flow — About 1–5 Nl/min
- Connections — 6 mm or ¼″ 316 SS
- Wetted — 316 SS tube/filter/sample block
Typical applications
- High-pressure dew-point sampling.
- Process gas conditioning.
- Analyzer sample systems.
Selection guide
- Gas vs liquid path
- Filter elements
- Tube size
Common mistakes
- Exceeding 138 barg gas.
- Wrong liquid flow (0.1–0.3 l/min recommended).
- Material mismatch.
When to RFQ / what to tell us
- Pressure/path/options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47145 |
| Brand | Michell Instruments |
| Model | ES70 Gas Sampling System |
| Product type | Sampling System |
| Gas inlet pressure | Up to 138 barg |
| Gas flow rate | 1–5 Nl/min (sample block; typically set 4–6 Nl/min class) |
| Liquid inlet pressure | Up to 50 barg |
| Liquid flow rate | 0.01–10 l/min (0.1–0.3 l/min recommended) |
| Process connections | 6 mm or 1/4" tube fittings, 316 SS |
| Gas wetted parts | 316 SS tube, filter housing, fittings, transmitter sample block |
Documents
FAQ
Q: Gas inlet? A: Up to 138 barg.
Q: Gas flow? A: About 1–5 Nl/min.
Q: What should I send for a quote? A: Pressure/path/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Gas Inlet Pressure | Up to 138 barg |
| Gas Flow Rate | 1–5 Nl/min (sample block; typically set 4–6 Nl/min class per UM guidance) |
| Liquid Inlet Pressure | Up to 50 barg |
| Liquid Flow Rate | 0.01–10 l/min (0.1–0.3 l/min recommended) |
| Process Connections | 6 mm or 1/4" tube fittings, 316 SS |
| Gas Wetted Parts | 316 SS tube, filter housing, fittings, transmitter sample block |
| Filtration Options | 5 μm SS mesh particulate; coalescing with manual drain; combined coalescing/oleophobic with fast-loop drain |
| Mounting Variants | Indoor open panel; outdoor IP66/NEMA 4X 304 or 316 SS enclosure ± window |
| Compatible Transmitters | Easidew PRO XP; Easidew PRO I.S.; Promet I.S.; Liquidew I.S. |
| Panel Dimensions | Indoor panel 750 × 750 × 2 mm; outdoor enclosure 800 × 800 × 300 mm |
| Documentation Options | BS EN 10204 3.1 material certs; NACE MR0175/ISO 15156 available |
| Design Focus | Process moisture/dew-point sample extraction, filtration, pressure and flow control |
| Applications | Natural gas, biomethane, LNG, CNG, refinery, catalyst protection, heat treat, petrochemical liquids |
