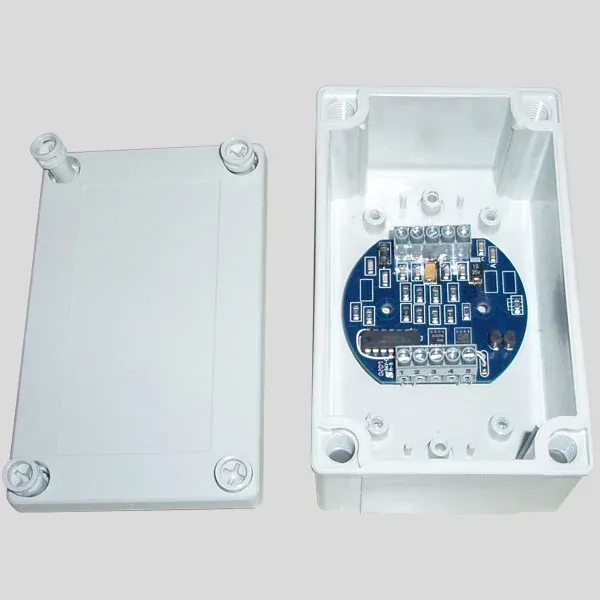

KEP AMP-2 Dual Magnetic Pickup Preamplifier
Quote on request
No online payment · add lines to RFQ BOM
AMP-2: dual mag-pickup preamp; 10 mV; 0–4000 Hz; 8.5–30 VDC. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
KEP AMP-2 dual-channel magnetic-pickup preamplifier and pulse signal conditioner
Channels
Dual independent inputs for magnetic pickups
Sensitivity Bandwidth
10 mV p-p sensitivity; 0-4000 Hz bandwidth; differential preamplifier
Power
8.5 to 30 VDC; about 25 mA nominal; reverse-polarity and 36 V surge clamp protection
Temperature Humidity
-40 to 65 C; 0-95% RH noncondensing
Enclosures
OEM PC-board, NEMA 4X wall-mount, or explosion-proof die-cast aluminum Type 4X housing
Fits dual magnetic-pickup flow or speed signals where you need a KEP AMP-2—two independent differential preamps with 10 mV p-p sensitivity, 0–4000 Hz bandwidth, and open-collector pulse outputs.
Key advantages
- Channels — Dual independent mag-pickup inputs
- Sensitivity — 10 mV p-p; 0–4000 Hz
- Power — 8.5–30 VDC; ~25 mA; reverse/surge protection
- Output — Open-collector with 10 kΩ pull-up; ≥20 mA sink
- Env — −40…+65 °C
Typical applications
- Dual turbine pickup conditioning.
- Long-cable mag-pickup runs.
- Ratemeter / counter front-ends.
Selection guide
- Cable length / shielding
- Host input type
- Supply voltage
Common mistakes
- Overloading open-collector beyond rating.
- Single-ended wiring on differential inputs.
- Ignoring 4000 Hz bandwidth.
When to RFQ / what to tell us
- Supply, host type.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 35259 |
| Brand | KEP |
| Model | AMP-2 Dual Preamp & Signal Conditioner |
| Product type | Signal Conditioner |
| Type | KEP AMP-2 dual-channel magnetic-pickup preamplifier and pulse signal conditioner |
| Channels | Dual independent inputs for magnetic pickups |
| Sensitivity bandwidth | 10 mV p-p sensitivity; 0-4000 Hz bandwidth; differential preamplifier |
| Power | 8.5 to 30 VDC; about 25 mA nominal; reverse-polarity and 36 V surge clamp protection |
| Output | Open-collector pulse with 10 kOhm pull-up; sinks >=20 mA to <1 V; max 100 mA @ 0.7 V |
| Temperature humidity | -40 to 65 C; 0-95% RH noncondensing |
Documents
FAQ
Q: Channels? A: Two independent inputs.
Q: Bandwidth? A: 0–4000 Hz.
Q: What should I send for a quote? A: Quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | KEP AMP-2 dual-channel magnetic-pickup preamplifier and pulse signal conditioner |
| Channels | Dual independent inputs for magnetic pickups |
| Sensitivity Bandwidth | 10 mV p-p sensitivity; 0-4000 Hz bandwidth; differential preamplifier |
| Power | 8.5 to 30 VDC; about 25 mA nominal; reverse-polarity and 36 V surge clamp protection |
| Temperature Humidity | -40 to 65 C; 0-95% RH noncondensing |
| Enclosures | OEM PC-board, NEMA 4X wall-mount, or explosion-proof die-cast aluminum Type 4X housing |
| Ex Listing | CSA Canada/USA Class I Div 1 Groups BCD; Class II Div 1 EFG; Class III (Ex-proof option) |
| Wiring Note | Magnetic-pickup lead should be shielded, <10 ft, isolated from noisy loads |
| Document | KEP AMP-2 Dual Preamp & Signal Conditioner datasheet 990103 (kepmeters.com) |
