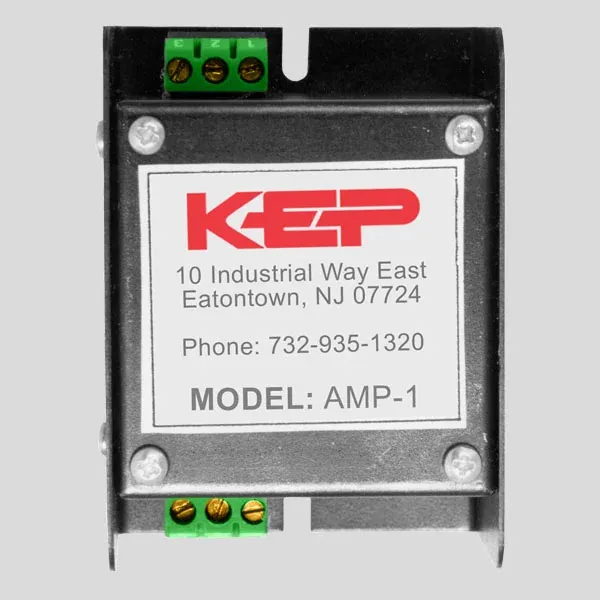

KEP AMP-1 Magnetic Pickup Preamplifier
Quote on request
No online payment · add lines to RFQ BOM
AMP-1: mag-pickup preamp; >100× gain; to 15 kHz; 11–26 VDC. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Magnetic pickup / flow transmitter preamplifier (AMP-1)
Gain
Amplifies low-level signals >100× for ratemeters/counters
Supply
11–26 VDC at ~30 mA
Sensitivity
20 mV–50 V input class
Frequency
Up to 15 kHz class
Variant
AMP-1-10K: 10 kΩ input impedance for turbine/paddlewheel
Fits single-channel magnetic-pickup conditioning where you need a KEP AMP-1—amplifies low-level pickup signals >100× for ratemeters/counters, with sensitivity from ~20 mV–50 V and frequency to ~15 kHz.
Key advantages
- Gain — Amplifies low-level signals >100×
- Supply — 11–26 VDC at ~30 mA
- Sensitivity — 20 mV–50 V input class
- Frequency — Up to 15 kHz class
- Variant — AMP-1-10K 10 kΩ input for turbine/paddlewheel
Typical applications
- Turbine meter pickup boost.
- Long cable runs to counters.
- Paddlewheel signal conditioning.
Selection guide
- AMP-1 vs AMP-1-10K
- Open-collector load
- DIN-rail mount
Common mistakes
- Wrong impedance variant for sensor.
- Exceeding 100 mA sink.
- Supply below 11 V.
When to RFQ / what to tell us
- AMP-1 or AMP-1-10K.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 35337 |
| Brand | KEP |
| Model | AMP-1 Signal Conditioner |
| Product type | Signal Conditioner |
| Type | Magnetic pickup / flow transmitter preamplifier (AMP-1) |
| Gain | Amplifies low-level signals >100× for ratemeters/counters |
| Supply | 11–26 VDC at ~30 mA |
| Sensitivity | 20 mV–50 V input class |
| Frequency | Up to 15 kHz class |
| Output | 100 mA open-collector sinking; 2.7 kΩ pull-up |
| Variant | AMP-1-10K: 10 kΩ input impedance for turbine/paddlewheel |
Documents
FAQ
Q: AMP-1-10K? A: 10 kΩ input impedance variant for turbine/paddlewheel.
Q: Max frequency? A: About 15 kHz class.
Q: What should I send for a quote? A: Variant, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | Magnetic pickup / flow transmitter preamplifier (AMP-1) |
| Gain | Amplifies low-level signals >100× for ratemeters/counters |
| Supply | 11–26 VDC at ~30 mA |
| Sensitivity | 20 mV–50 V input class |
| Frequency | Up to 15 kHz class |
| Variant | AMP-1-10K: 10 kΩ input impedance for turbine/paddlewheel |
| Use | Condition magnetic pickup signals over long cable runs |
| Form | DIN-rail / panel signal conditioner module |
| Document | KEP AMP1 datasheet 115_amp1.pdf |
