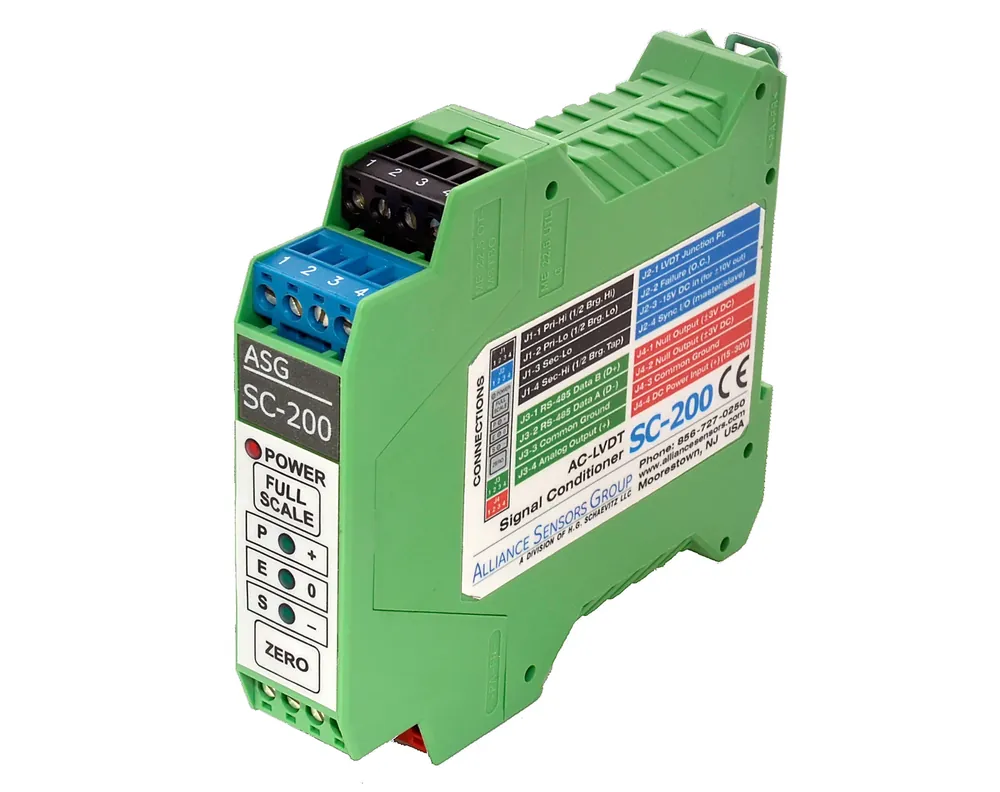

Alliance Sensors Group SC-200 DIN-Rail LVDT Signal Conditioner
Quote on request
No online payment · add lines to RFQ BOM
Alliance SC-200: DIN-rail LVDT/RVDT conditioner; 2.5–10 kHz; multi V/mA outs. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Alliance Sensors Group SC-200 DIN-rail AC-LVDT / RVDT / LVRT signal conditioner
Sensor Range
Works with LVDT/RVDT/half-bridge sensors outputting about 50 to 5000 mVrms at full scale
Excitation
2.5 / 5 / 7.5 / 10 kHz selectable; about 3.0 Vrms push-pull drive default
Analog Outputs
Selectable 0-5 V, 1-5 V, 0.5-4.5 V, 0.5-9.5 V, 0-10 V, +/-10 V, 0-20 mA, 4-20 mA
Power
+15 to +30 V DC (+24 V nominal), 100 mA max at 24 V; bipolar +/-15 V option for some outputs
Linearity
Output non-linearity <= +/-0.025% of full span output
Fits AC-LVDT signal conditioning where you need an Alliance Sensors Group SC-200. DIN-rail conditioner for LVDT/RVDT/LVRT and half-bridge sensors outputting about 50–5000 mVrms at full scale, selectable excitation 2.5/5/7.5/10 kHz (~3.0 Vrms push-pull default), selectable 0–5/0–10/±10 V and 0/4–20 mA outputs, powered +15 to +30 V DC (+24 V nominal).
Key advantages
- Sensors — LVDT / RVDT / half-bridge
- Excitation — 2.5–10 kHz selectable
- Outputs — Multi V and 0/4–20 mA
- Power — +15…+30 V DC (+24 nom.)
- Mount — DIN-rail
Typical applications
- LVDT panel conditioning.
- Machine position signal convert.
- DIN-rail AC sensor fronts.
Selection guide
- Excitation freq
- Output type
- Sensor mVrms
Common mistakes
- Wrong excitation.
- Sensor mVrms out of 50–5000.
- Bipolar supply mismatch.
When to RFQ / what to tell us
- Excitation/output.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 49004 |
| Brand | Alliance Sensors Group |
| Model | SC-200 LVDT Signal Conditioner |
| Product type | Signal Conditioner |
| Type | Alliance Sensors Group SC-200 DIN-rail AC-LVDT / RVDT / LVRT signal conditioner |
| Sensor range | Works with LVDT/RVDT/half-bridge sensors outputting about 50 to 5000 mVrms at full scale |
| Excitation | 2.5 / 5 / 7.5 / 10 kHz selectable; about 3.0 Vrms push-pull drive default |
| Analog outputs | Selectable 0-5 V, 1-5 V, 0.5-4.5 V, 0.5-9.5 V, 0-10 V, +/-10 V, 0-20 mA, 4-20 mA |
| Power | +15 to +30 V DC (+24 V nominal), 100 mA max at 24 V; bipolar +/-15 V option for some outputs |
Documents
FAQ
Q: Excitation? A: 2.5/5/7.5/10 kHz selectable.
Q: Power? A: +15 to +30 V DC.
Q: What should I send for a quote? A: Excitation/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | Alliance Sensors Group SC-200 DIN-rail AC-LVDT / RVDT / LVRT signal conditioner |
| Sensor Range | Works with LVDT/RVDT/half-bridge sensors outputting about 50 to 5000 mVrms at full scale |
| Excitation | 2.5 / 5 / 7.5 / 10 kHz selectable; about 3.0 Vrms push-pull drive default |
| Analog Outputs | Selectable 0-5 V, 1-5 V, 0.5-4.5 V, 0.5-9.5 V, 0-10 V, +/-10 V, 0-20 mA, 4-20 mA |
| Power | +15 to +30 V DC (+24 V nominal), 100 mA max at 24 V; bipolar +/-15 V option for some outputs |
| Linearity | Output non-linearity <= +/-0.025% of full span output |
| Temperature | Operating -20 to 75 C; tempco about +/-0.0025% FSO/deg C |
| Comms | Half-duplex RS-485 for remote setup and hot-swap parameter transfer |
| Features | Front-panel zero/full-scale push-button calibration; differential input; cybersecurity lock; fault diagnostics |
| Document | Alliance Sensors SC-200 datasheet + SC-200 manual 5700-0016 (alliancesensors.com) |
