Monarch Instrument

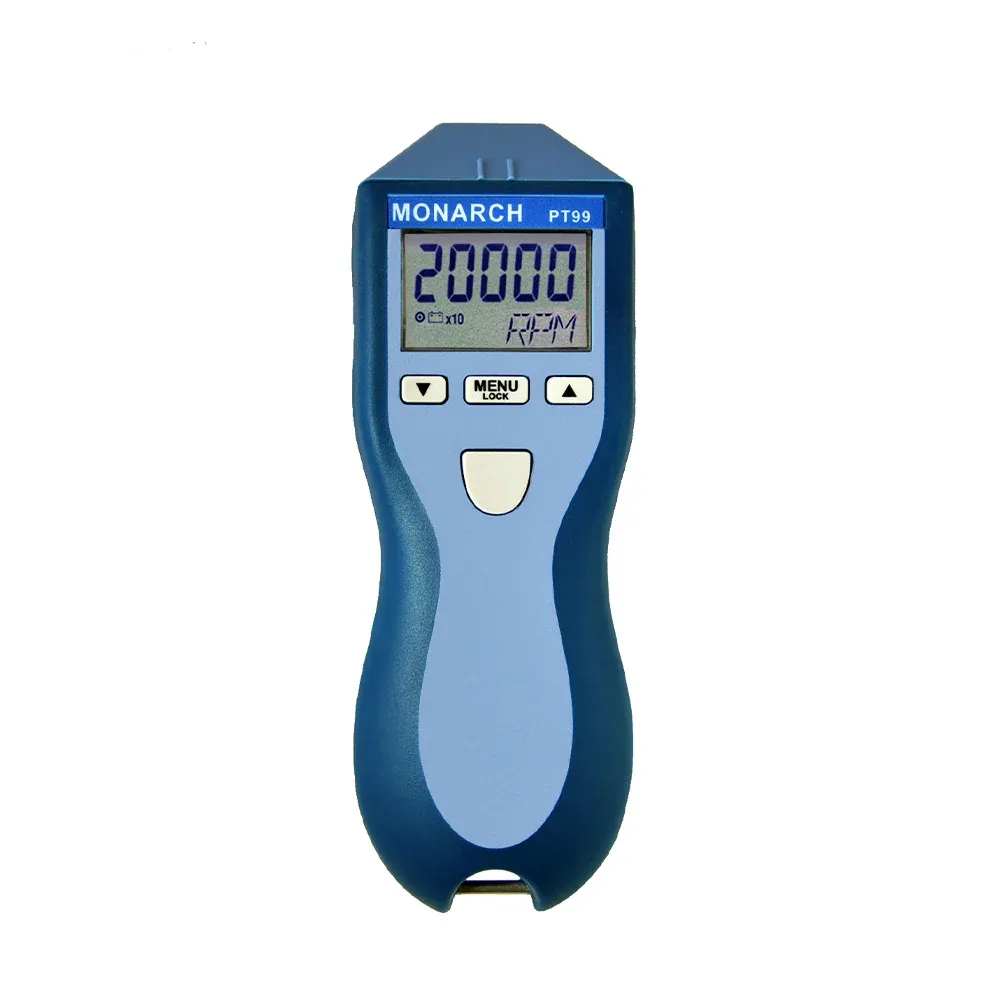

Monarch Pocket Tach 99 Noncontact Tachometer
Quote on request
No online payment · add lines to RFQ BOM
Optical tach 5–99,999 RPM; ±0.01%; Max/Min/Last. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±0.01% of reading or ±1 digit
Display
5 digits + 5 alphanumeric LCD; red LED light source (not laser)
Type
Noncontact optical tachometer (Pocket Tach 99 / PT99)
Speed Range
5 to 99,999 RPM
Resolution
Auto-ranging 0.001 RPM to 1.0 RPM
Operating Range
≤36 in (91.44 cm) at ≤30° off perpendicular
Fits handheld noncontact RPM checks where you need a Monarch Pocket Tach 99 (PT99) optical tachometer covering 5 to 99,999 RPM with ±0.01% accuracy and Max/Min/Last memory.
Key advantages
- Range — 5 to 99,999 RPM
- Accuracy / resolution — ±0.01% of reading or ±1 digit; auto-ranging 0.001 to 1.0 RPM
- Optics — Red LED light source (not laser); ≤36 in at ≤30° off perpendicular
- Memory — Maximum, Minimum, and Last Reading
- Power — 2× AA; ~60 h continuous typical
Typical applications
- Machine RPM checks with reflective tape.
- Maintenance routes needing Max/Min capture.
- Sites preferring LED over Class 2 laser.
Selection guide
- LED vs laser — PT99 LED vs PLT200 laser reach
- Distance / angle — ≤36 in / ≤30°
- Memory needs — Max/Min/Last
- Power — AA alkaline life
Common mistakes
- Expecting laser range of PLT200.
- Working beyond 30° off perpendicular.
- Missing reflective target tape.
When to RFQ / what to tell us
- Accessories/tape; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 23659 |
| Brand | Monarch Instrument |
| Model | Pocket Tach 99 |
| Product type | Tachometer |
| Type | Noncontact optical tachometer (Pocket Tach 99 / PT99) |
| Speed range | 5 to 99,999 RPM |
| Accuracy | ±0.01% of reading or ±1 digit |
| Resolution | Auto-ranging 0.001 RPM to 1.0 RPM |
| Operating range | ≤36 in (91.44 cm) at ≤30° off perpendicular |
| Memory | Maximum, Minimum, and Last Reading |
| Display | 5 digits + 5 alphanumeric LCD; red LED light source (not laser) |
| Power | 2× AA 1.5 V alkaline; ~60 h continuous typical |
| Dimensions | 6.92 × 2.4 × 1.6 in (17.58 × 6.10 × 4.06 cm) |
Documents
FAQ
Q: Laser? A: No — red LED optical source (not laser).
Q: Range? A: 5 to 99,999 RPM.
Q: What should I send for a quote? A: Accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±0.01% of reading or ±1 digit |
| Display | 5 digits + 5 alphanumeric LCD; red LED light source (not laser) |
| Type | Noncontact optical tachometer (Pocket Tach 99 / PT99) |
| Speed Range | 5 to 99,999 RPM |
| Resolution | Auto-ranging 0.001 RPM to 1.0 RPM |
| Operating Range | ≤36 in (91.44 cm) at ≤30° off perpendicular |
| Memory | Maximum, Minimum, and Last Reading |
| Power | 2× AA 1.5 V alkaline; ~60 h continuous typical |
| Dimensions | 6.92 × 2.4 × 1.6 in (17.58 × 6.10 × 4.06 cm) |
| Document | Monarch PT99 datasheet + operator manual |
